Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  3. Remove the steering wheel control switch by gently pulling it away from the steering wheel.
  4. Disconnect the steering wheel control switch electrical connector.
  5. Remove the steering wheel control switch from the steering wheel.

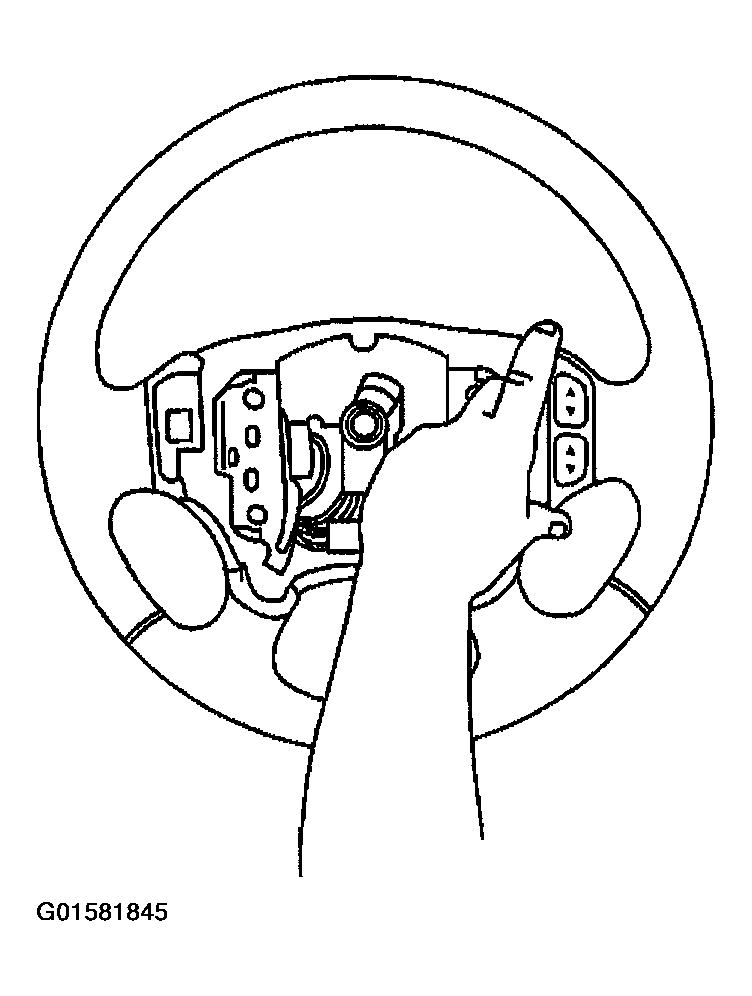

    Fig 1: Removing Steering Wheel Control Switch
    G01581845Courtesy of GENERAL MOTORS CORP.
