Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the steering wheel control switch.
  2. Align the steering control switch engagement tabs to the steering wheel.
  3. Push in on the steering wheel control switch in order to secure the steering wheel control switch to the steering wheel.
  4. Install the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  5. Enable the SIR. Refer to ACTIVATING SYSTEM .

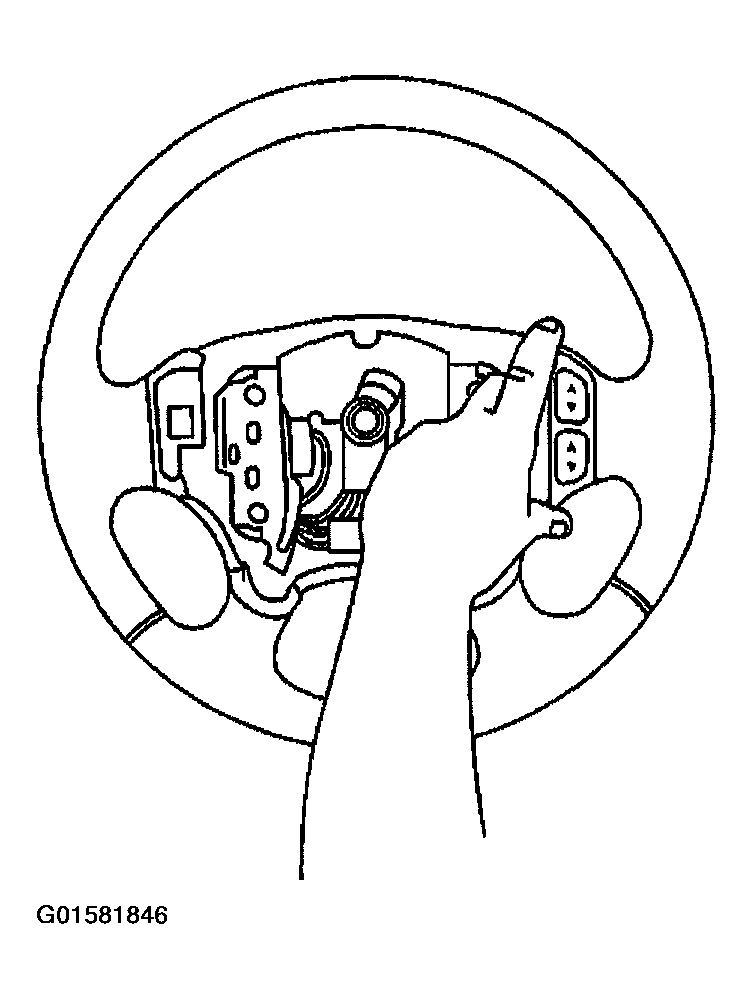

    Fig 1: Installing Steering Wheel Control Switch
    G01581846Courtesy of GENERAL MOTORS CORP.
