Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster bezel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Remove the fog lamp switch and cargo switch from the housing.
  3. Disconnect the electrical connector(s) from the fog lamp switch.
  4. Remove the fog lamp and cargo lamp switch from the housing.

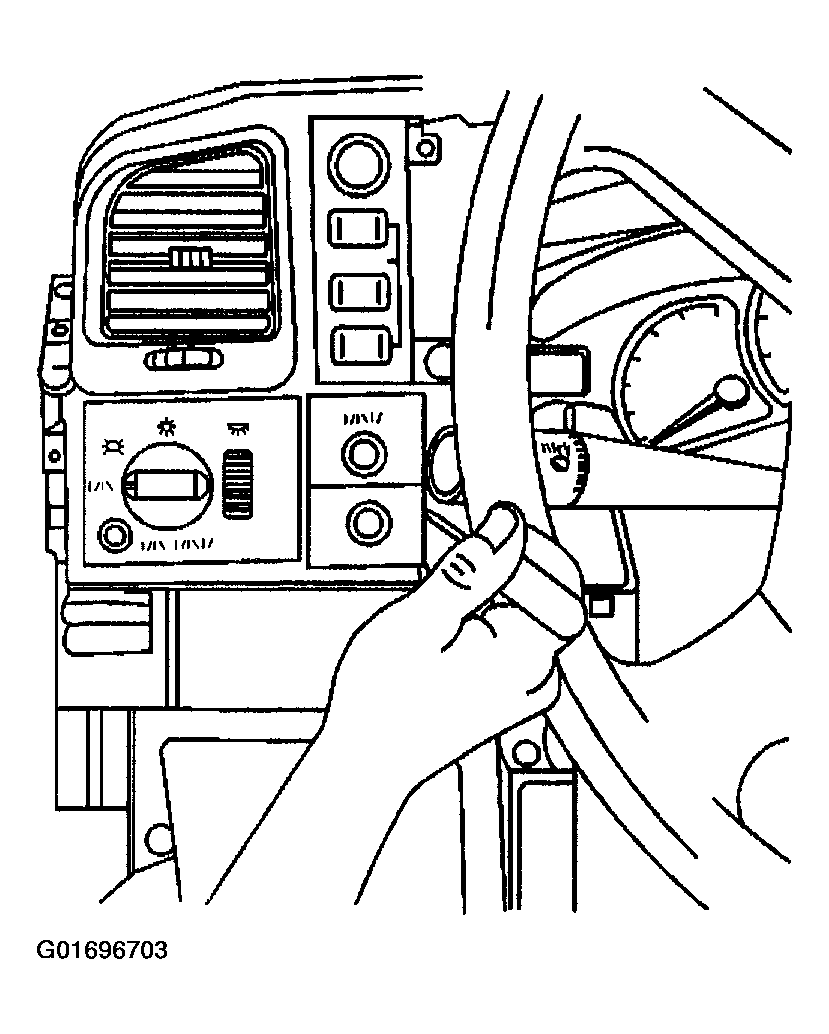

    Fig 1: Removing Fog Lamp & Cargo Lamp Switch
    G01696703Courtesy of GENERAL MOTORS CORP.
