Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector(s) to the fog lamp and cargo lamp switch.
  2. Install the fog lamp switch into the housing.
  3. Install the IP trim bezel to the instrument panel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

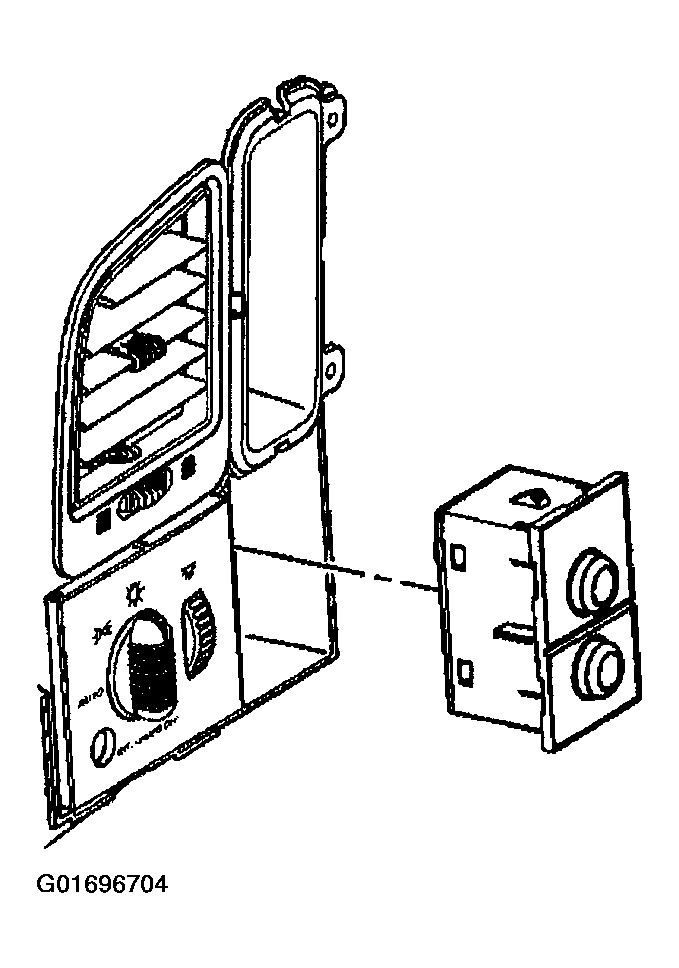

    Fig 1: Installing Fog Lamp & Cargo Lamp Switch
    G01696704Courtesy of GENERAL MOTORS CORP.
