Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT (NON-LUXURY) or KNEE BOLSTER REPLACEMENT (LUXURY) .

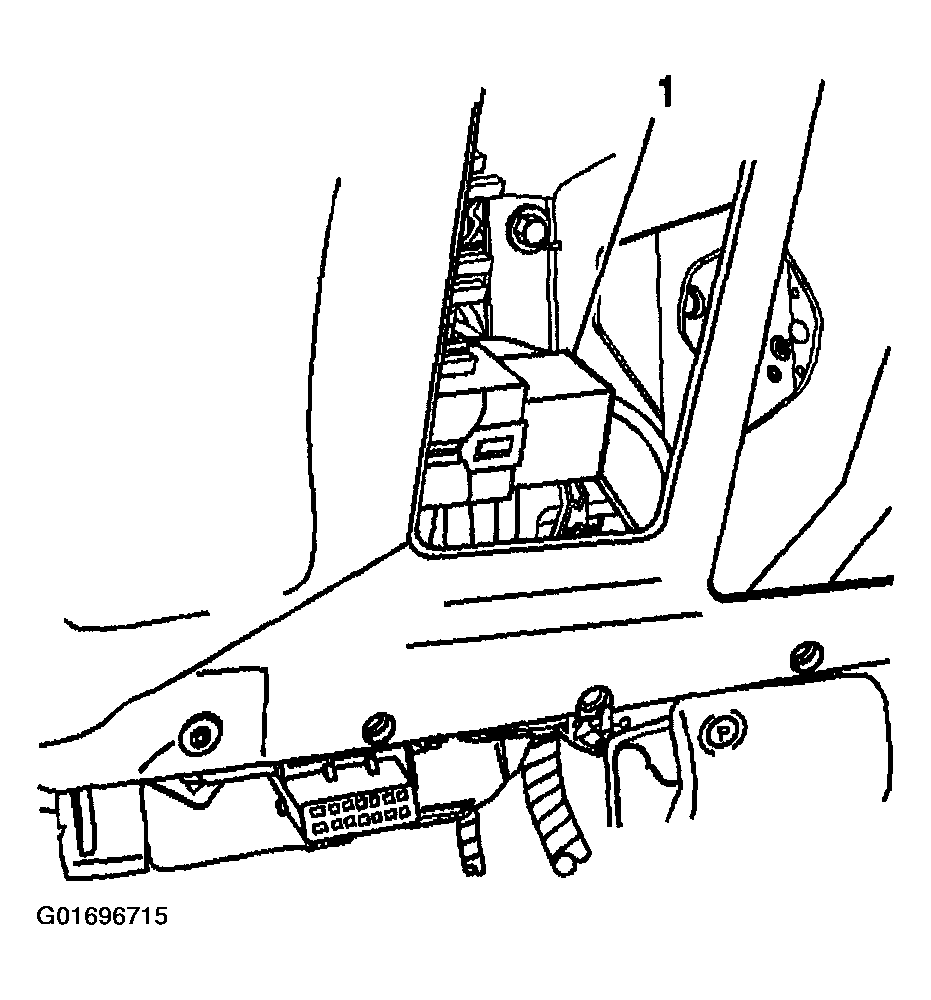

    2. Fig 1: Hazard & Turn Signal Flasher
    G01696715Courtesy of GENERAL MOTORS CORP.
  2. On the back side of the fuse block release the retainer while pulling the flasher (1) outwards.
  3. Remove the flasher (1) from the fuse block.
