Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER .
  2. Pull out the accessary switch housing.
  3. Disconnect the electrical connectors.
  4. Remove the fog lamp switch from the accessary switch housing.

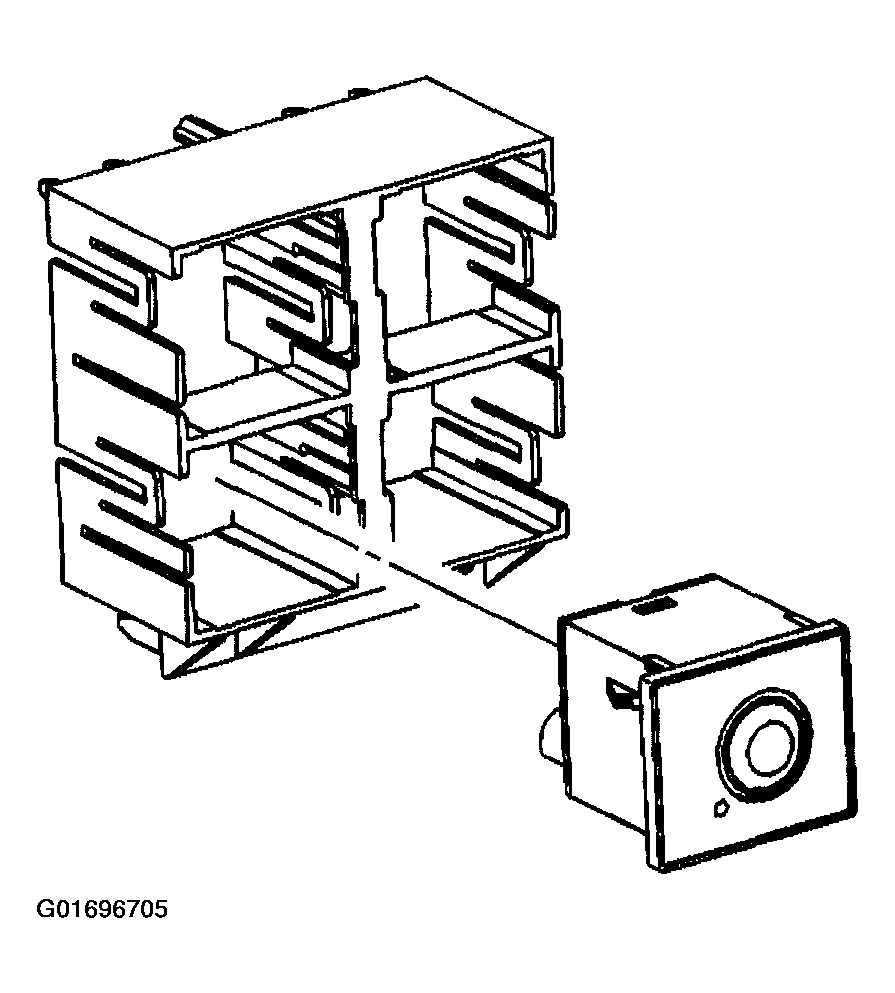

    Fig 1: Rear Fog Lamp Switch
    G01696705Courtesy of GENERAL MOTORS CORP.
