Fuel Level Specifications

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The values in the table are approximate values based on information obtained from properly operating vehicles. Actual results may vary slightly.

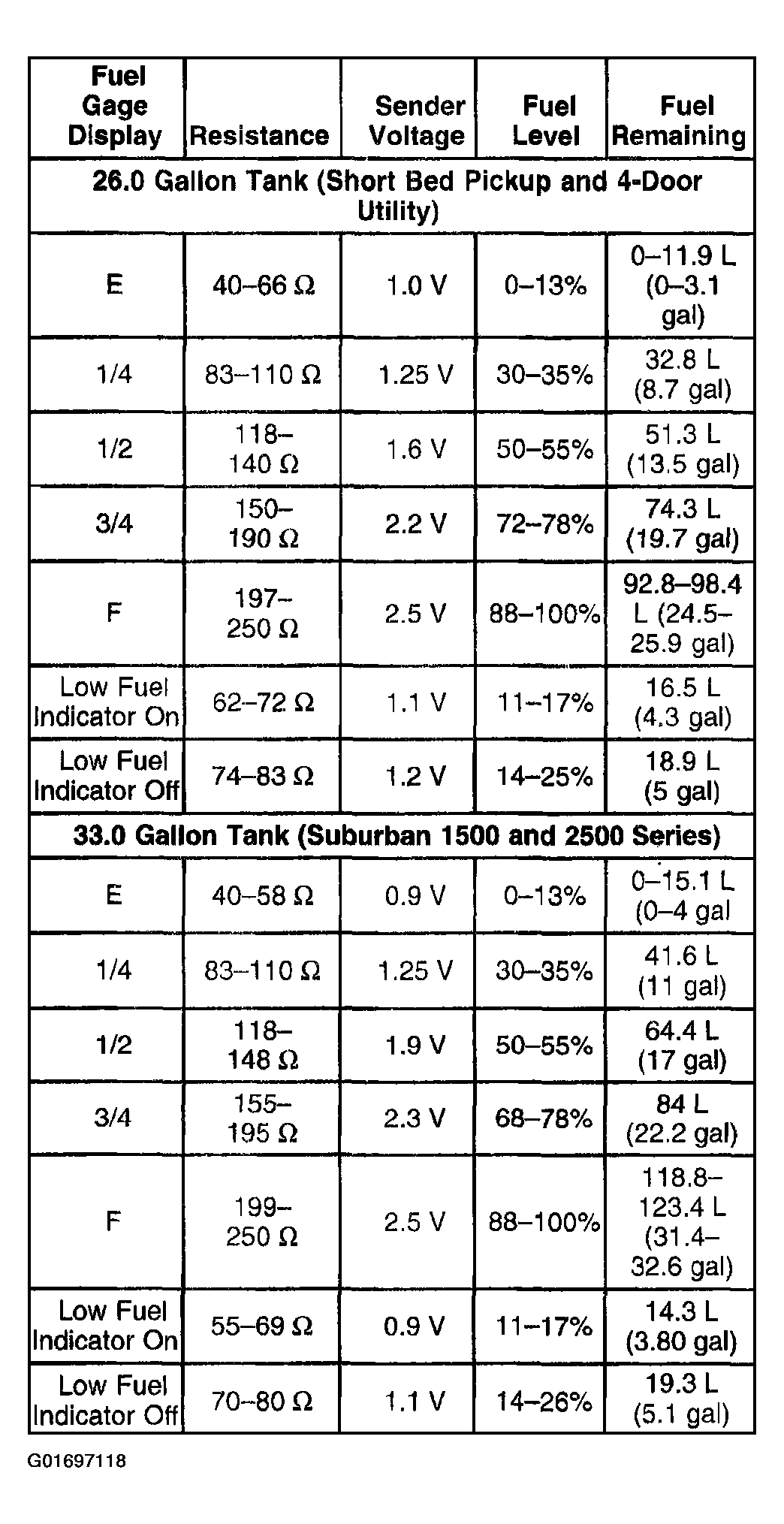

Fig 1: Fuel Level Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

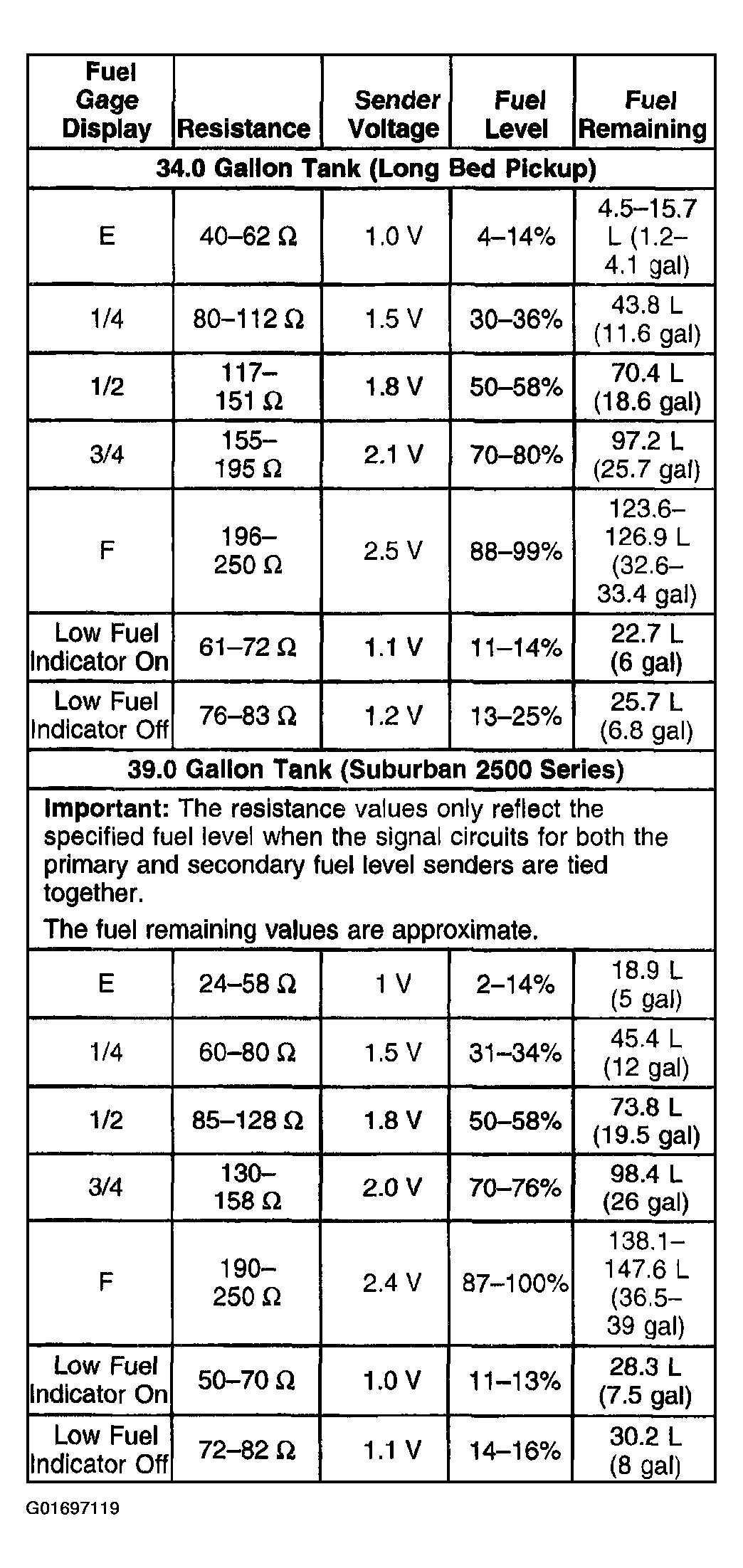

Fig 2: Fuel Level Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
