Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console compartment door from the center console. Refer to Door Replacement - Console Compartment .
  2. Place the compartment door on a work bench.
  3. Remove the 11 retaining screws.

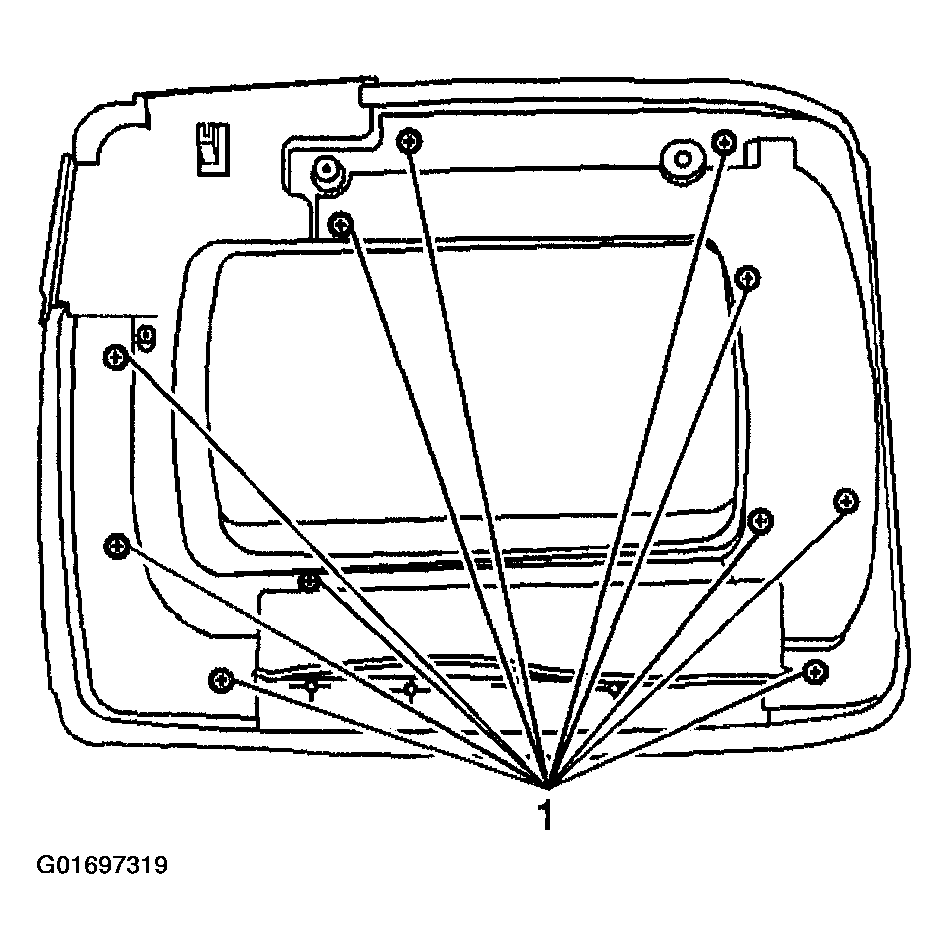

    4. Fig 1: Locating 11 Lock Cylinder Retaining Screws
    G01697319Courtesy of GENERAL MOTORS CORP.
  4. Remove the inside panel to gain access to the lock cylinder.
  5. Remove the lock cylinder retaining clip (1) from the latch assembly.

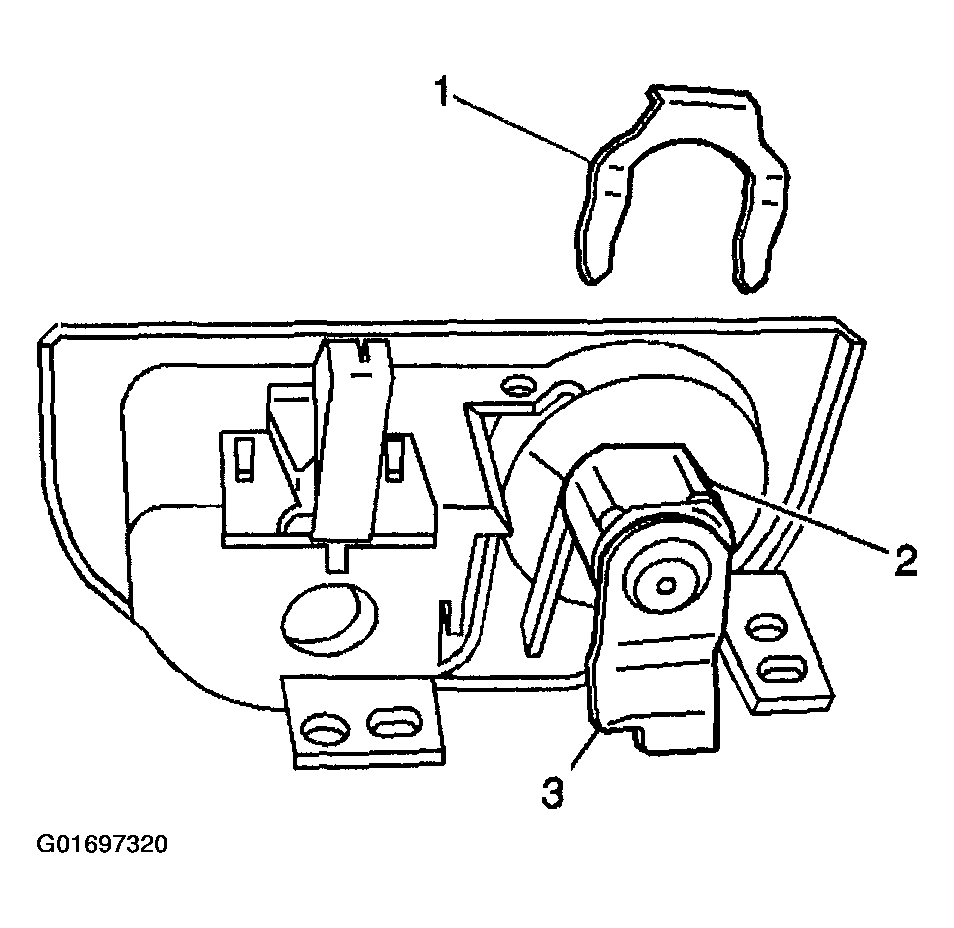

    6. Fig 2: Removing Lock Cylinder Retaining Clip & Latch Assembly
    G01697320Courtesy of GENERAL MOTORS CORP.
  6. Remove the lock cylinder from the latch assembly by pressing outwards.
