Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP cluster trim plate bezel. Refer to Bezel Replacement - IP Cluster .
  2. Move the IP extension rearwards. Refer to IP Extension Replacement (Luxury)  or IP Extension Replacement (Non-Luxury)  .

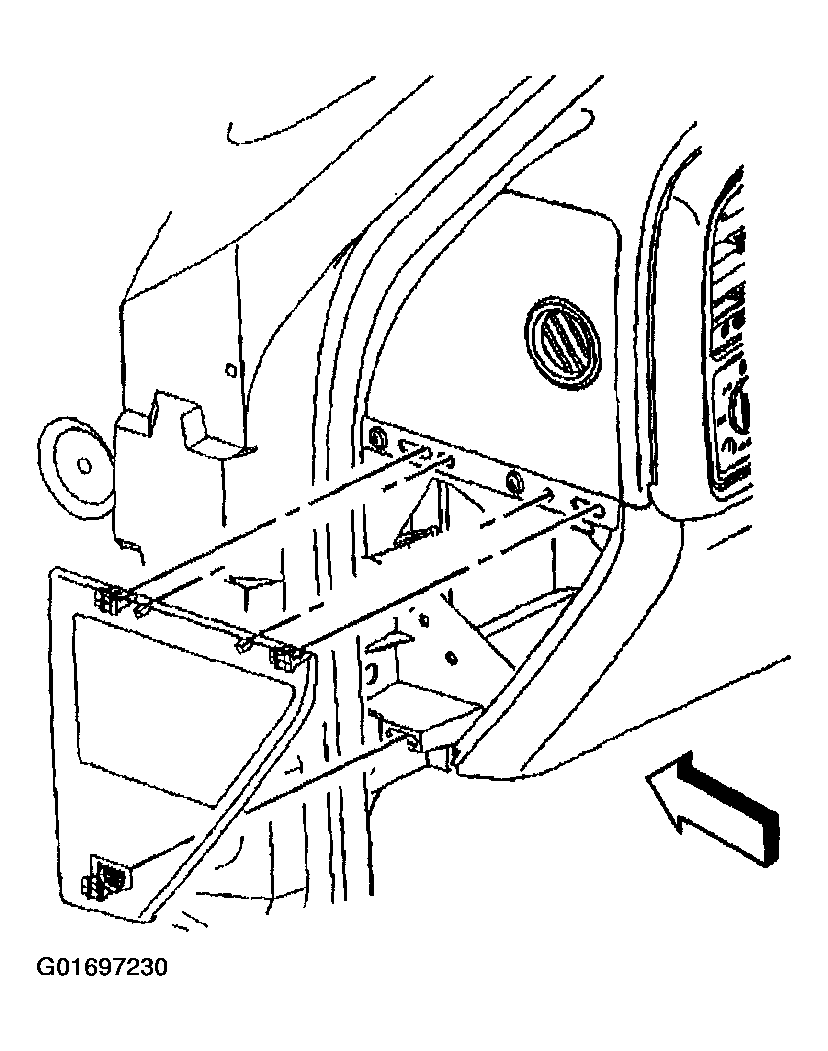

    3. Fig 1: Removing Trim Plate Bezel (Luxury)
    G01697230Courtesy of GENERAL MOTORS CORP.
  3. Remove the knee bolster screws.
  4. Unsnap the top of the knee bolster from the IP assembly

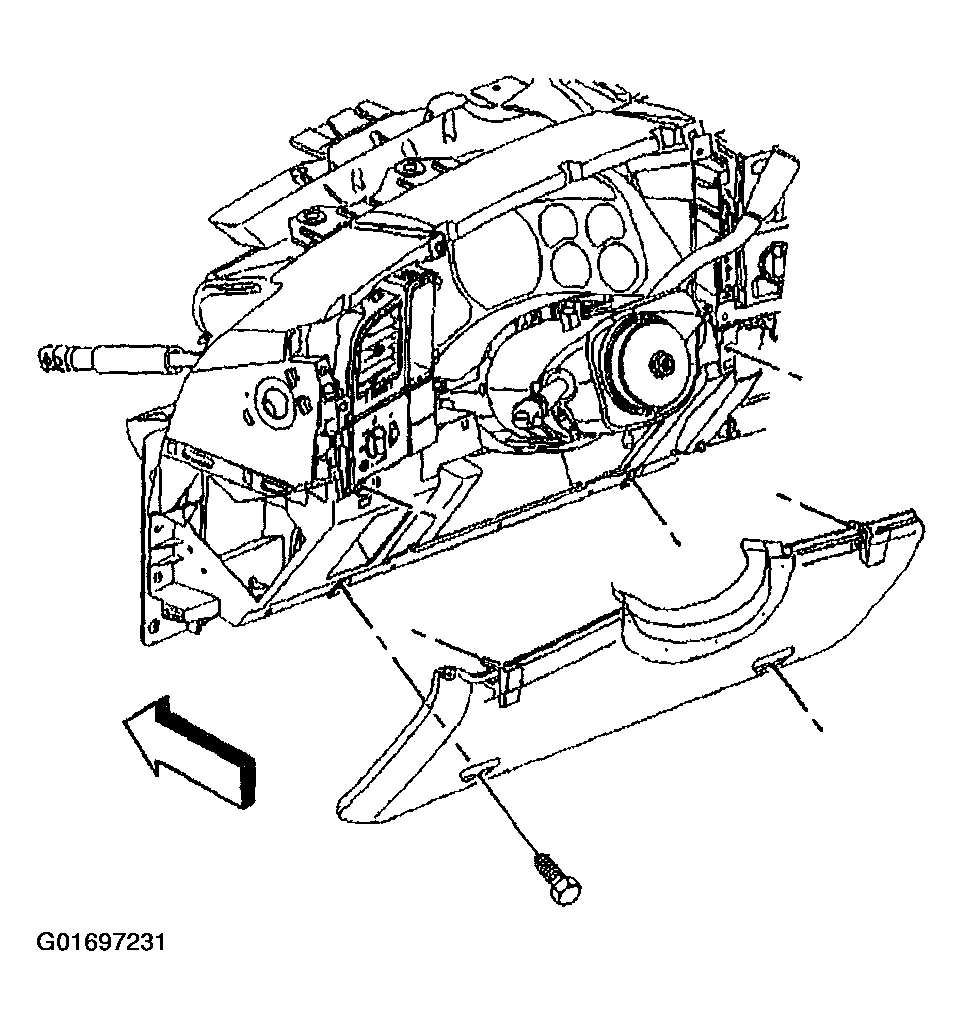

    5. Fig 2: Locating Knee Bolster Screws (Luxury)
    G01697231Courtesy of GENERAL MOTORS CORP.
