Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Instrument Panel (IP) cluster trim plate bezel. Refer to Bezel Replacement - IP Cluster .
  2. Remove the screws that retain the IP cluster to the IP assembly.

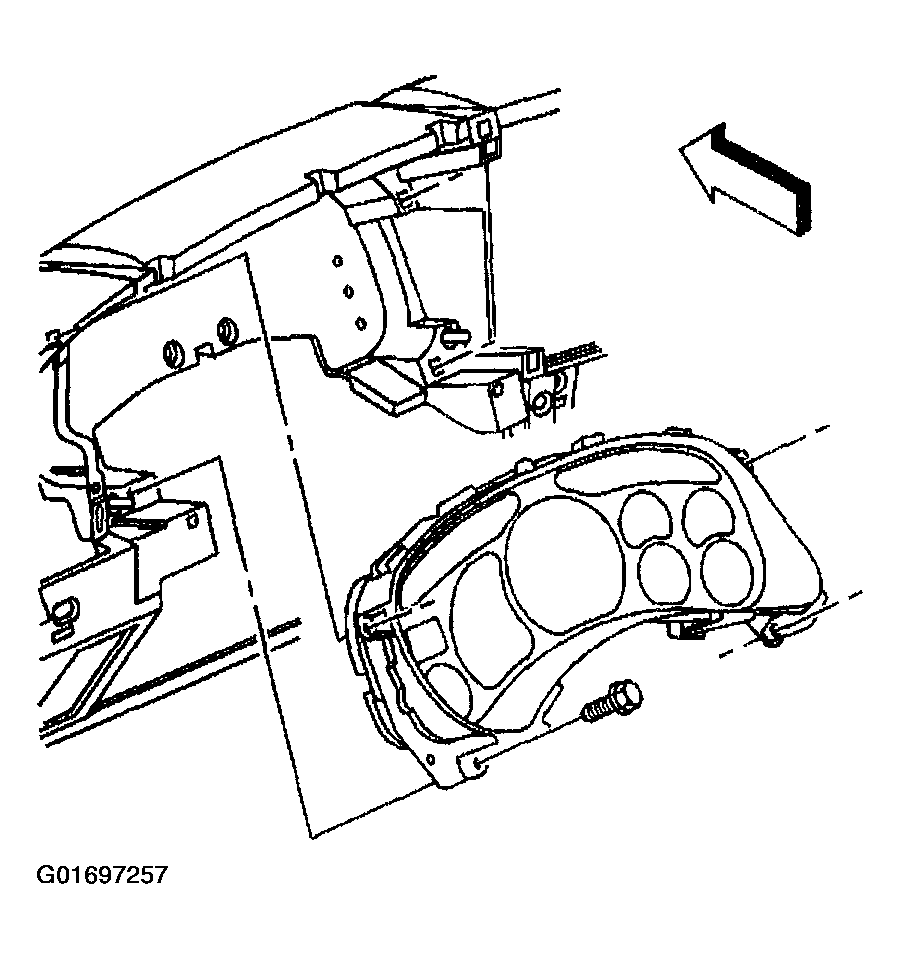

    3. Fig 1: Locating IP Cluster Retaining Screws
    G01697257Courtesy of GENERAL MOTORS CORP.
  3. Remove the IP cluster from the vehicle by tilting the bottom of the cluster outward.
  4. Disconnect the IP cluster harness from the IP cluster.

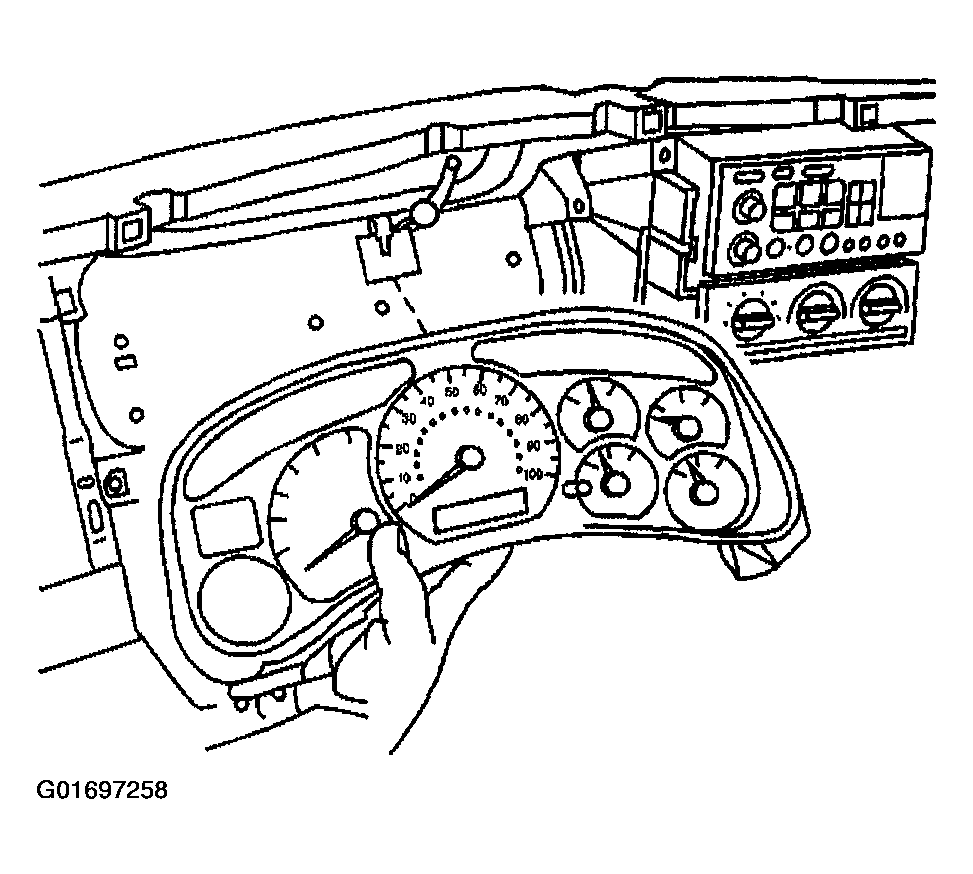

    5. Fig 2: Disconnecting IP Cluster Harness
    G01697258Courtesy of GENERAL MOTORS CORP.
