Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  2. Unclip the IP cluster rear cover plate by prying gently on the tabs with a screwdriver.

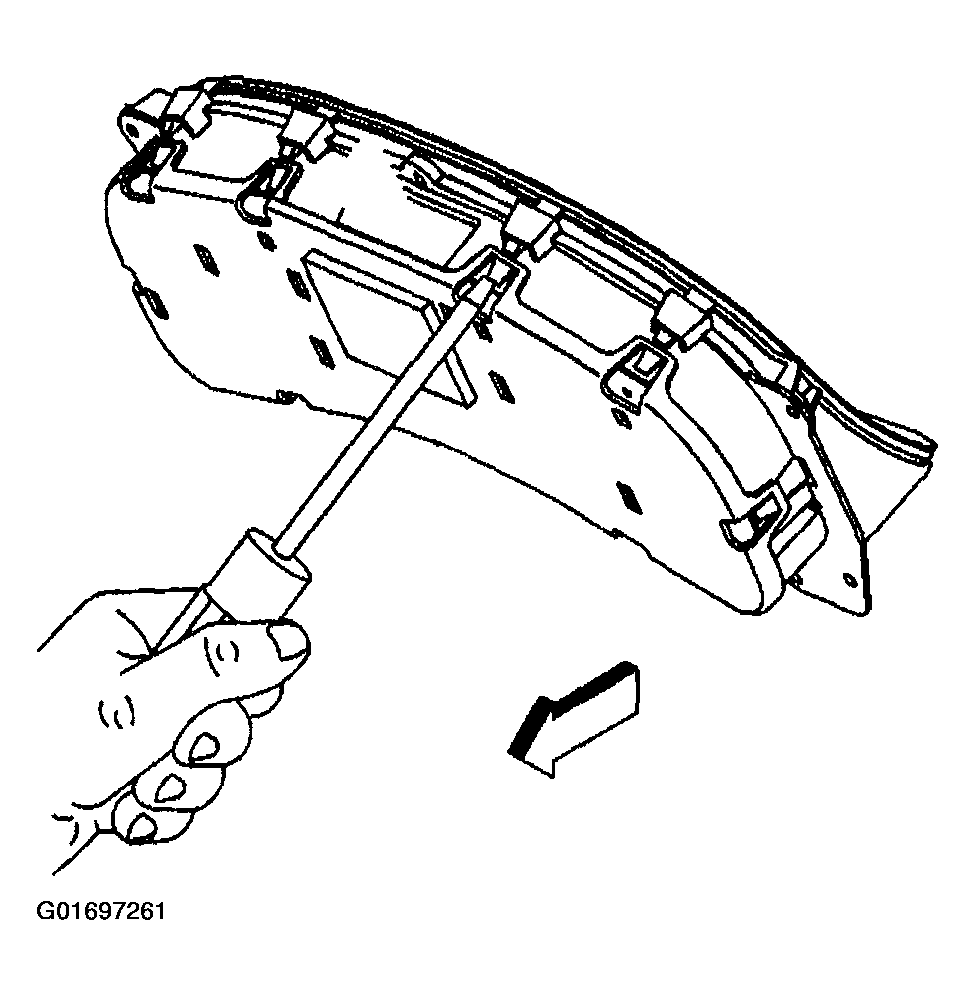

    3. Fig 1: Locating Rear Cover Plate Tabs
    G01697261Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear cover plate from the IP cluster.

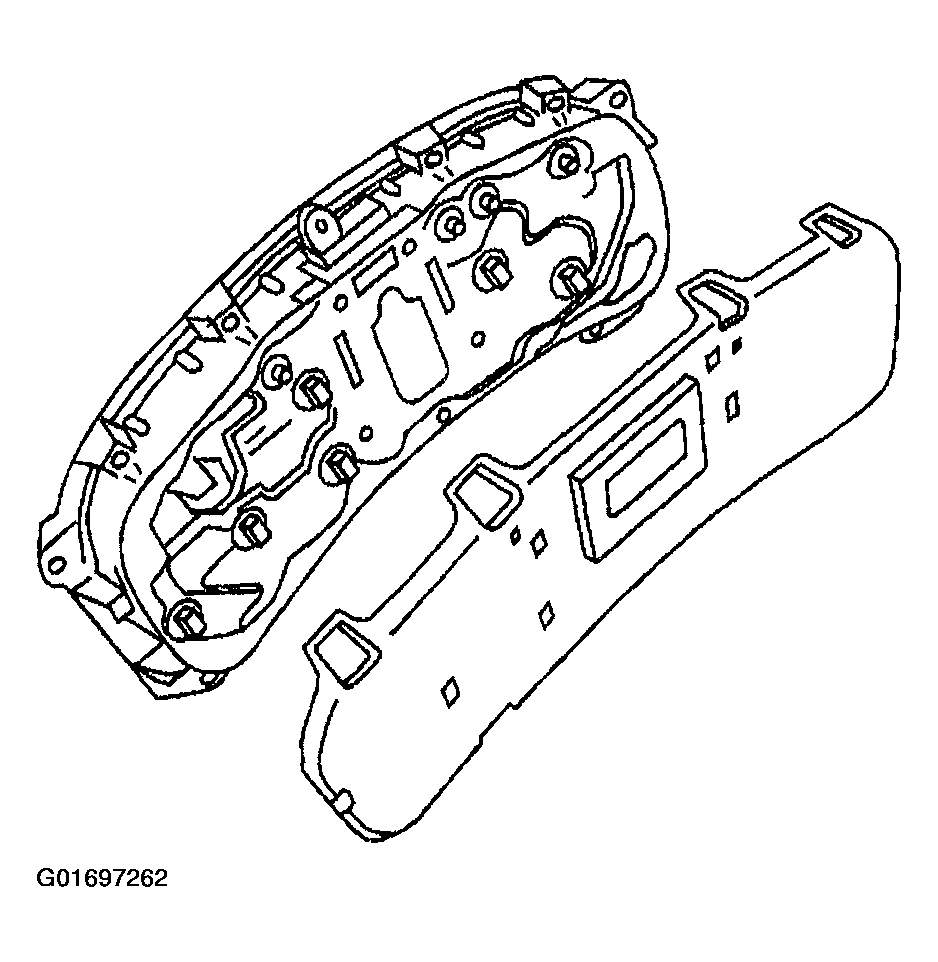

    4. Fig 2: Removing Rear Cover Plate
    G01697262Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb and base assembly by turning the bulb 1/2 turn counter clockwise and pulling outward.
  5. Remove the bulb from the base by pulling outward.

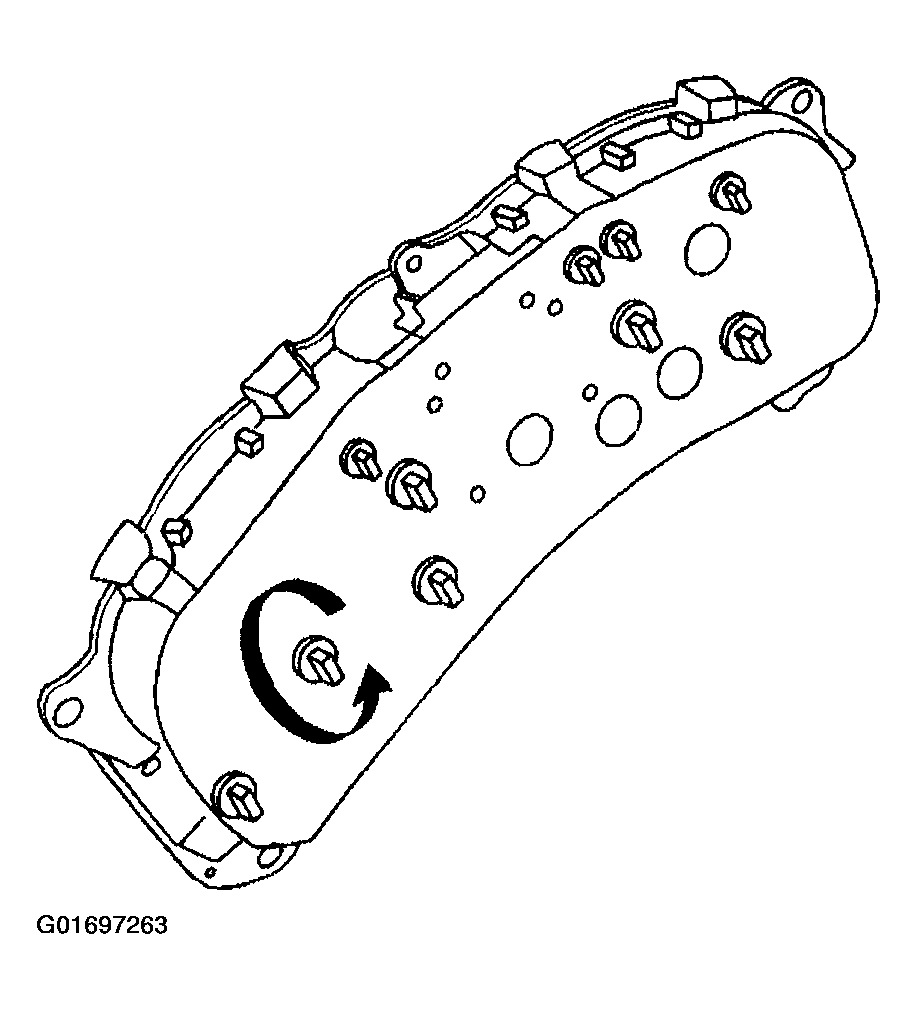

    6. Fig 3: Locating Cluster Lamp Bulb For Removal
    G01697263Courtesy of GENERAL MOTORS CORP.
