Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the SDM module. Refer to AIR BAG MODULES .
  2. Remove the door sill plate. Refer to DOOR SILL PLATE REPLACEMENT - FRONT or DOOR SILL PLATE REPLACEMENT - REAR .
  3. Remove the instrument panel. Refer to IP Carrier Replacement .
  4. Remove the HVAC duct. Refer to Air Distributor Duct Replacement .
  5. Disconnect the electrical connectors.
  6. Disengage the harness mounting clips.
  7. Remove the harness from the vehicle.

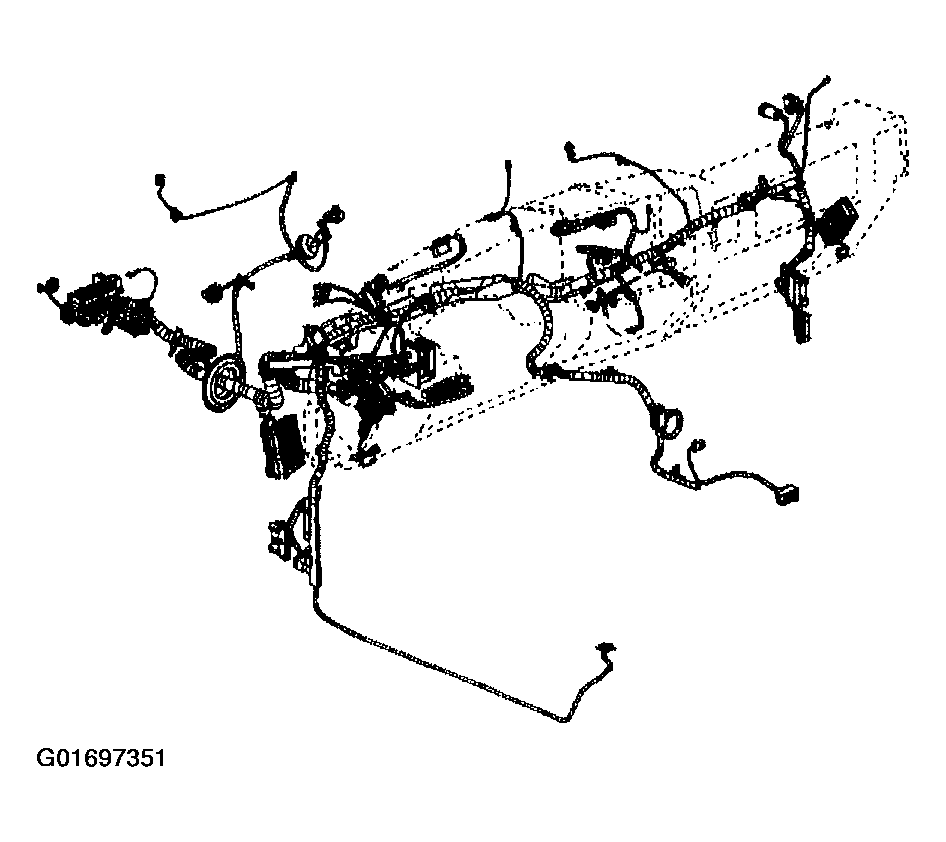

    8. Fig 1: Locating IP Harness/Electrical Connectors
    G01697351Courtesy of GENERAL MOTORS CORP.
