Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both the passenger side air deflector louvers. Refer to Deflector Replacement - Instrument Panel Air - Right Vent .
  2. Press the release tabs on the instrument panel assist handle retainers on both sides.
  3. Pull the assist handle from the instrument panel.

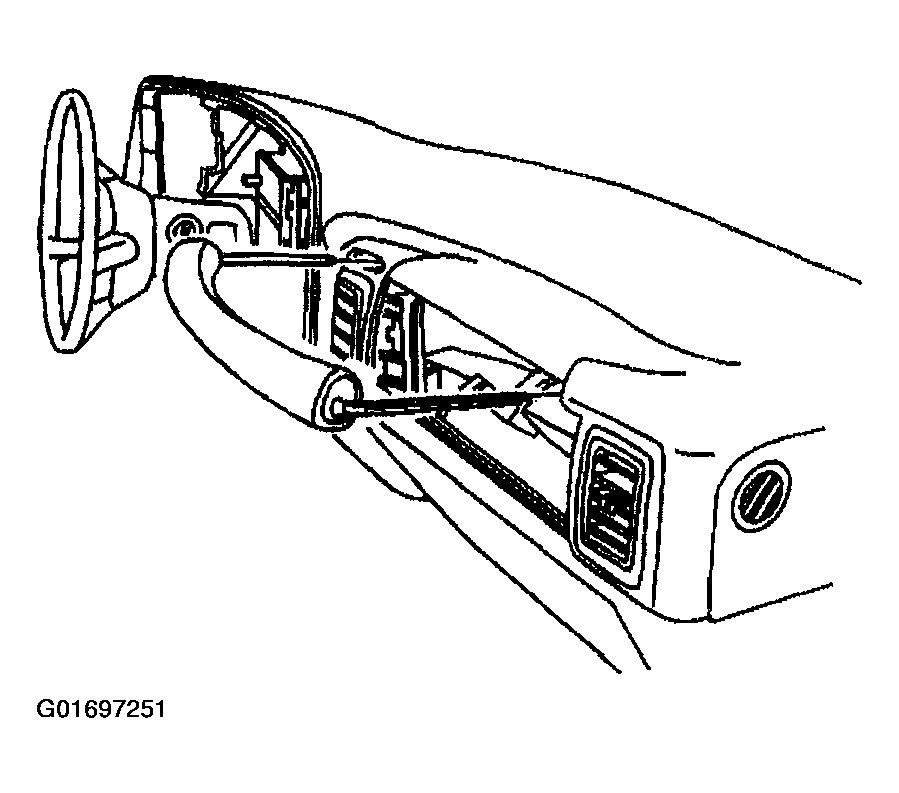

    4. Fig 1: Locating/Removing Assist Handle
    G01697251Courtesy of GENERAL MOTORS CORP.
