Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

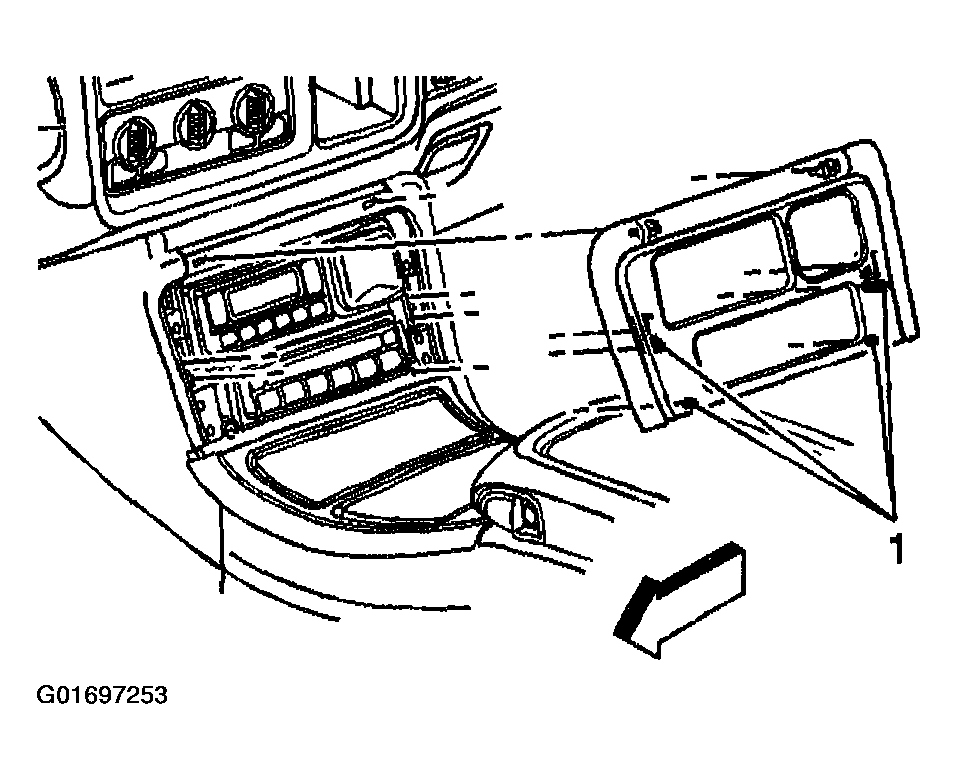

Remove the floor console upper bezel by firmly grabbing and pulling outwards.

Fig 1: Locating Floor Console Upper Bezel For Removal

Courtesy of GENERAL MOTORS CORP.

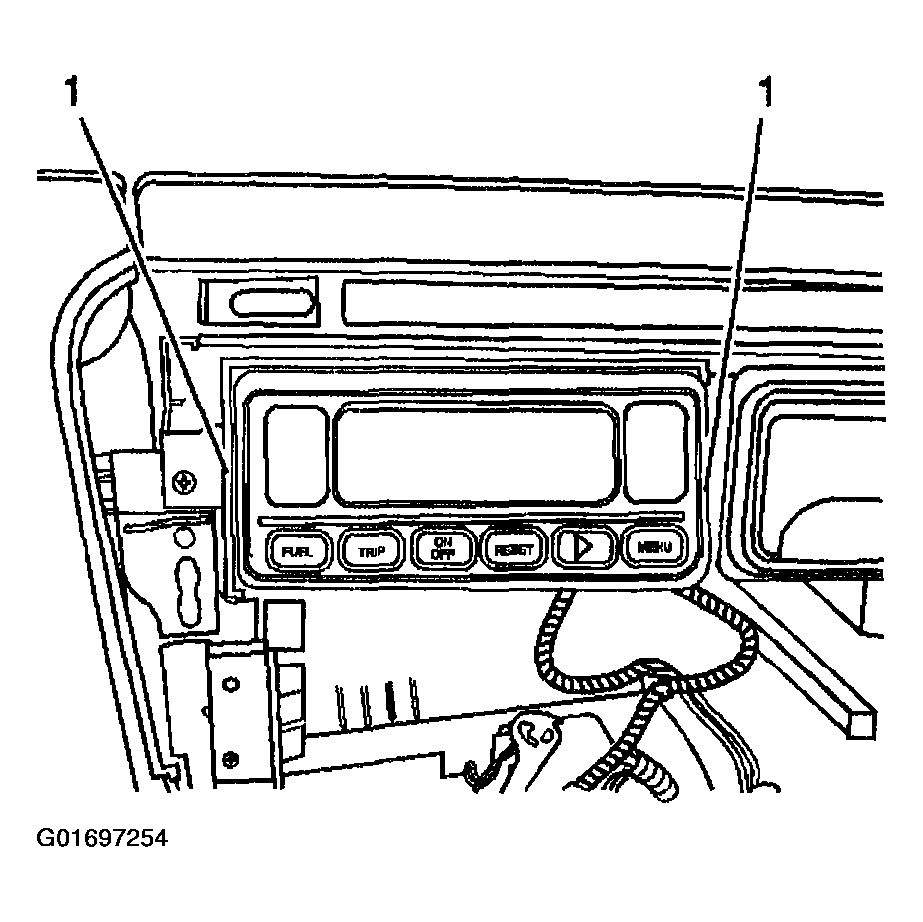

Insert a flat bladed tool at the edge (1) of the DIC in order to pry out the DIC.
Disconnect the electrical connector from the DIC.
Remove the DIC from the console.

Fig 2: Removing DIC From The Console

Courtesy of GENERAL MOTORS CORP.
