Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the DIC.
  2. Install the DIC in the opening until the unit clicks into place.

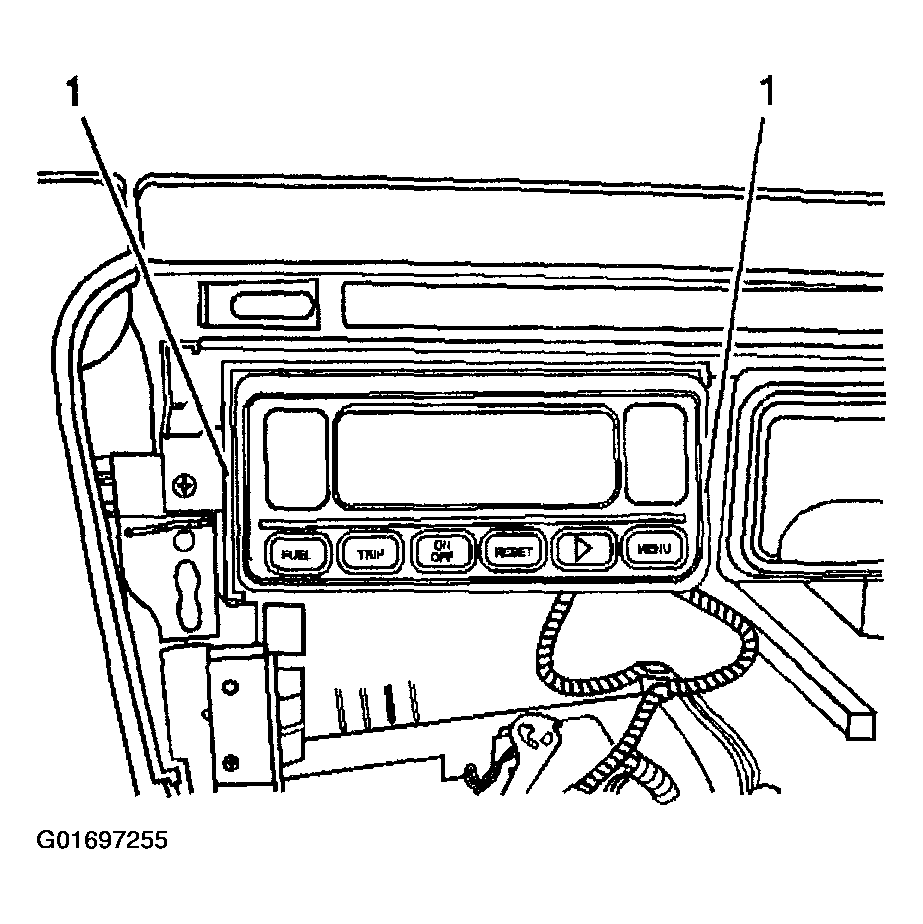

    3. Fig 1: Installing DIC To The Console
    G01697255Courtesy of GENERAL MOTORS CORP.
  3. Align the locating pins (1).
  4. Install the upper bezel by pushing on the bezel until the unit is fully seated.

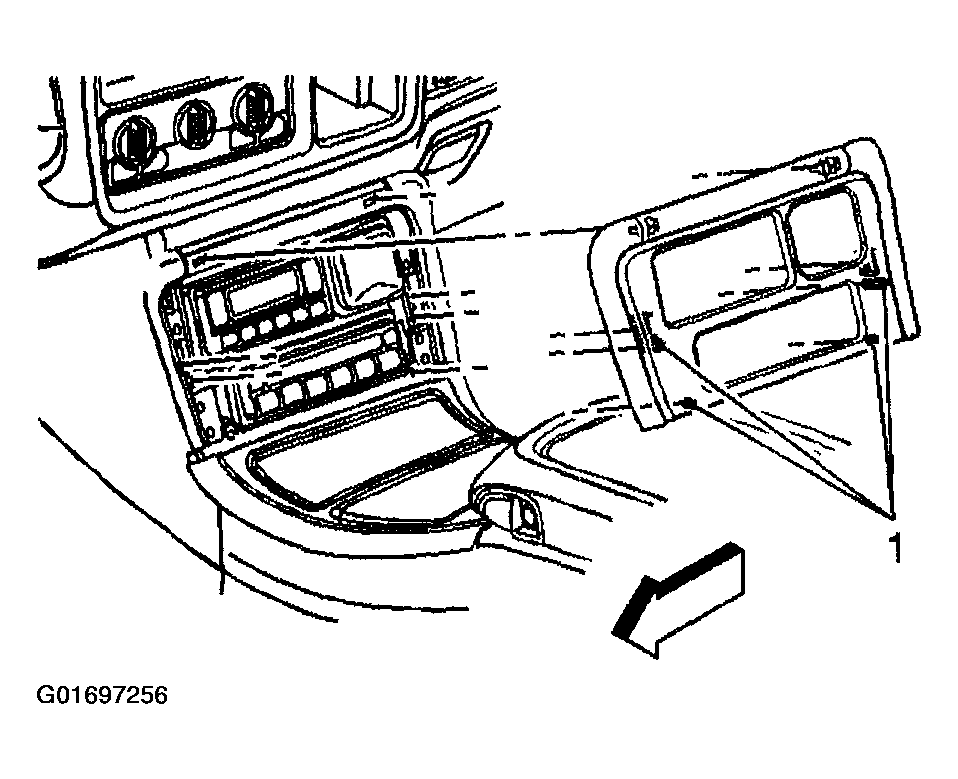

    5. Fig 2: Installing Upper Bezel
    G01697256Courtesy of GENERAL MOTORS CORP.
