Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console door assembly to the hinge.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the console door assembly screws (1). Tighten the screws to 1.6 N.m (14 lbs in).

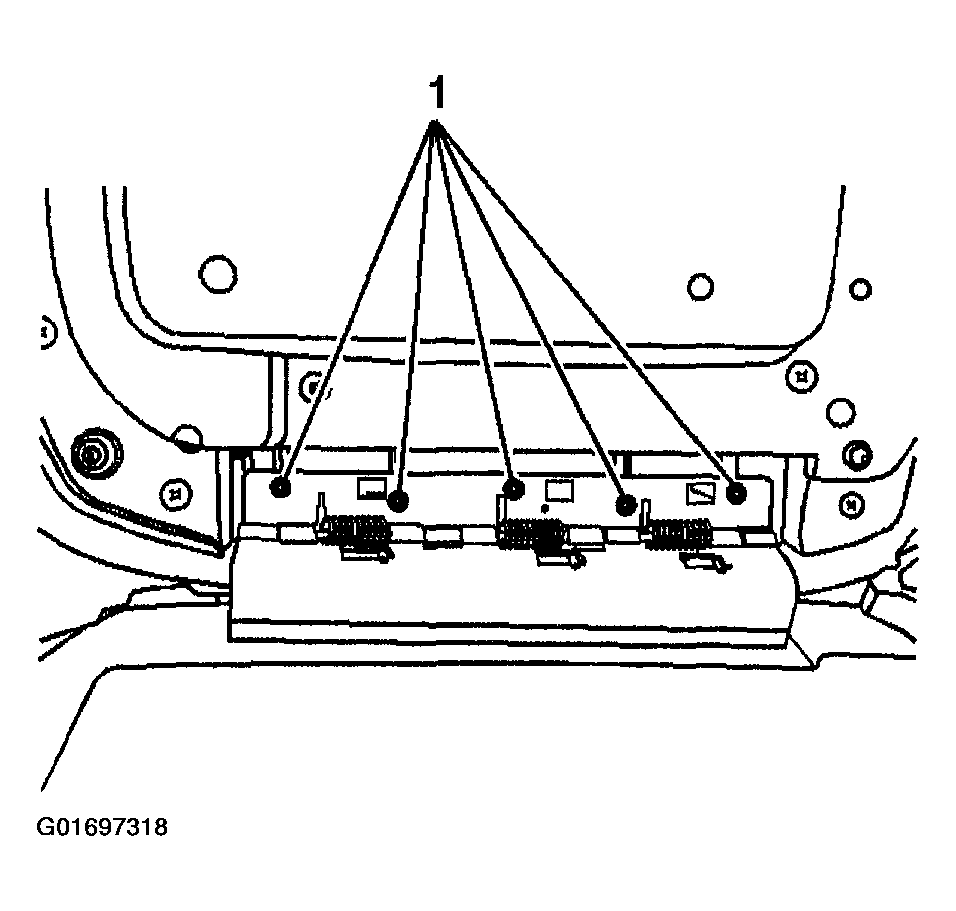

    3. Fig 1: Installing Console Door Screws
    G01697318Courtesy of GENERAL MOTORS CORP.
  3. Install the hinge cover, if equipped.
  4. Install the console storage bin, if equipped. Refer to Console Storage Bin Replacement (Non-Luxury)  or Console Storage Bin Replacement (Luxury)  .
