Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the cupholder to the IP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws holding the cupholder to the IP. Tighten the screws to 2 N.m (18 lbs in).
  3. Return the cupholder to the up position.

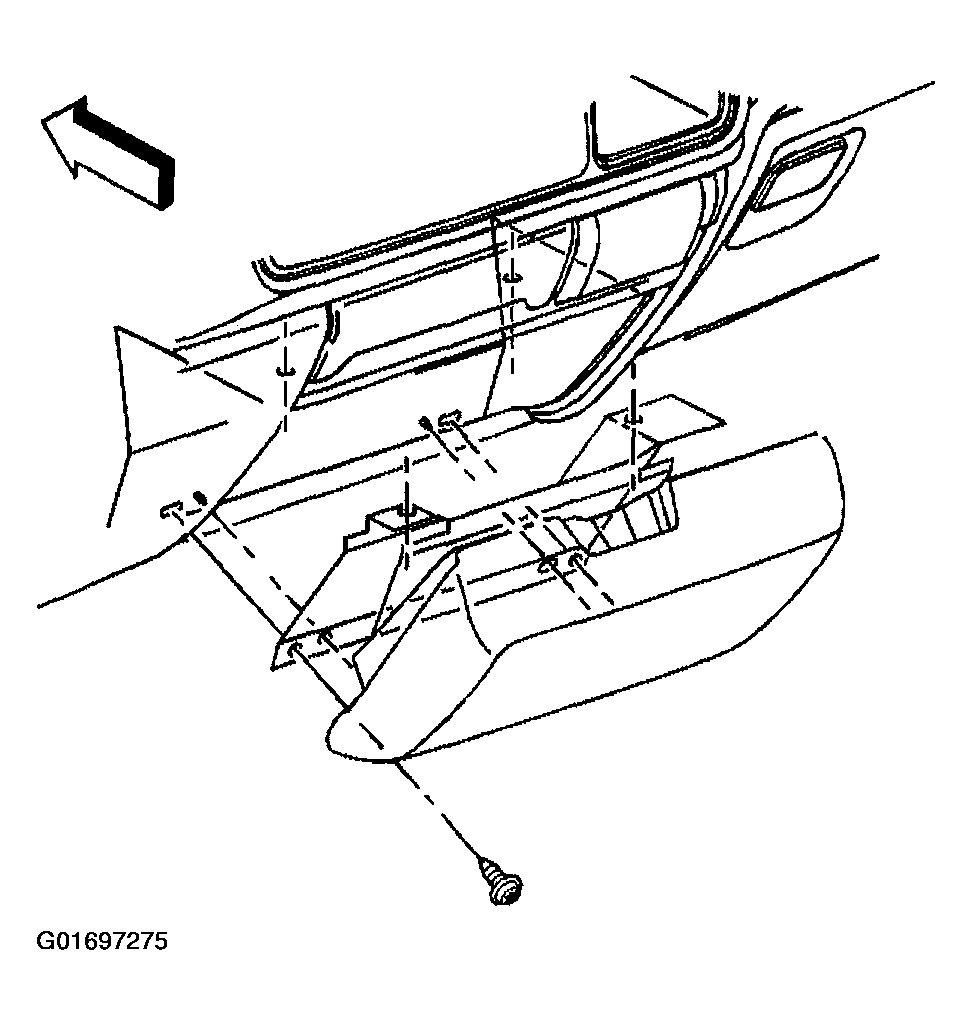

    4. Fig 1: Installing Cupholder Screws
    G01697275Courtesy of GENERAL MOTORS CORP.
