Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the console lid.
  2. Remove the storage bin retaining screws (1).
  3. Lift the storage bin out partially.
  4. Disconnect the electrical connectors.
  5. Lift the storage bin out of the console.

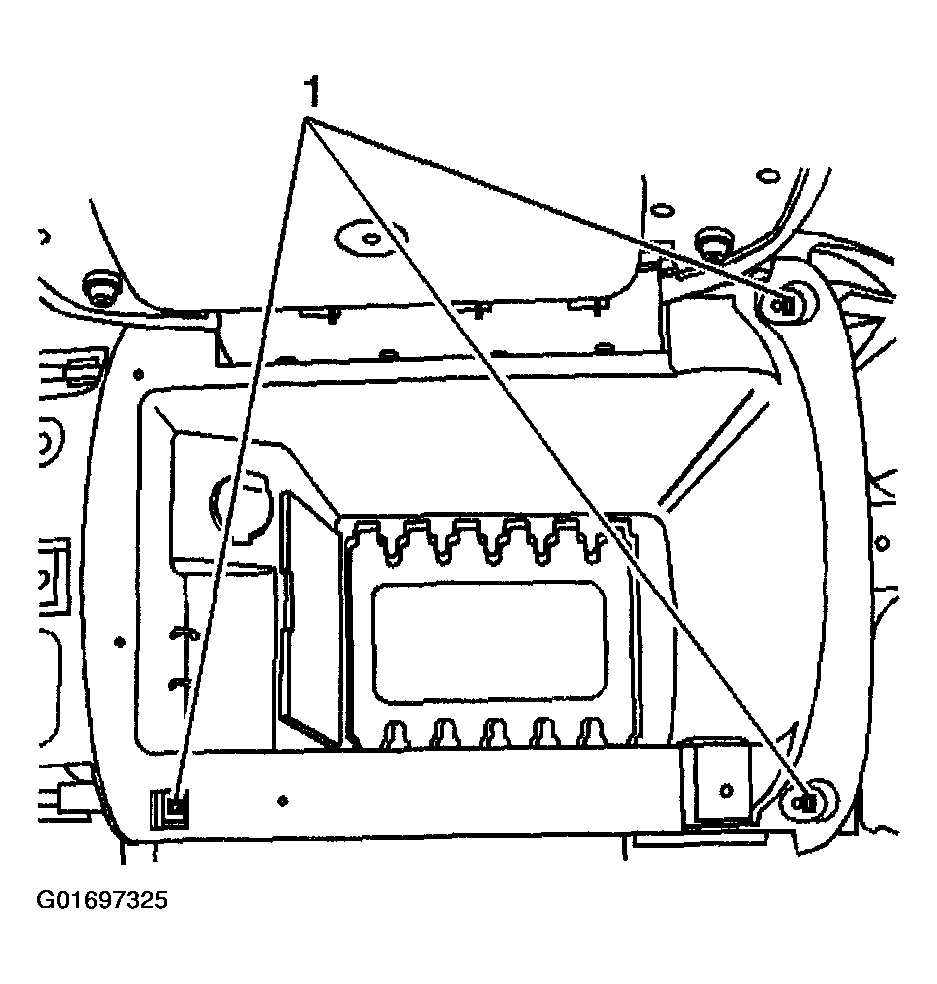

    6. Fig 1: Locating Storage Bin Retaining Screws
    G01697325Courtesy of GENERAL MOTORS CORP.
