Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the console assembly in the vehicle in other to connect the wire connector.
  2. Connect the wire connector.
  3. Install the console over the studs.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the two front console bolts (1) to the front extension. Tighten the two bolts to 1.6 N.m (14 lbs in).

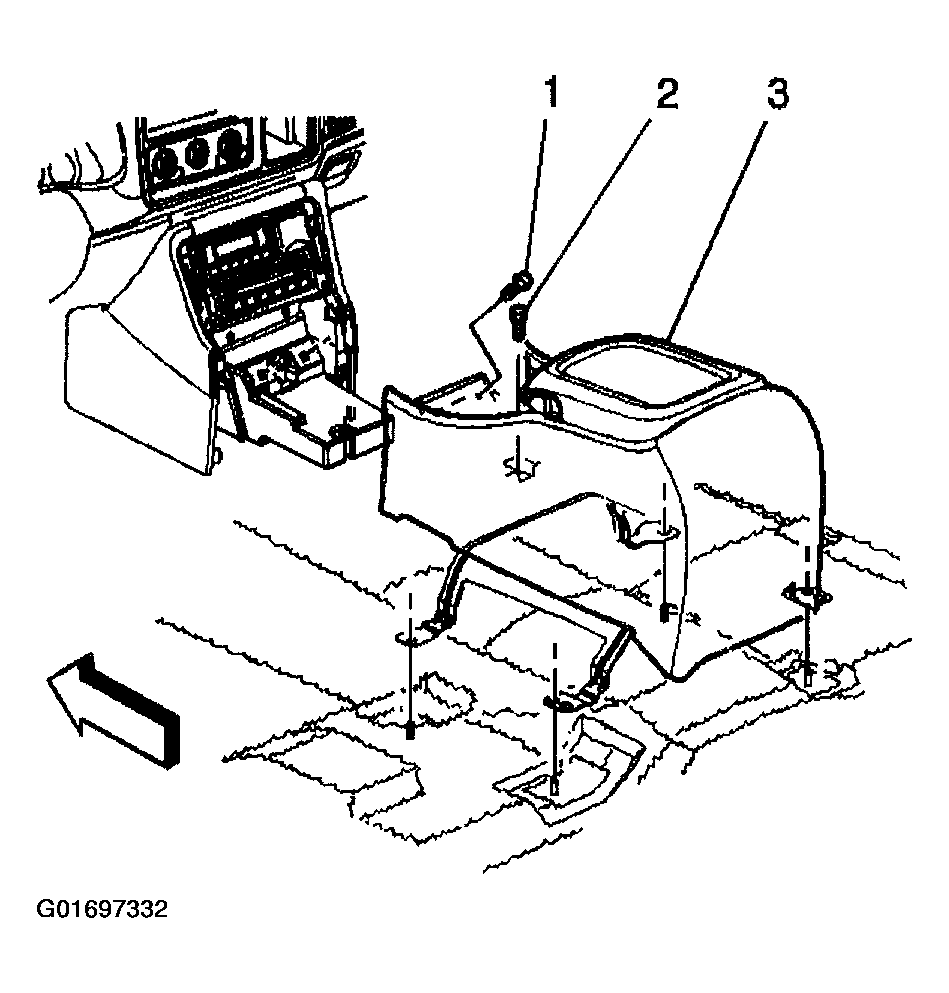

    5. Fig 1: Installing Floor Console Retaining Bolts
    G01697332Courtesy of GENERAL MOTORS CORP.
  5. Install the bolt (2) to the subwoofer box, if equipped. Tighten the bolt to 1.6 N.m (14 lbs in).
  6. Install the console bezel. Refer to Bezel Replacement - Floor Console (Luxury) .
  7. Install both front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET .
