Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the center console door.
  2. Remove the 4 bolts attaching the center console to the console bracket.
  3. Remove by lifting the center console from the bracket.

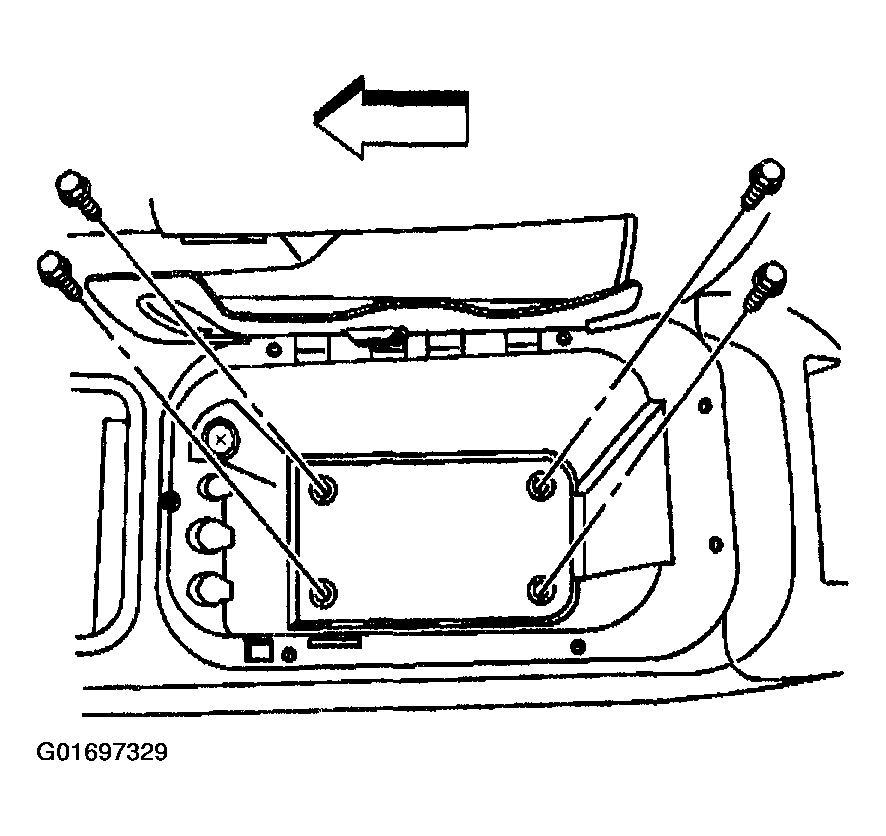

    4. Fig 1: Locating 4 Center Console Retaining Bolts
    G01697329Courtesy of GENERAL MOTORS CORP.
