Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. The new console is attached to a bracket. Separate the center console from the bracket by removing the retaining bolts.
  2. Position the new center console on the bracket in the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the 4 retaining bolts to the bracket. Tighten the bolts to 3.5 N.m (31 lbs in).

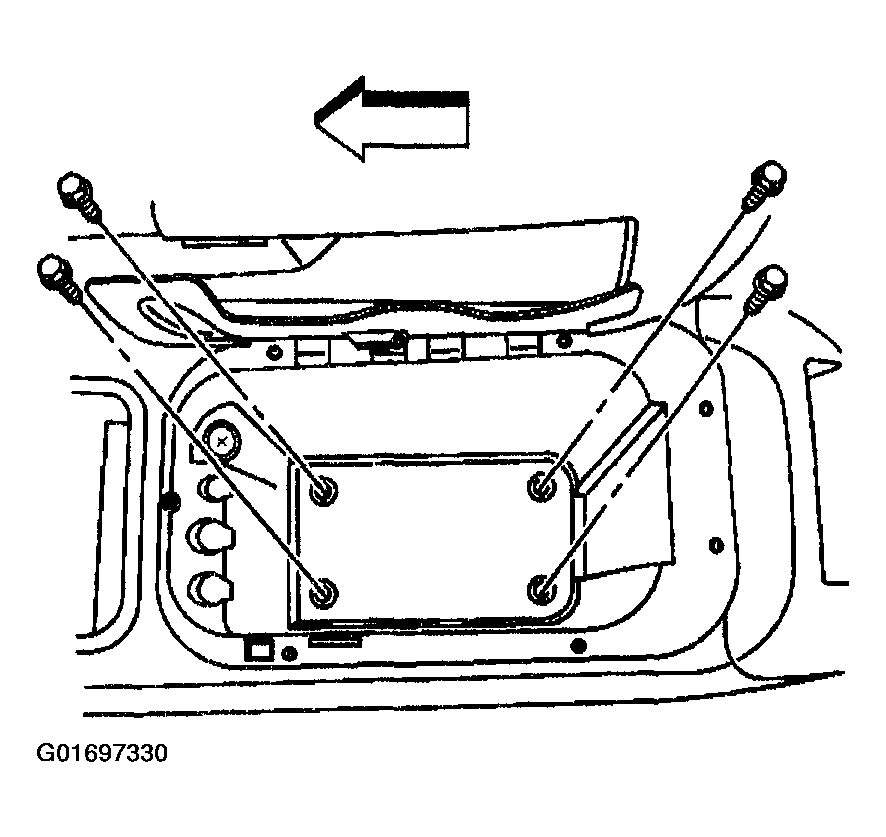

    4. Fig 1: Installing 4 Center Console Retaining Bolts
    G01697330Courtesy of GENERAL MOTORS CORP.
  4. Close the center console door.
