Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console upper console by firmly grabbing the corners and pulling outwards.
  2. Disconnect the electrical connector from the clock.
  3. Remove the clock retaining screws.
  4. Remove the clock from the bezel.

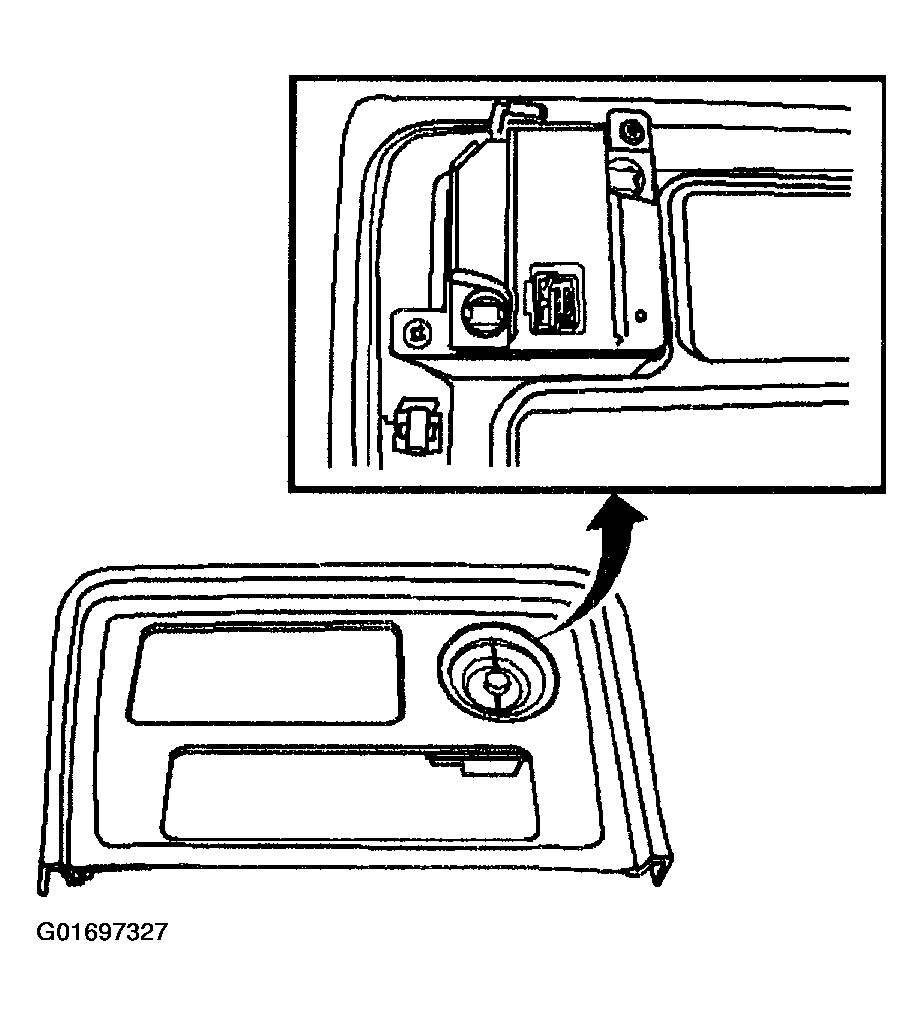

    5. Fig 1: Disconnecting the Clocks Electrical Connector
    G01697327Courtesy of GENERAL MOTORS CORP.
