Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clock to the bezel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the clock retaining screws. Tighten the nut to 2 N.m (18 lbs in).
  3. Connect the electrical connector to the clock.

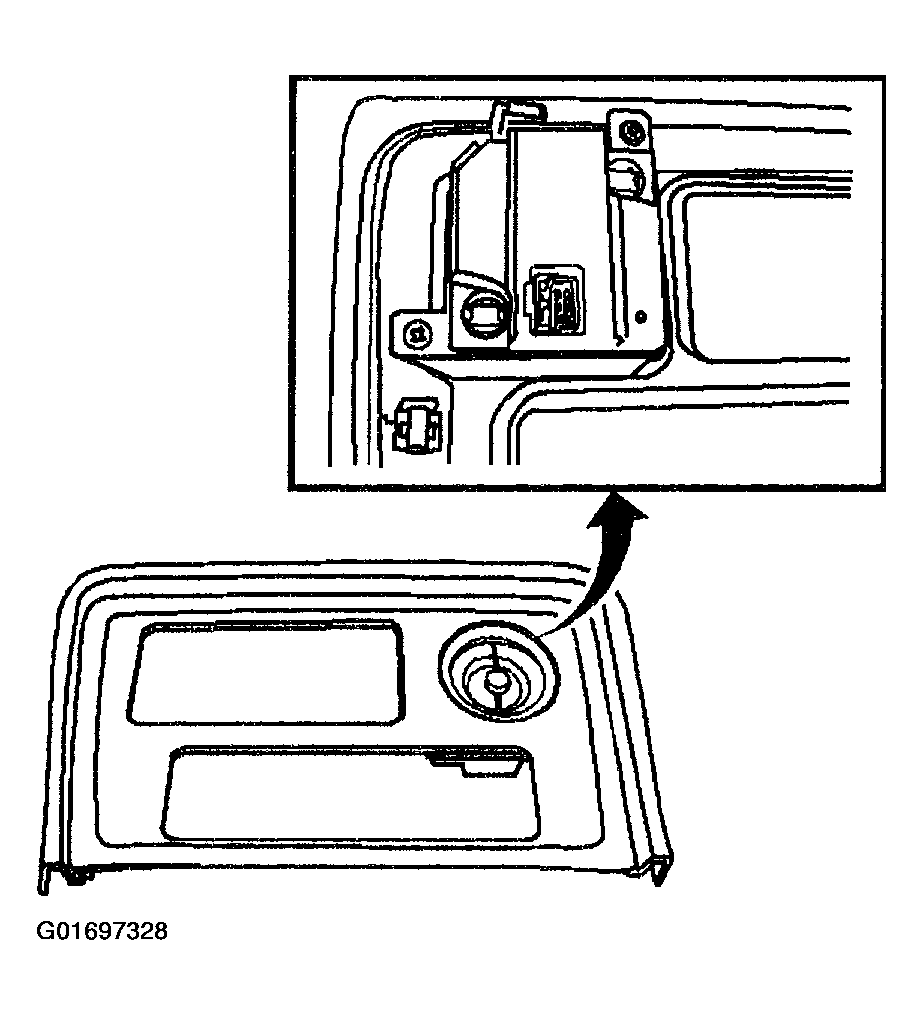

    4. Fig 1: Installing the Clocks Electrical Connector
    G01697328Courtesy of GENERAL MOTORS CORP.
  4. Install the floor console bezel by pushing in the corners.
