Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET .
  2. Remove the center console (1) from the bracket. Refer to Console Replacement (Base Console)  or Console Replacement (Luxury Console)  .
  3. Remove the bracket (2) from the vehicle.

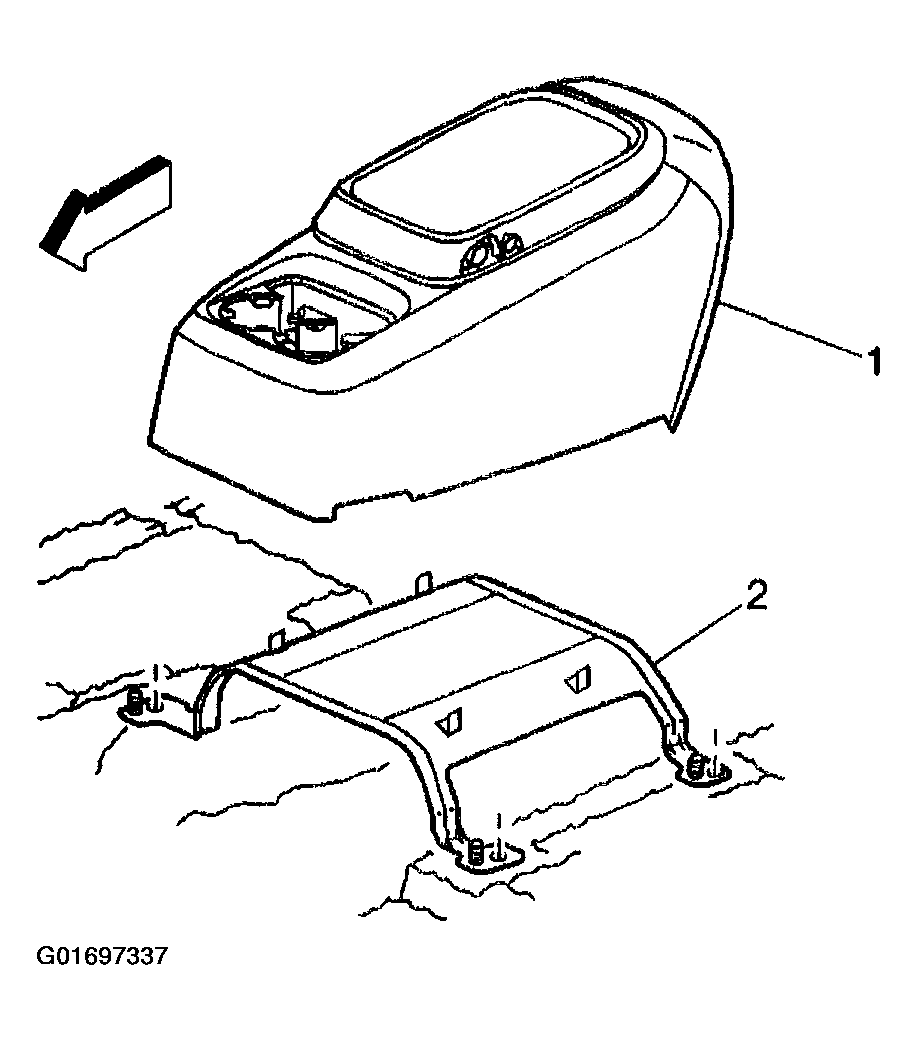

    4. Fig 1: Removing (Center) Console & Bracket
    G01697337Courtesy of GENERAL MOTORS CORP.
