Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bracket (2) in the vehicle.

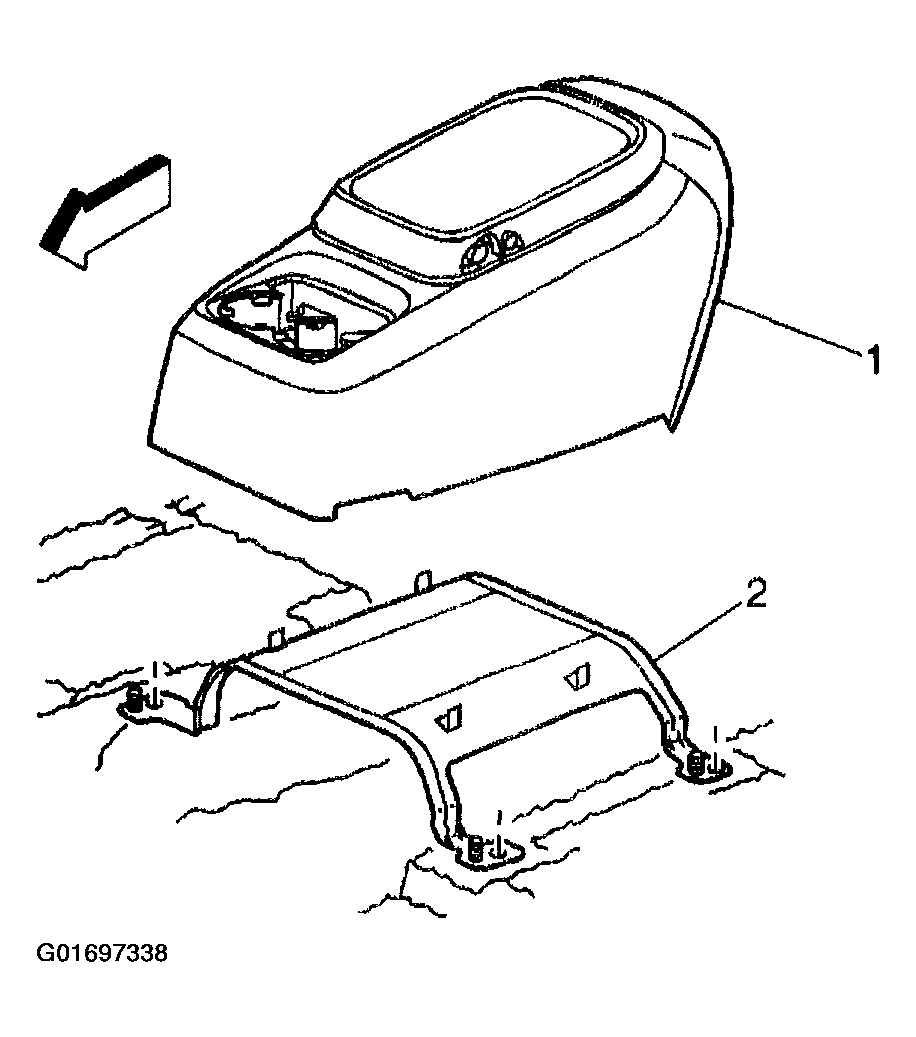

    2. Fig 1: Installing (Center) Console & Bracket
    G01697338Courtesy of GENERAL MOTORS CORP.
  2. Install the center console (1) to the bracket. Refer to Console Replacement (Base Console)  or Console Replacement (Luxury Console)  .
  3. Install both front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET .
