Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake to prevent the vehicle from moving.
  2. If equipped with an automatic transmission, move the shift lever all the way down to last gear.
  3. Tilt the steering wheel to the full down position.
  4. Pull gently rearward on the corners of the bezel from the Instrument Panel (IP) assembly.
  5. Remove the bezel.

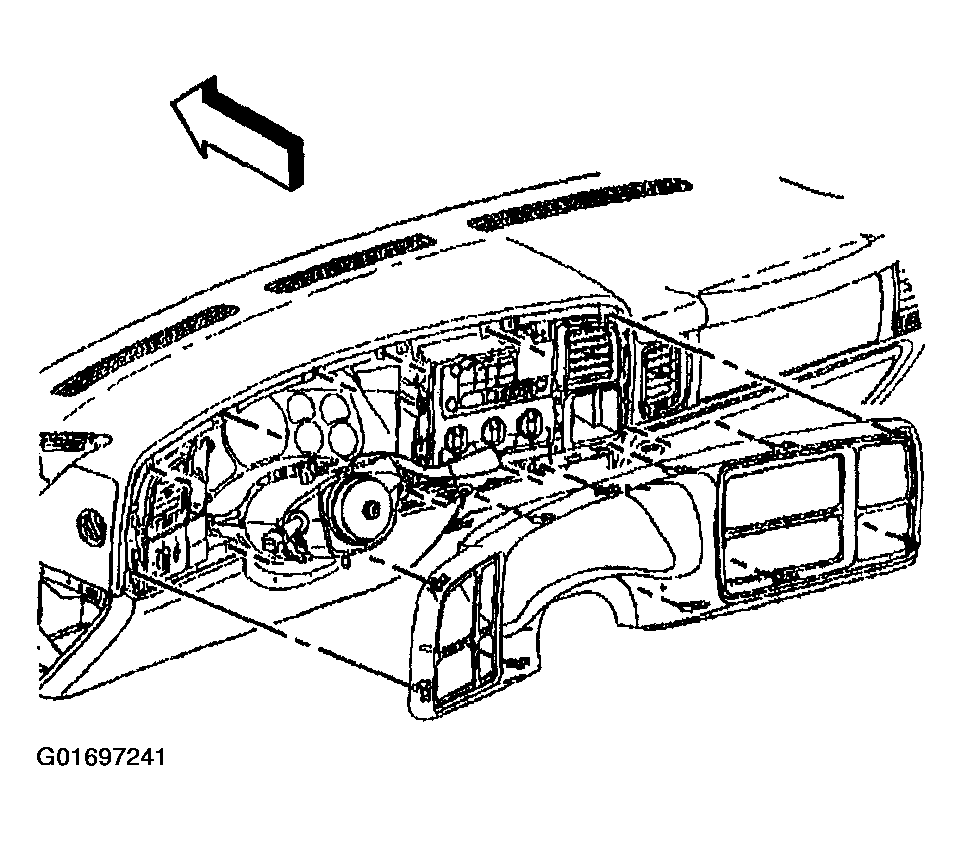

    6. Fig 1: Removal of Bezel from IP Cluster
    G01697241Courtesy of GENERAL MOTORS CORP.
