Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bezel to the IP assembly.

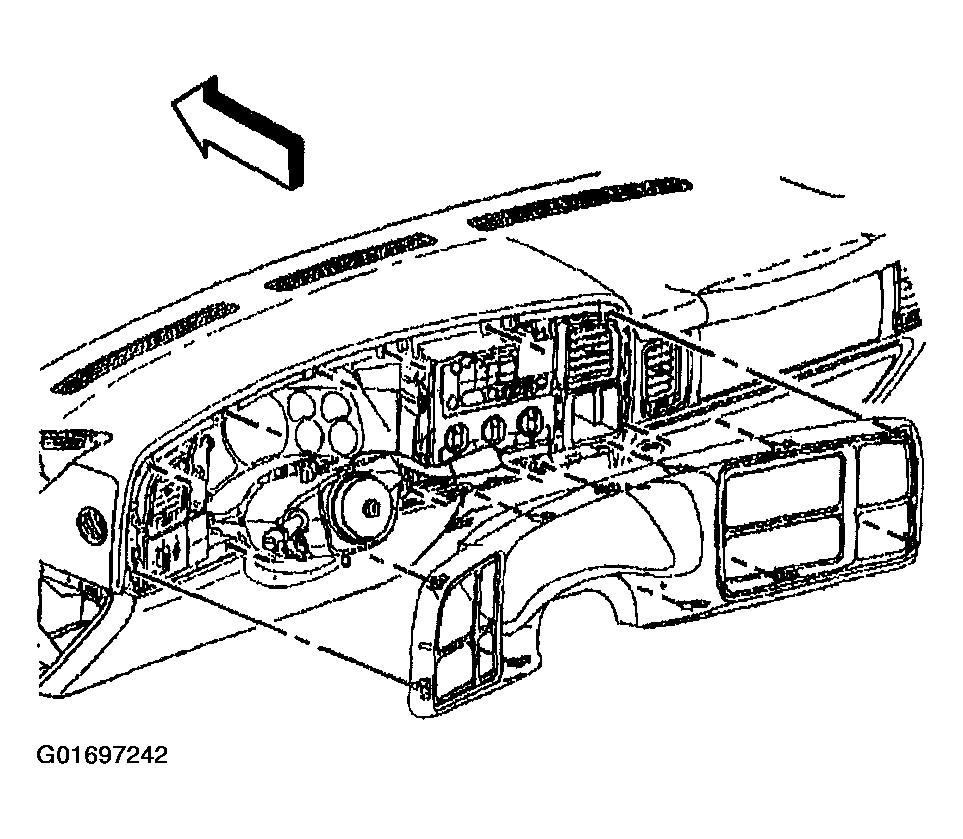

    2. Fig 1: Installation of Bezel to IP Cluster
    G01697242Courtesy of GENERAL MOTORS CORP.
  2. Attach the bezel to the IP assembly by pushing gently on the bezel till it is in place.
  3. Ensure all clips are in place.
  4. Tilt the steering wheel to the normal drive position.
  5. If equipped with an automatic transmission, move the shift lever to the park position.
  6. Disengage the parking brake.
