Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

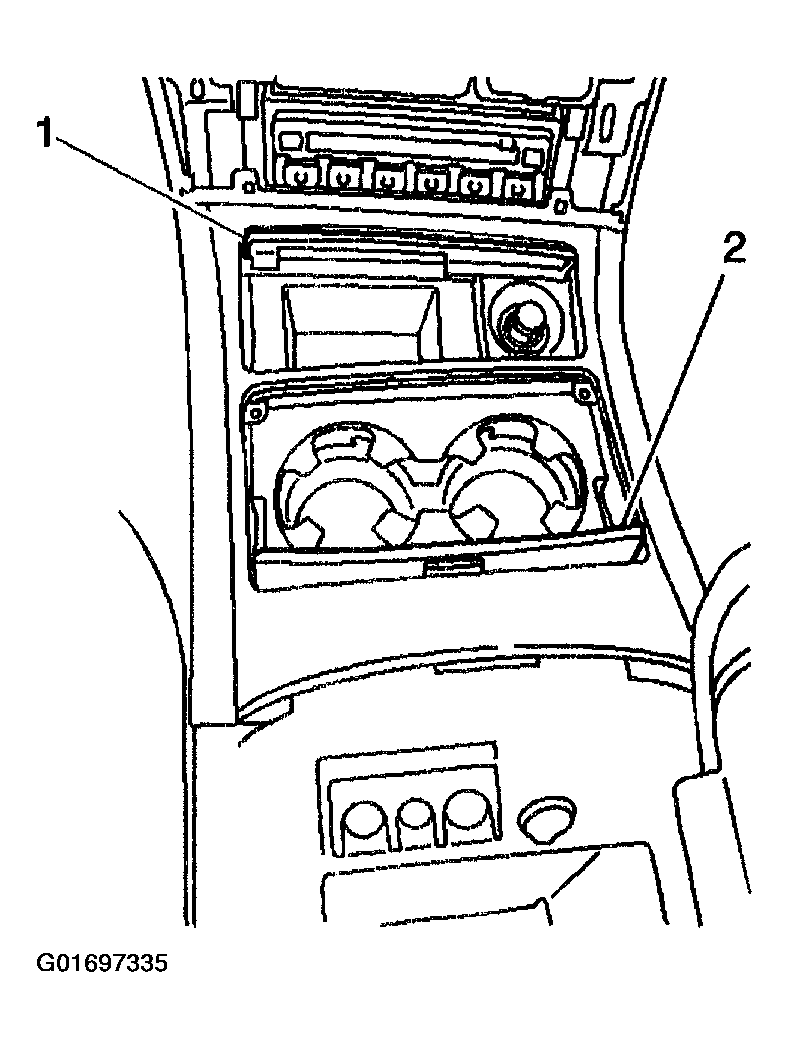

NOTE: The ashtray lid (1) and cupholder lid (2) must be in the open position.

Open the ashtray lid (1) and cupholder lid (2).
Partially install the bezel.
Connect the electrical connectors.
Install the lower bezel to the console.
Push on the corners until the retainers are fully seated in place.

Fig 1: Installing Ashtray & Cupholder Lids

Courtesy of GENERAL MOTORS CORP.

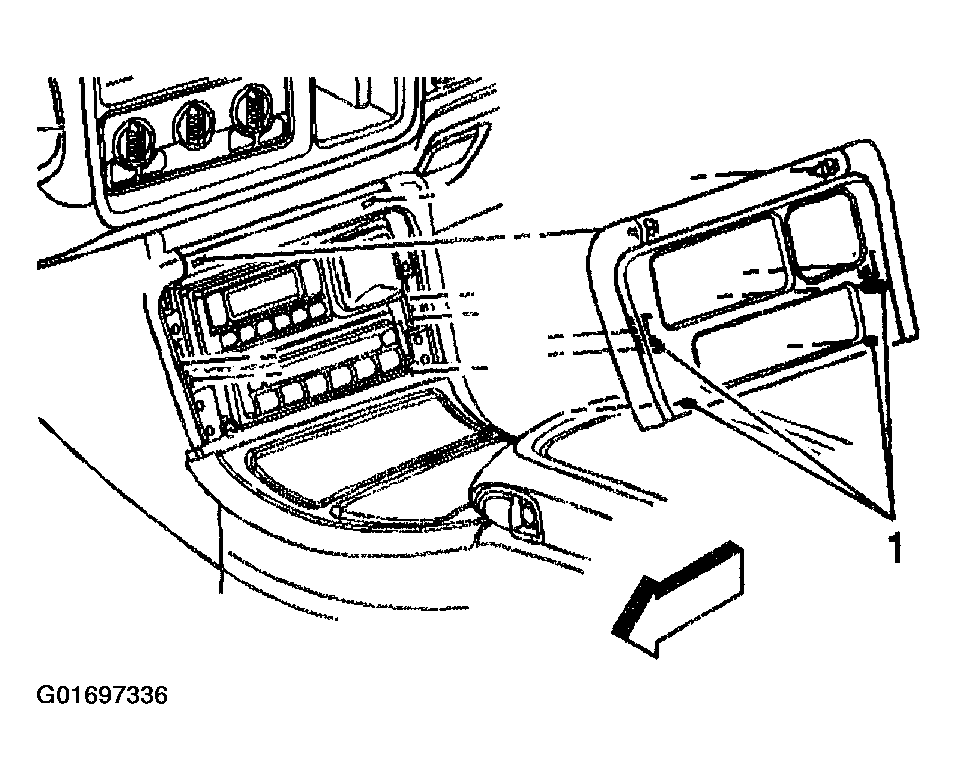

Align the locating pins (1) on the upper bezel.
Press in on the bezel until all retaining clips are fully seated.

Fig 2: Installing Floor Console Upper Bezel

Courtesy of GENERAL MOTORS CORP.
