Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ashtray housing to the lower IP trim panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws holding the ashtray housing to the rear of the IP lower trim panel. Tighten the ashtray housing screws to 2 N.m (18 lbs in).

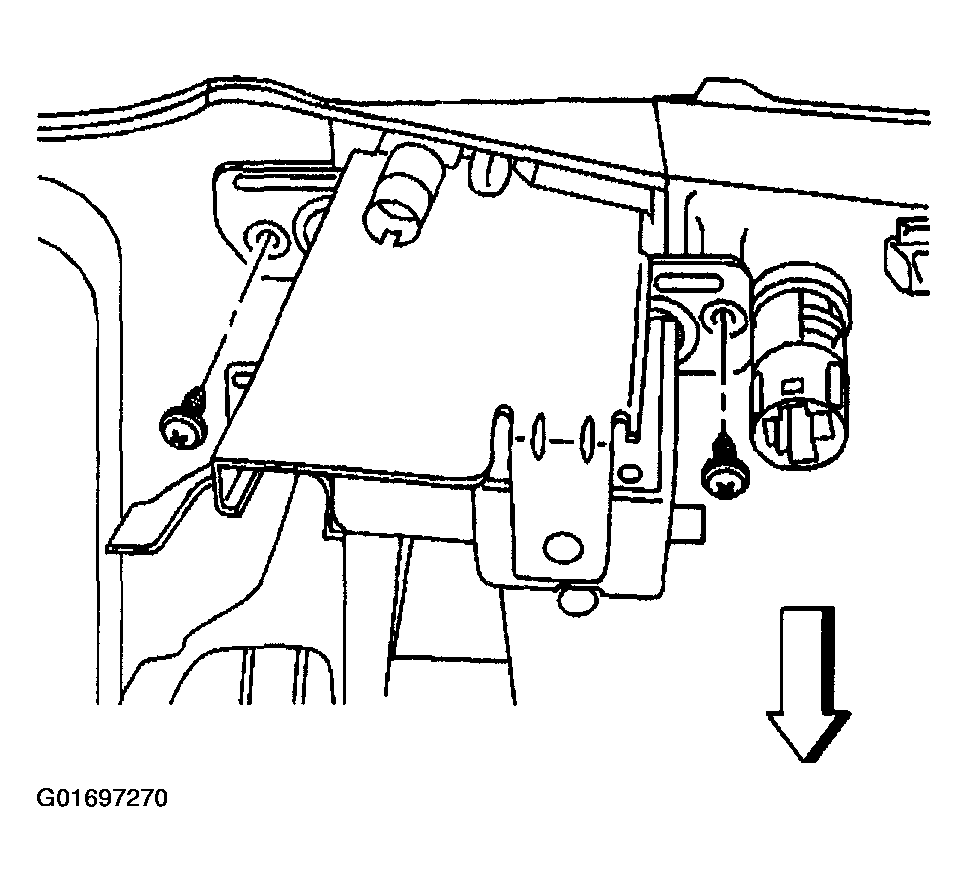

    3. Fig 1: Installing Ashtray Housing Screws
    G01697270Courtesy of GENERAL MOTORS CORP.
  3. Connect the ashtray lamp wiring harness to the ashtray housing.

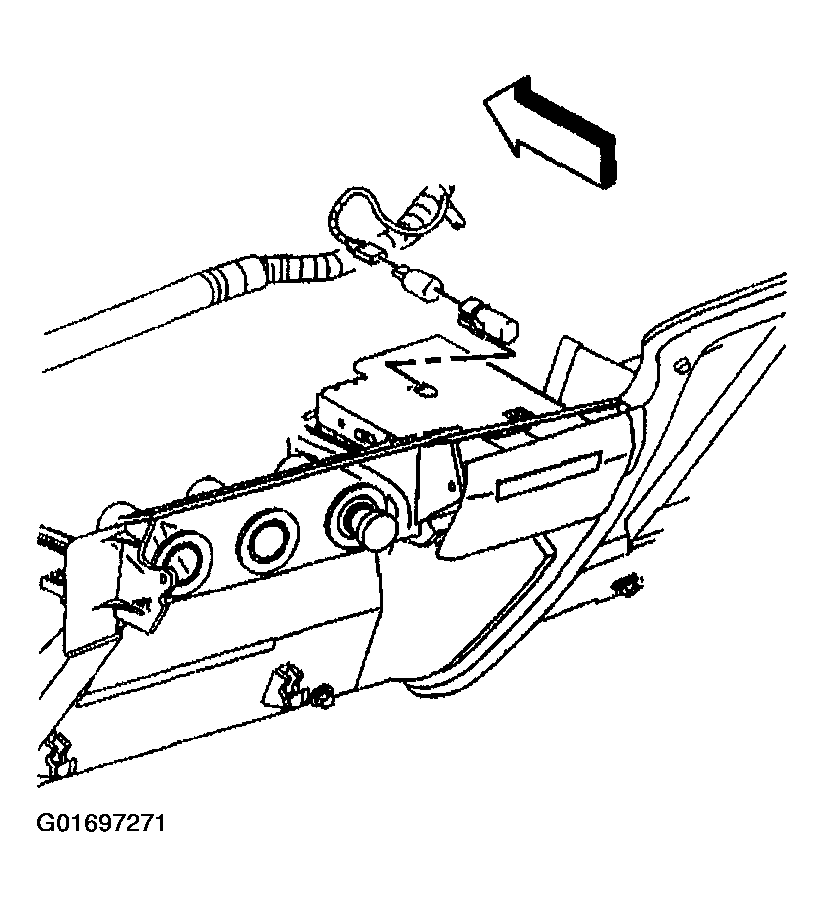

    4. Fig 2: Installing Ashtray Lamp Wiring Harness
    G01697271Courtesy of GENERAL MOTORS CORP.
  4. Install the lower IP trim panel. Refer to IP Trim Panel Replacement - Lower .

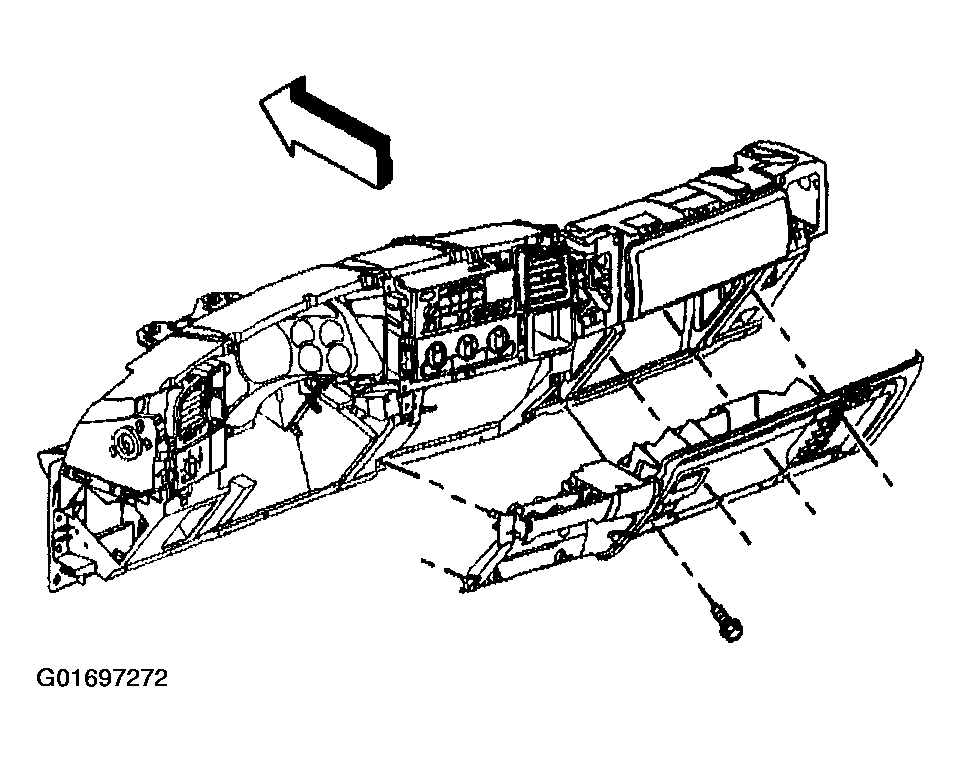

    5. Fig 3: Installing Lower IP Trim Panel
    G01697272Courtesy of GENERAL MOTORS CORP.
  5. Insert the ashtray to the IP by depressing the tab and sliding the ashtray forward.

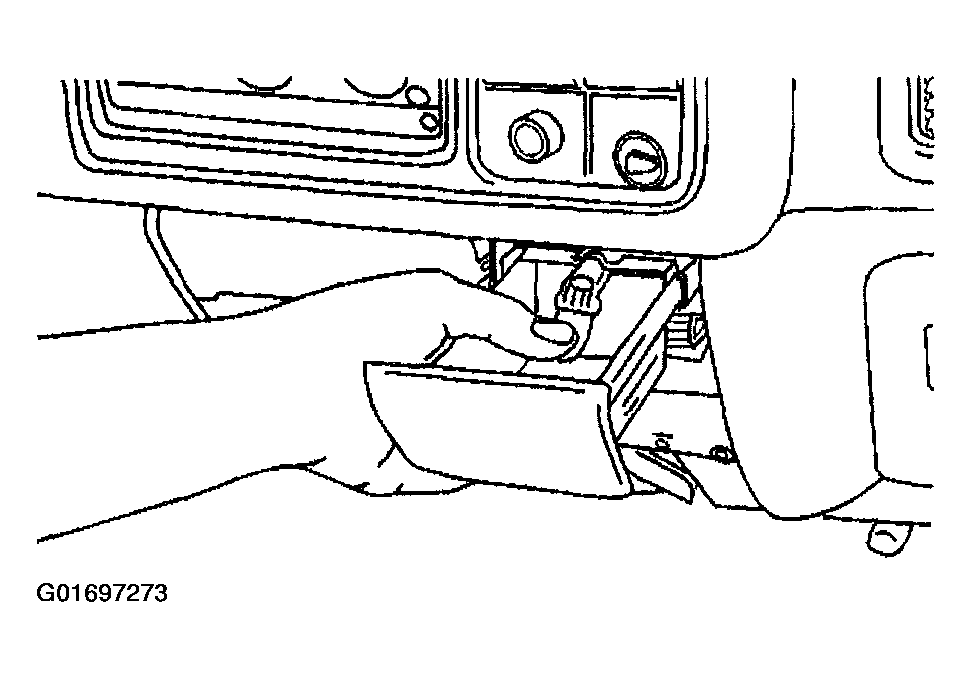

    6. Fig 4: Ashtray Installation
    G01697273Courtesy of GENERAL MOTORS CORP.
