Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP carrier. Refer to IP Carrier Replacement .
  2. Remove the air distribution duct retaining screws.
  3. Remove the air distribution duct.

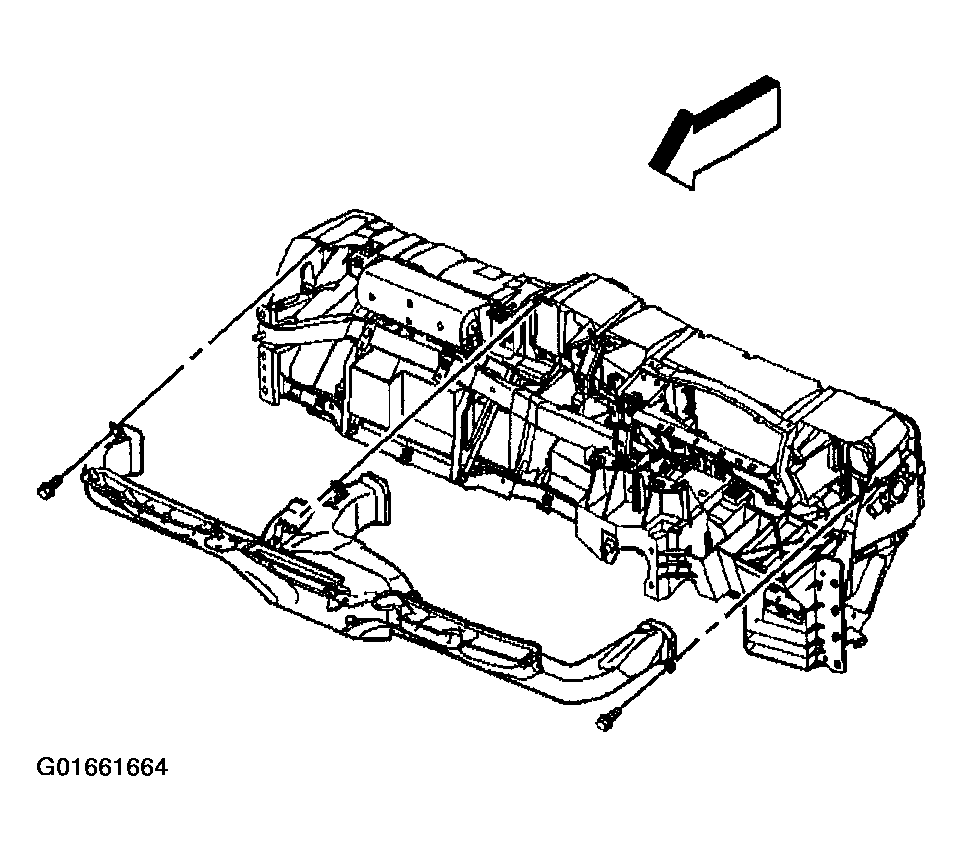

    4. Fig 1: Removing Air Distributor Duct Retaining Screws
    G01661664Courtesy of GENERAL MOTORS CORP.
