Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air distribution duct.
  2. Install the air distribution duct retaining screws.
    NOTE: Refer to FASTENER NOTICE .
  3. Tighten the screws. Tighten the screws to 1.6 N.m (14 lb in).

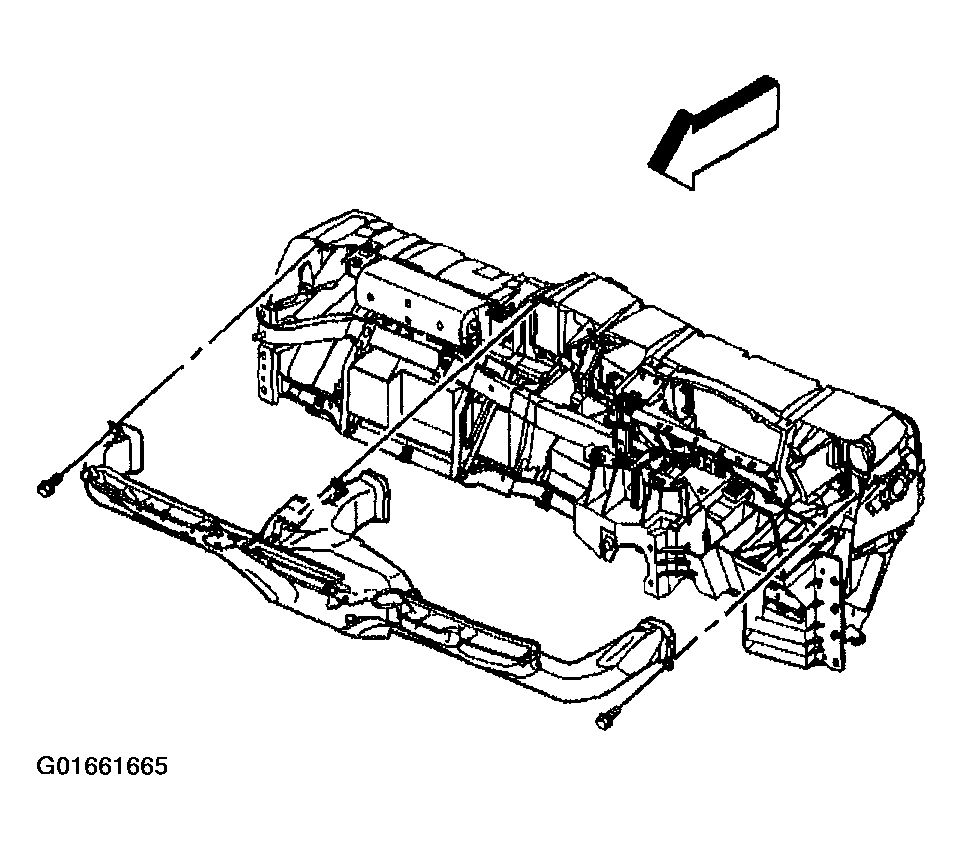

    4. Fig 1: Installing The Air Distributor Duct Retaining Screws
    G01661665Courtesy of GENERAL MOTORS CORP.
  4. Install the IP carrier. Refer to IP Carrier Replacement .
