Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the switches in the assembly
  2. Install the accessory switch assembly into the IP till it snaps into place.

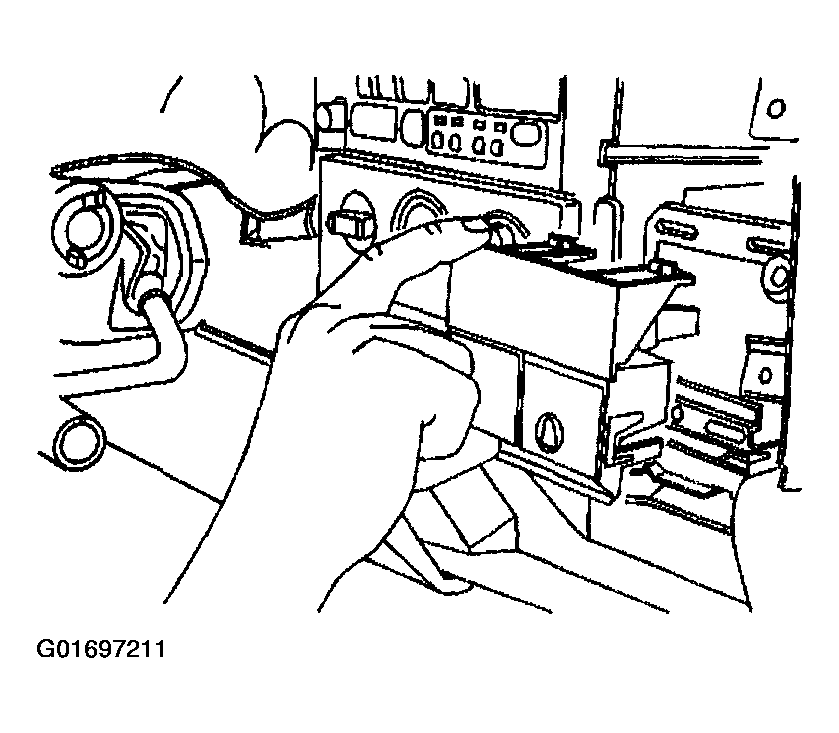

    3. Fig 1: Accessory Switch Installation
    G01697211Courtesy of GENERAL MOTORS CORP.
  3. Install the IP trim bezel. Refer to Bezel Replacement - IP Cluster .
