Scan Tool Data List

The scan tool data list(s) contain all the instrument panel, Gauges, and console related parameters that are available on the scan tool. The parameters in the list are arranged in alphabetical order. The data list column indicates the location of the parameter within the scan tool menu selections.

Use the scan tool data list(s) as directed by a diagnostic fig. Or in order to supplement the diagnostic procedures. Begin all of the diagnostic procedures with Diagnostic System Check - Instrument Cluster , Diagnostic System Check - Driver Information Systems , or Diagnostic System Check - Audible Warnings  .

Use the scan tool data list(s) only after the following is determined:

• There is no published DTC procedure nor published symptom procedure for the customer concern.
• The DTC or symptom procedure indicated by the diagnostic system check does not resolve the customer concern.

The typical data values are obtained from a properly operating vehicle under the conditions specified in the first row of the scan tool data list fig. Comparison of the parameter values from the suspect vehicle with the typical data values may reveal the source of the customer concern.

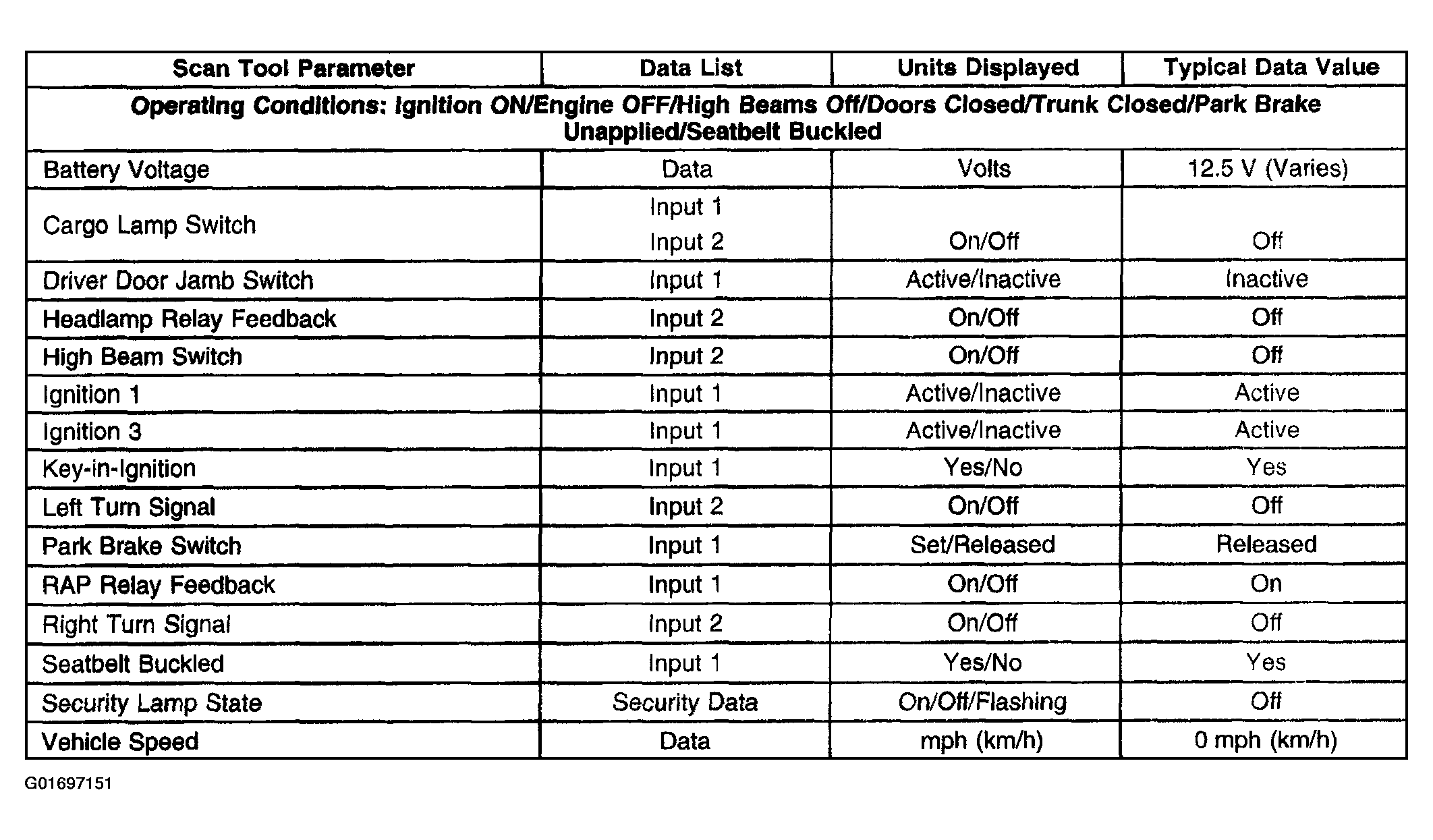

Fig 1: Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.

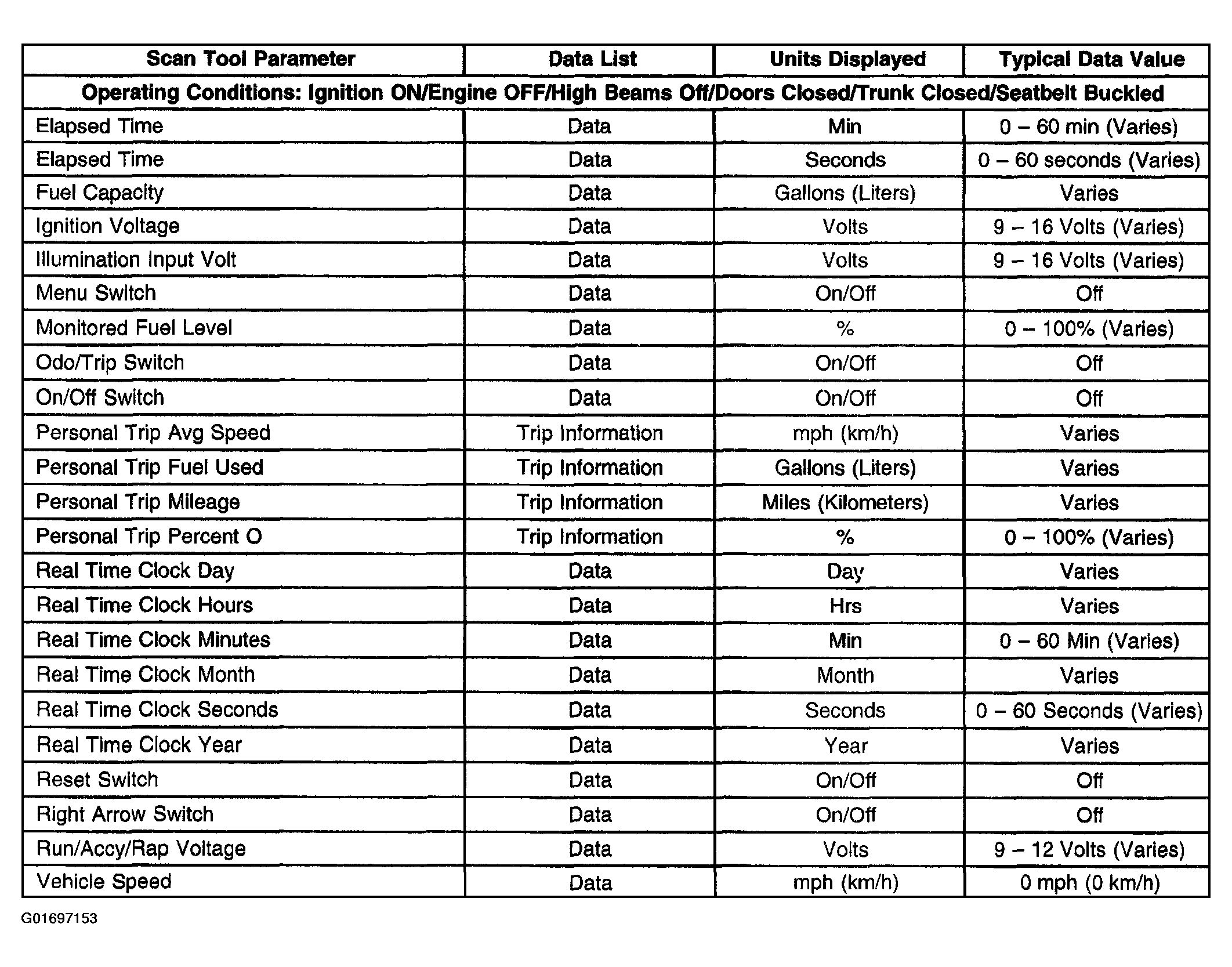

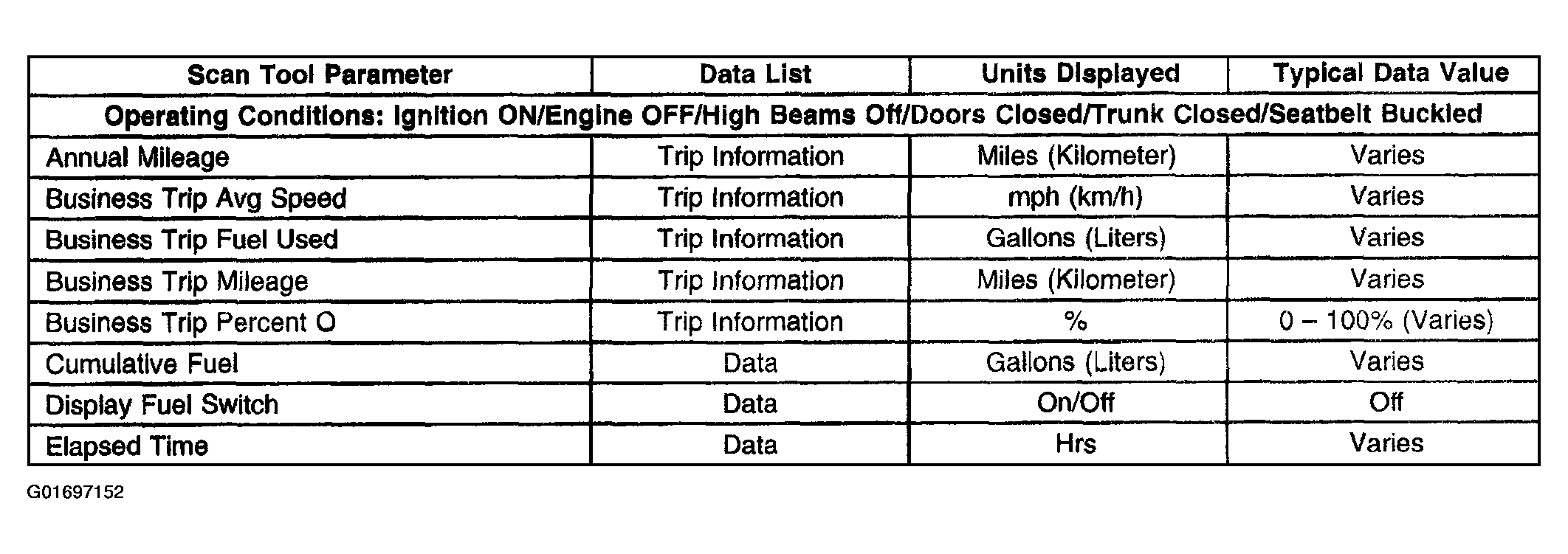

Fig 2: Driver Information Center (DIC)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Scan Tool Parameters

Courtesy of GENERAL MOTORS CORP.

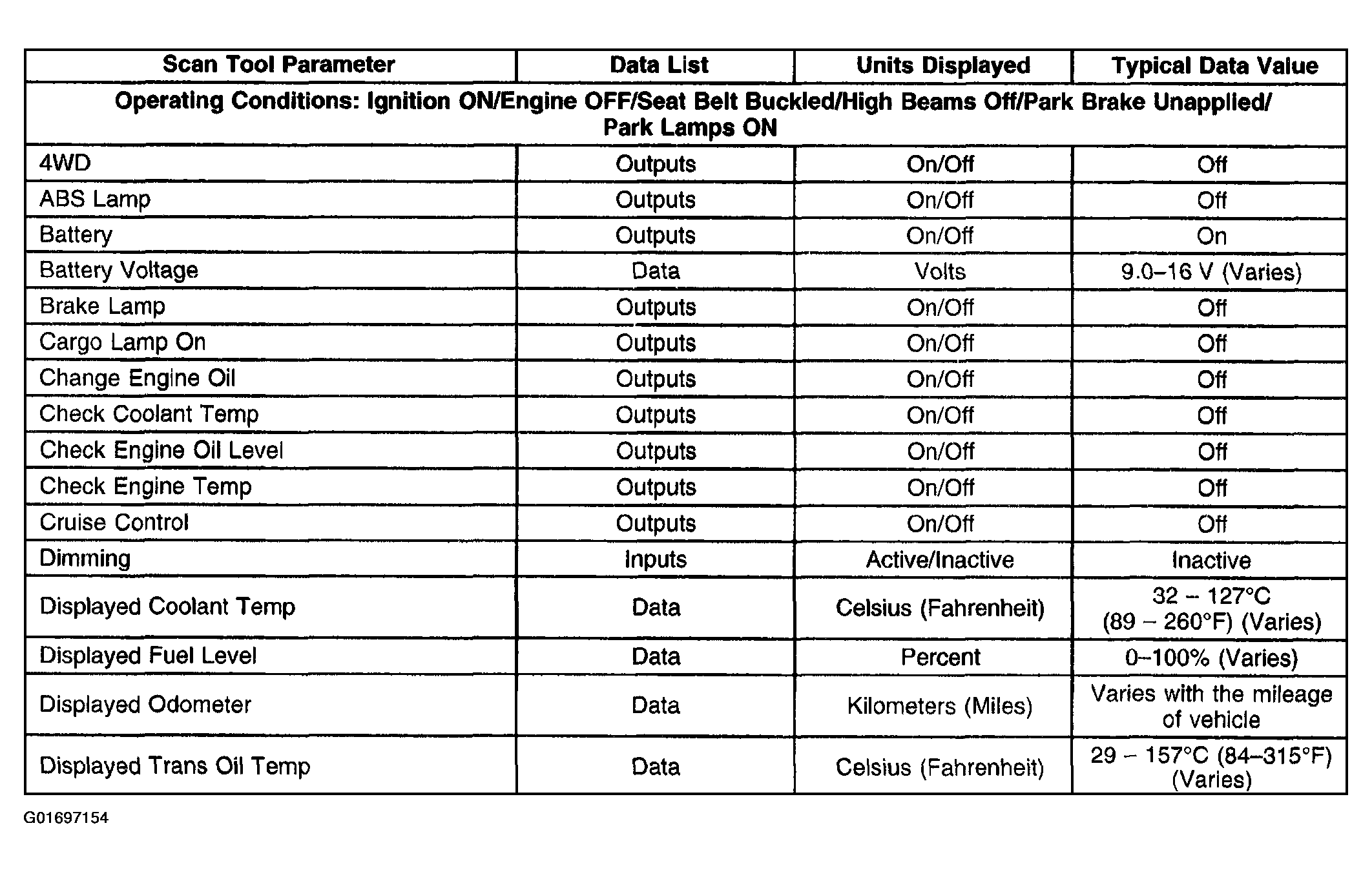

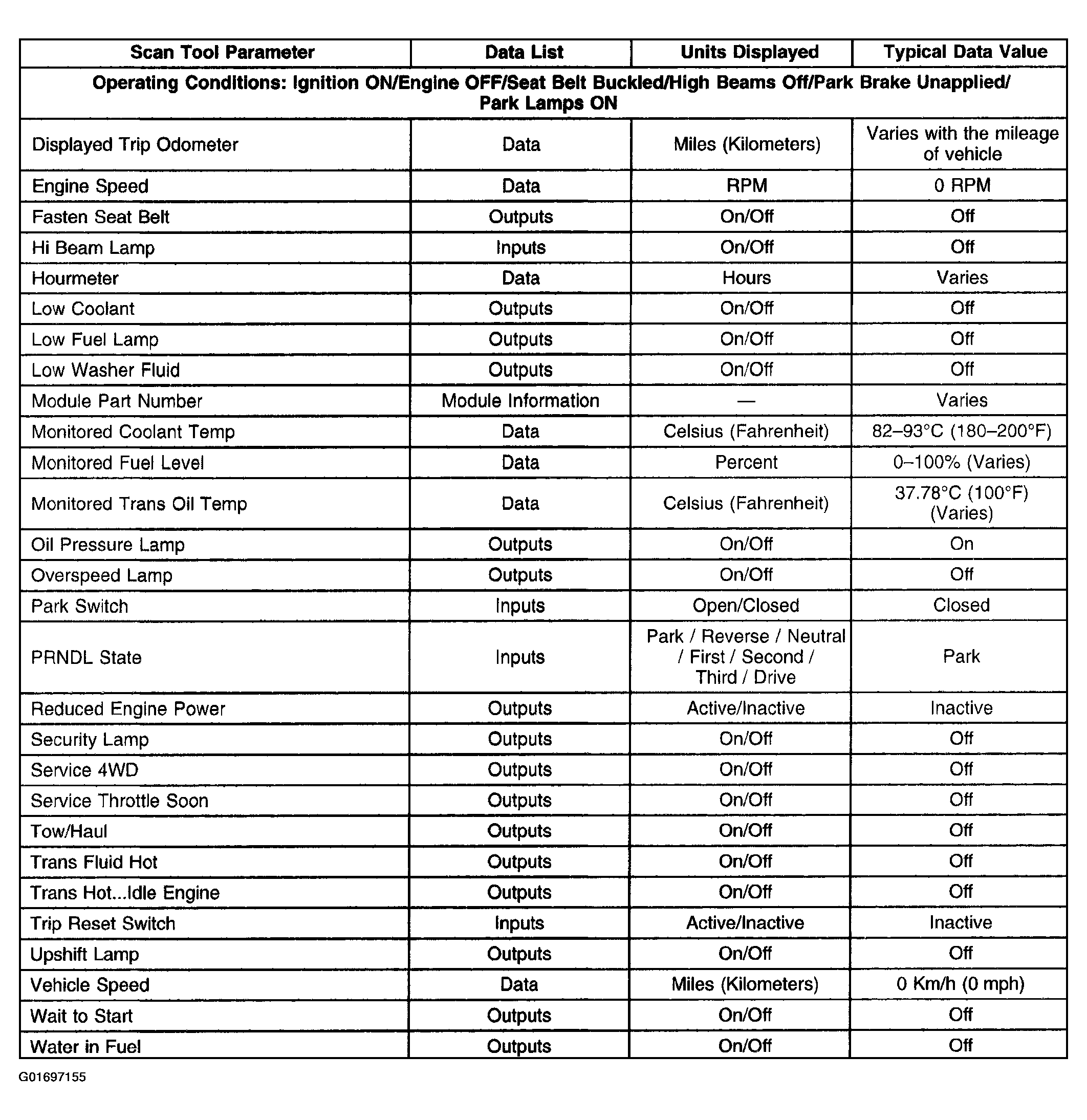

Fig 4: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Scan Tool Parameters

Courtesy of GENERAL MOTORS CORP.

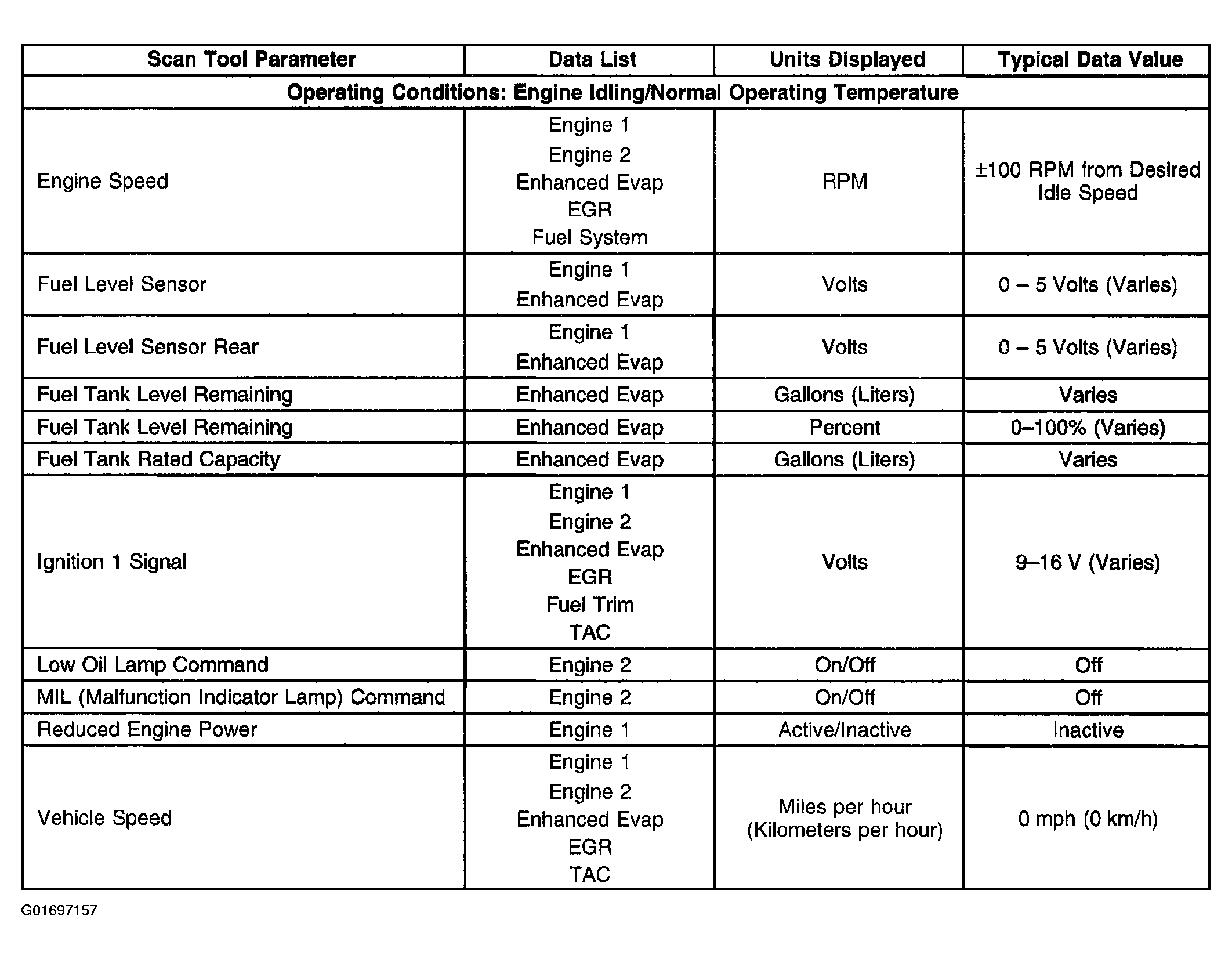

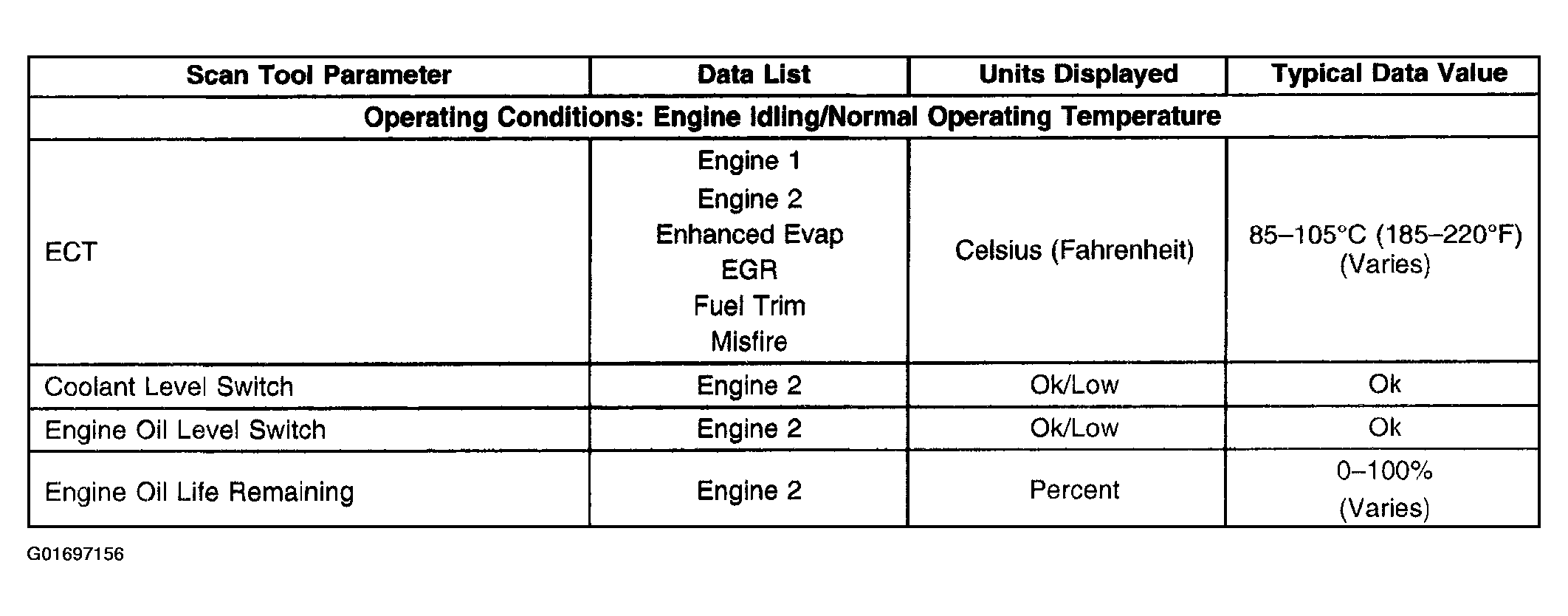

Fig 6: Powertrain Control Module (PCM)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Scan Tool Parameters

Courtesy of GENERAL MOTORS CORP.
