Test Description

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3.  This step tests for high resistance in the signal circuits and the low reference circuit of the fuel level senders.
  2. 13.  DTCs will be set in the PCM when you perform this diagnostic table

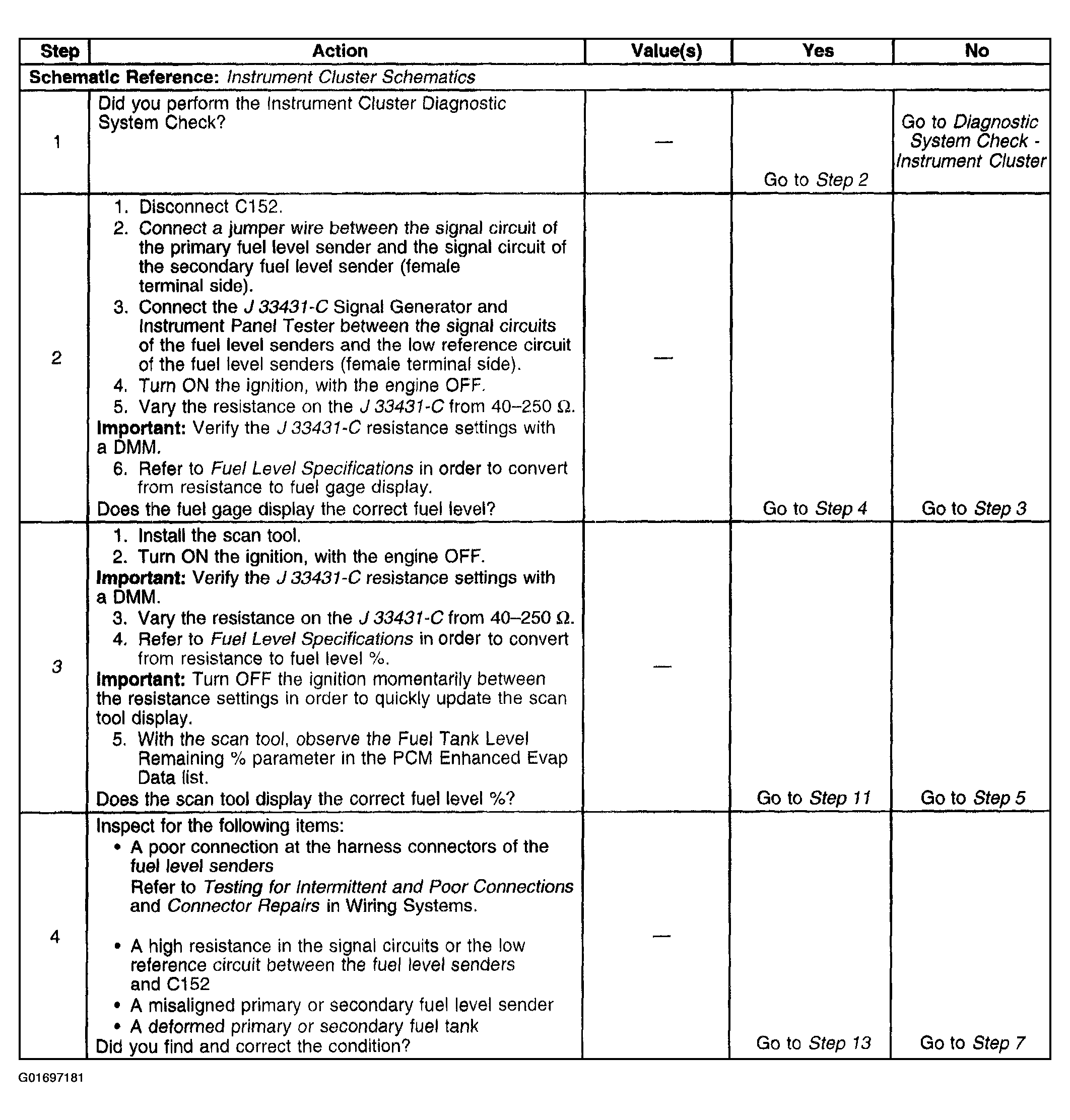

Fig 1: Fuel Gauge Inaccurate Or Inoperative (Dual Tank) (1 Of 2)
G01697181Courtesy of GENERAL MOTORS CORP.

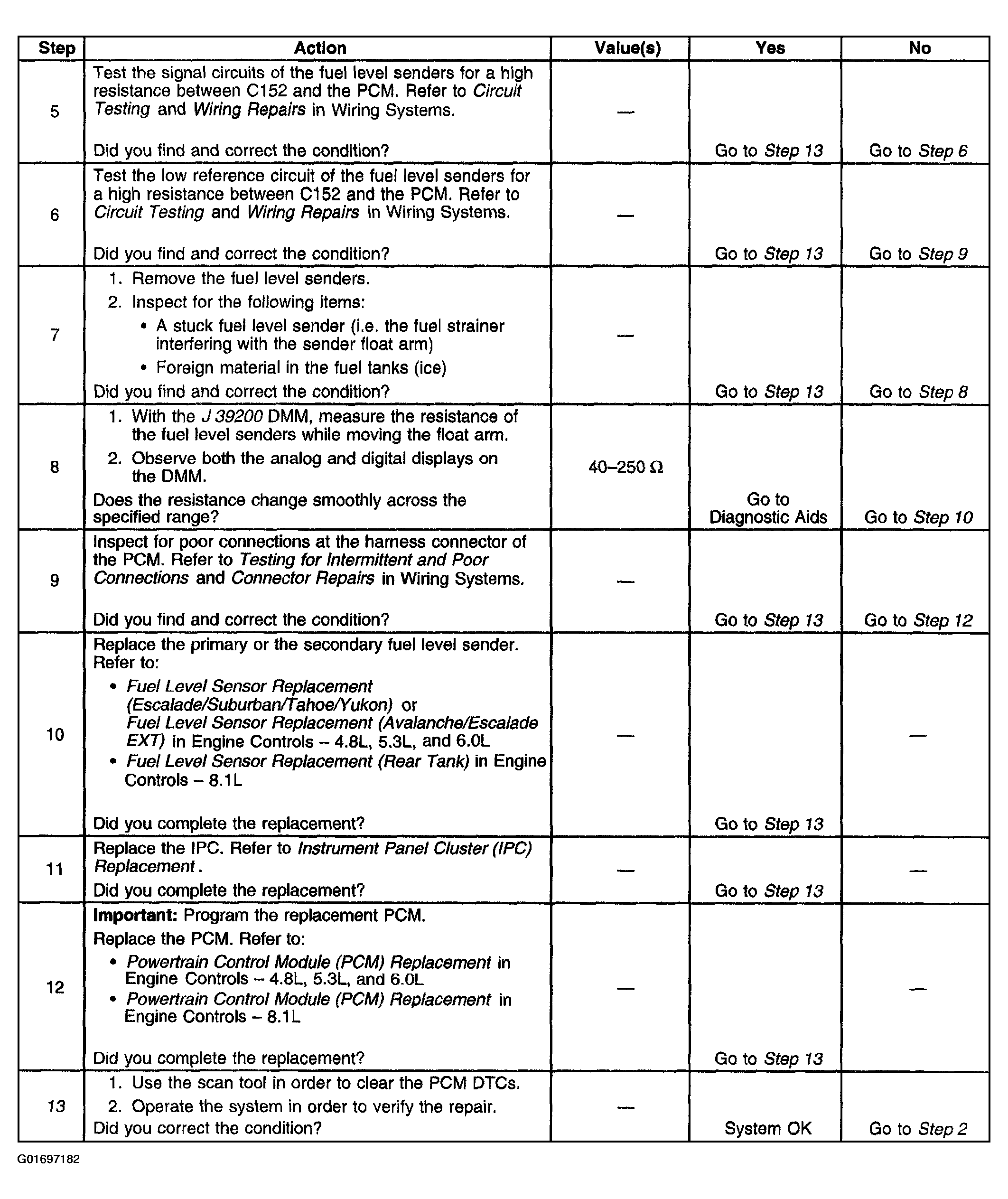

Fig 2: Fuel Gauge Inaccurate Or Inoperative (Dual Tank) (2 Of 2)
G01697182Courtesy of GENERAL MOTORS CORP.
