Test Description

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

3. Tests for the proper operation of the circuit in the low voltage range.

Fig 1: DTC P0463: Detects Fuel Level Signal Is Greater Than 98% (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

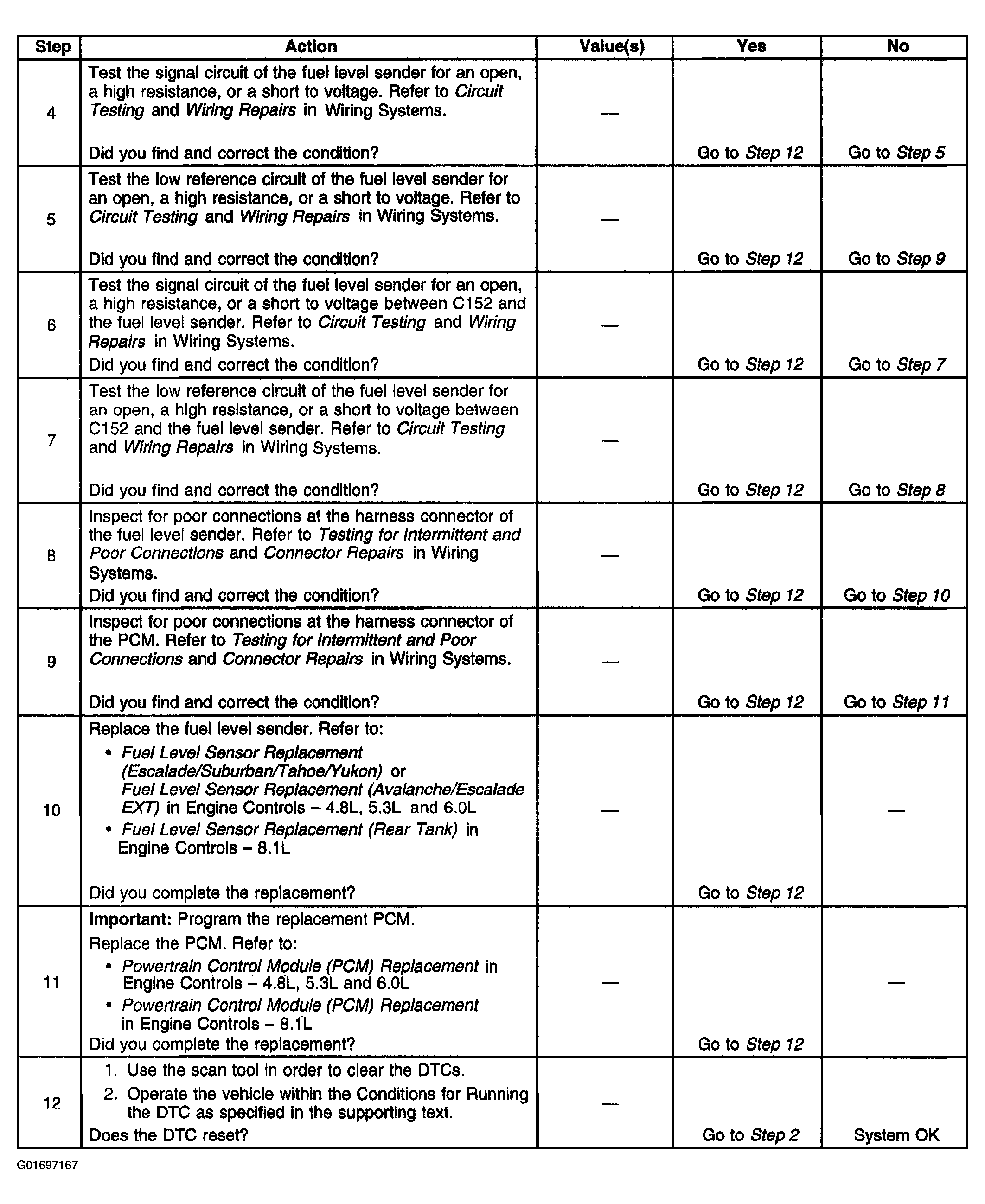

Fig 2: DTC P0463: Detects Fuel Level Signal Is Greater Than 98% (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
