Instrument Panel, Gauges, & Console Connector End Views

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

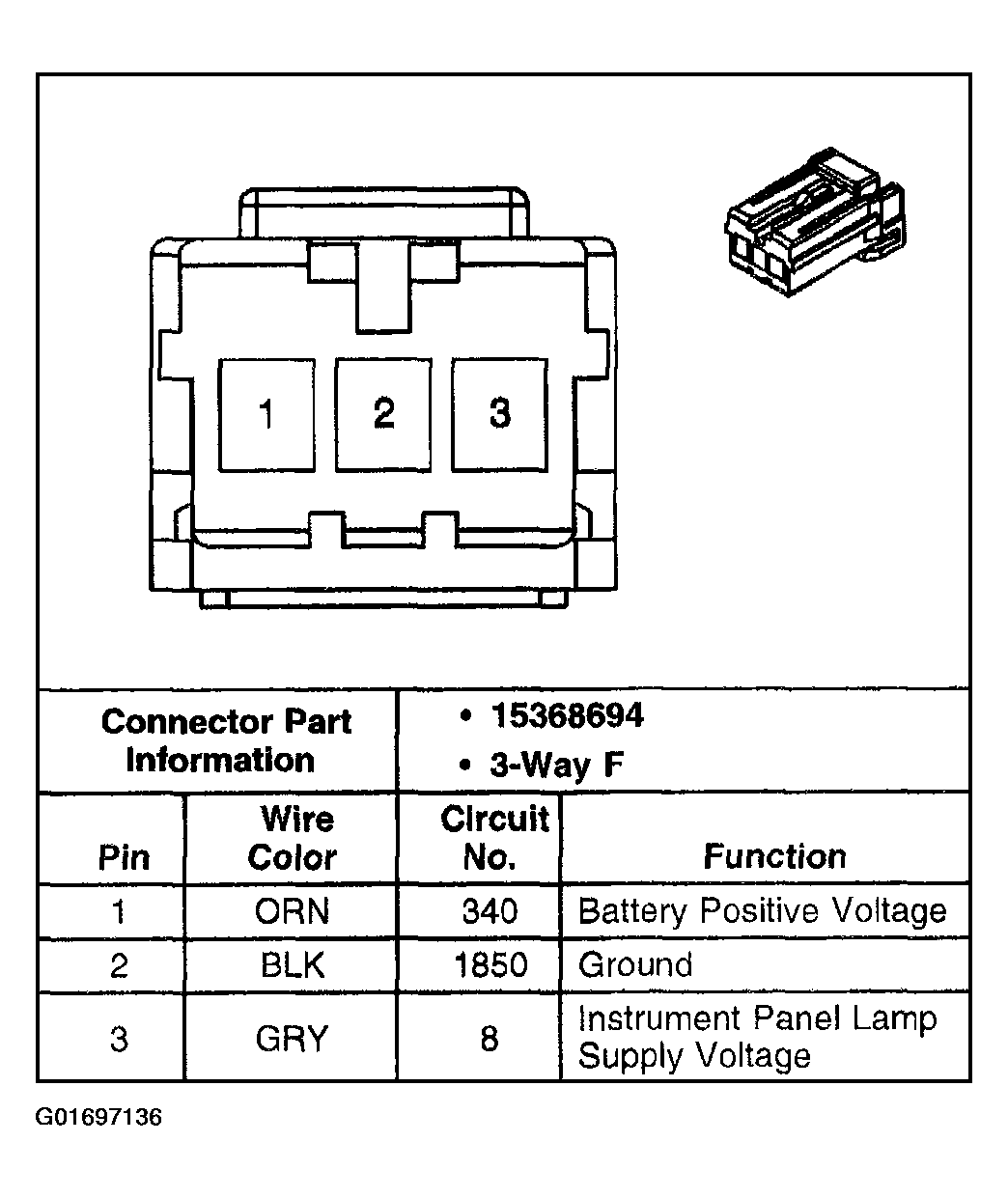

Fig 1: Analog Clock

G01697136

Courtesy of GENERAL MOTORS CORP.

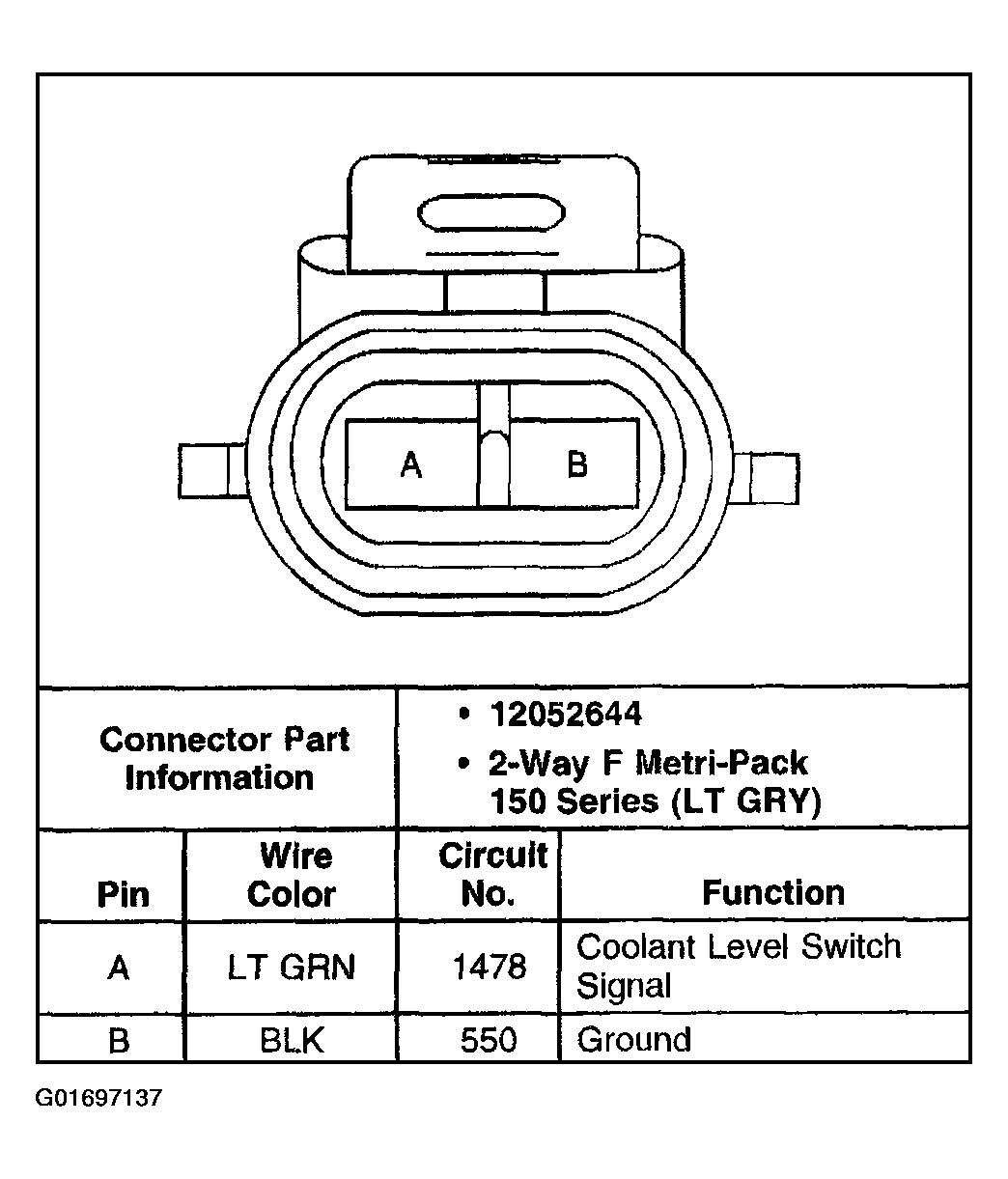

Fig 2: Coolant Level Switch

G01697137

Courtesy of GENERAL MOTORS CORP.

Fig 3: Driver Information Center (DIC)

G01697138

Courtesy of GENERAL MOTORS CORP.

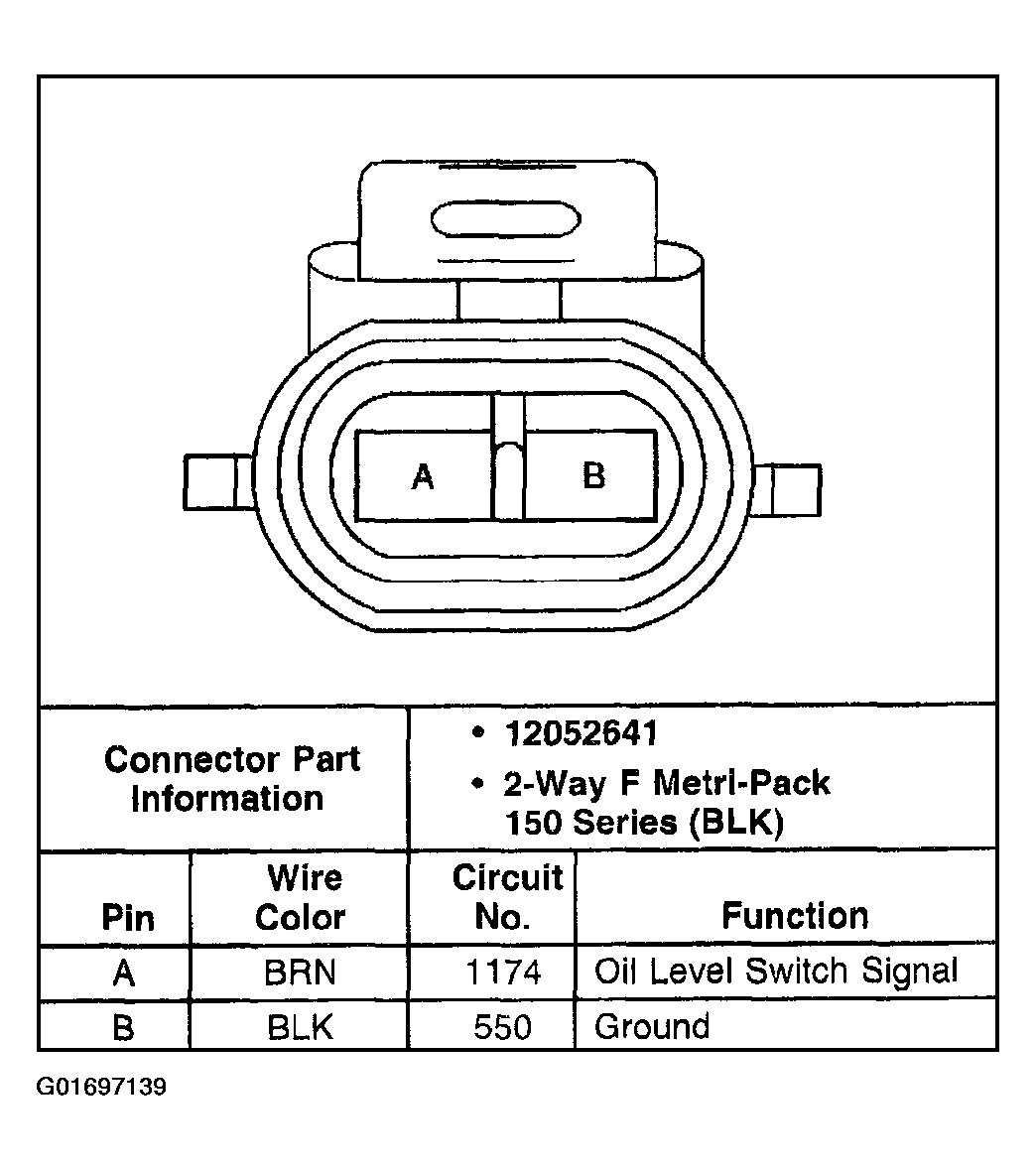

Fig 4: Engine Oil Level Switch

G01697139

Courtesy of GENERAL MOTORS CORP.

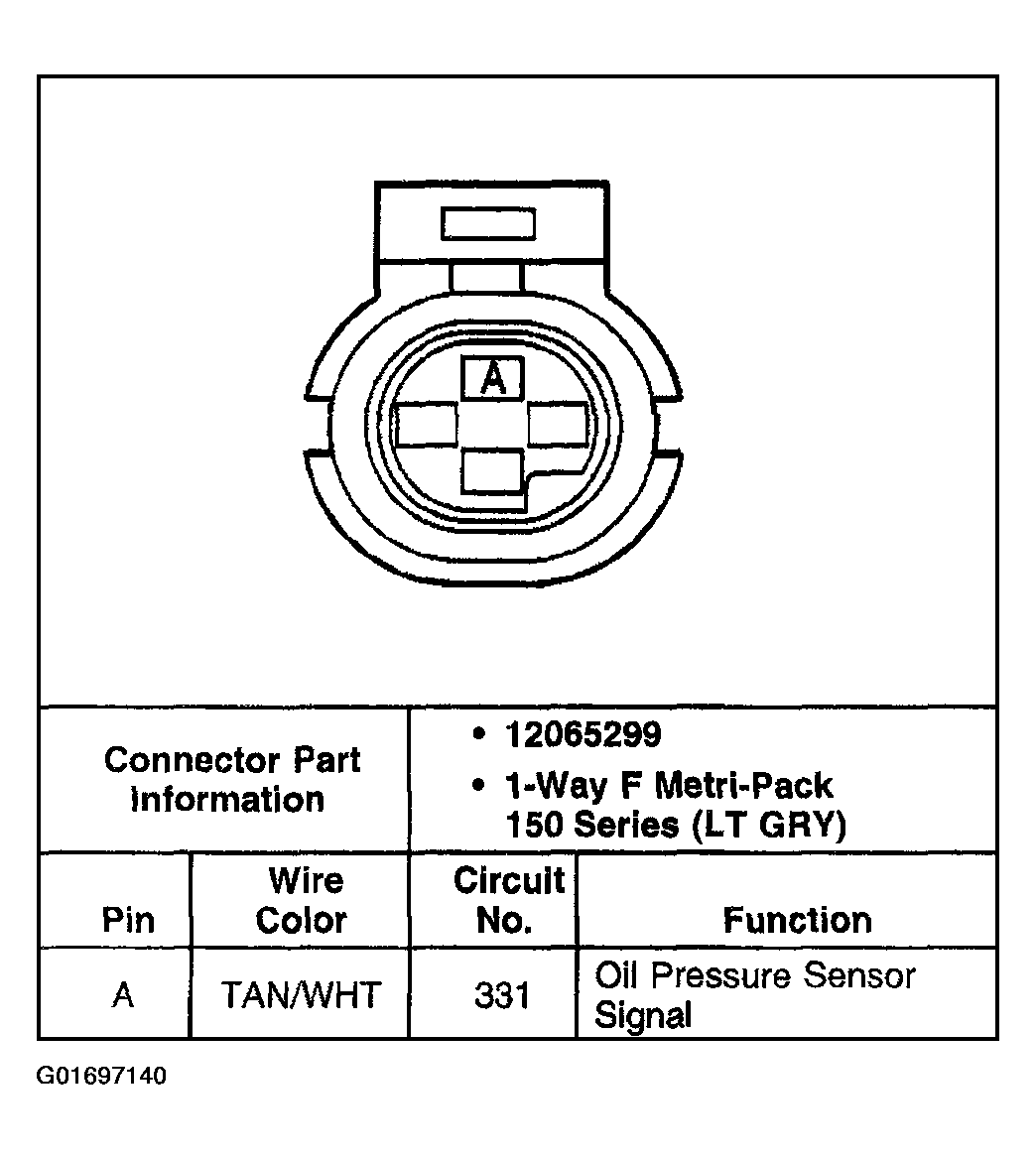

Fig 5: Engine Oil Pressure (EOP) Switch

G01697140

Courtesy of GENERAL MOTORS CORP.

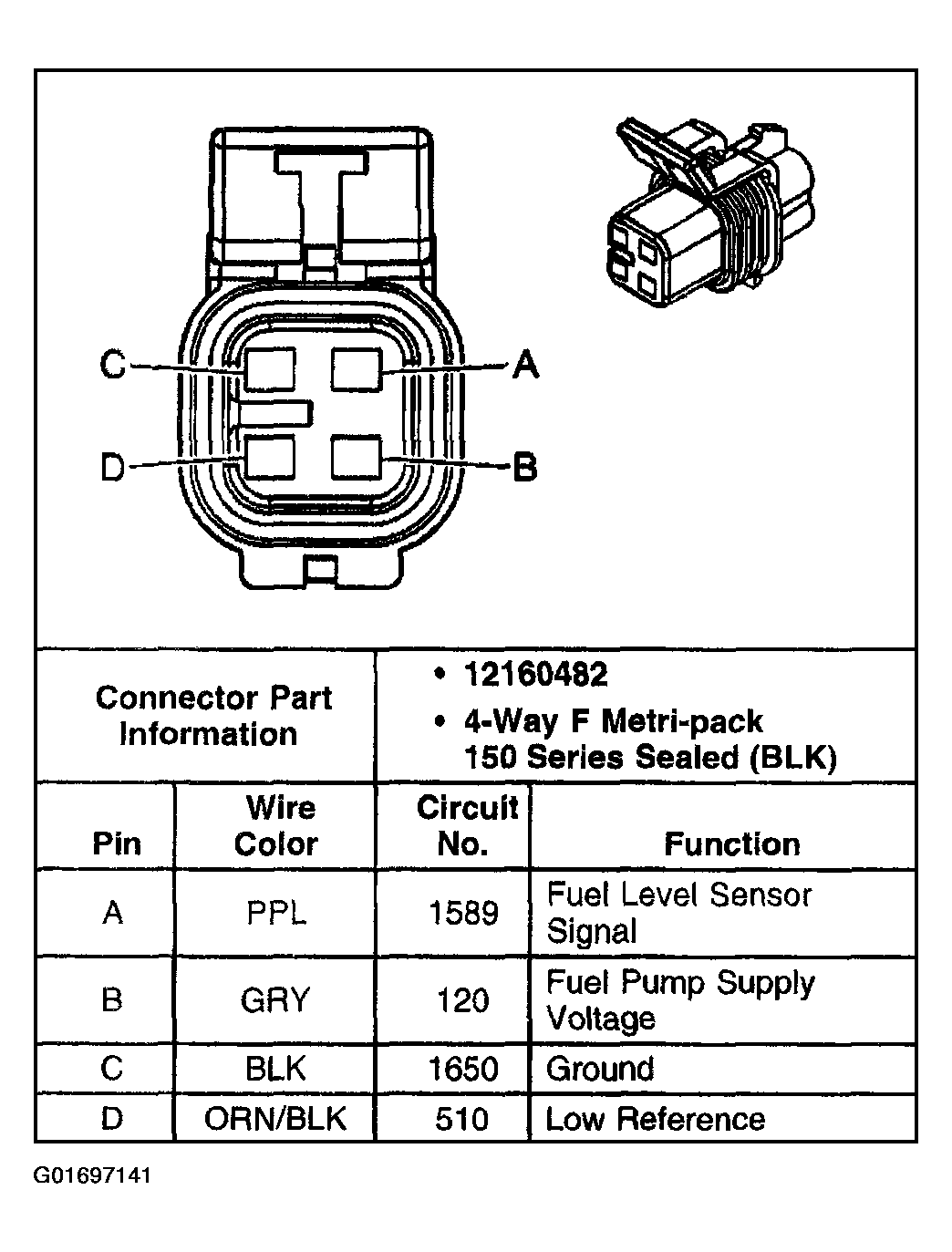

Fig 6: Fuel Pump/Sender - Primary

G01697141

Courtesy of GENERAL MOTORS CORP.

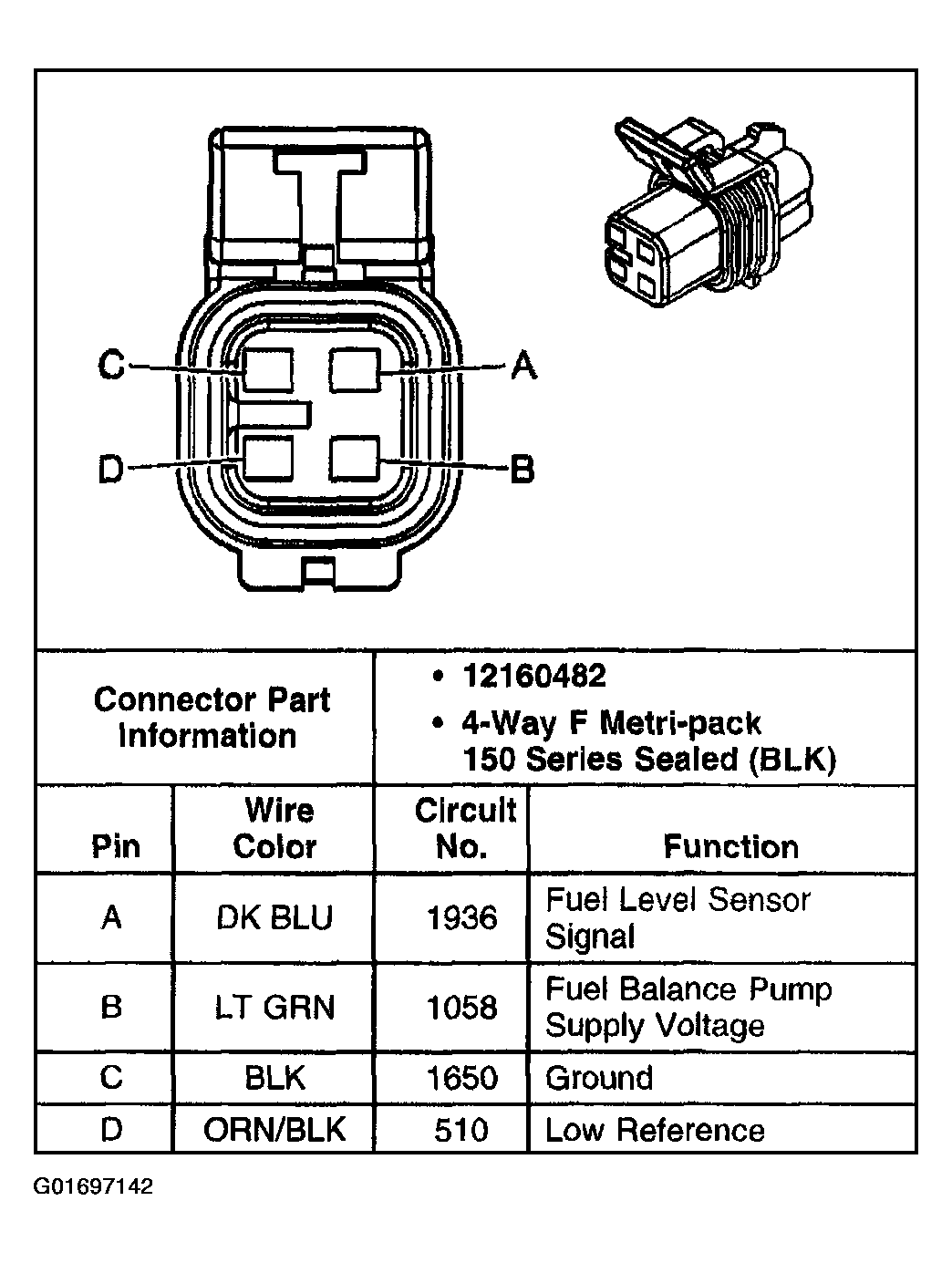

Fig 7: Fuel Pump/Sender - Secondary

G01697142

Courtesy of GENERAL MOTORS CORP.

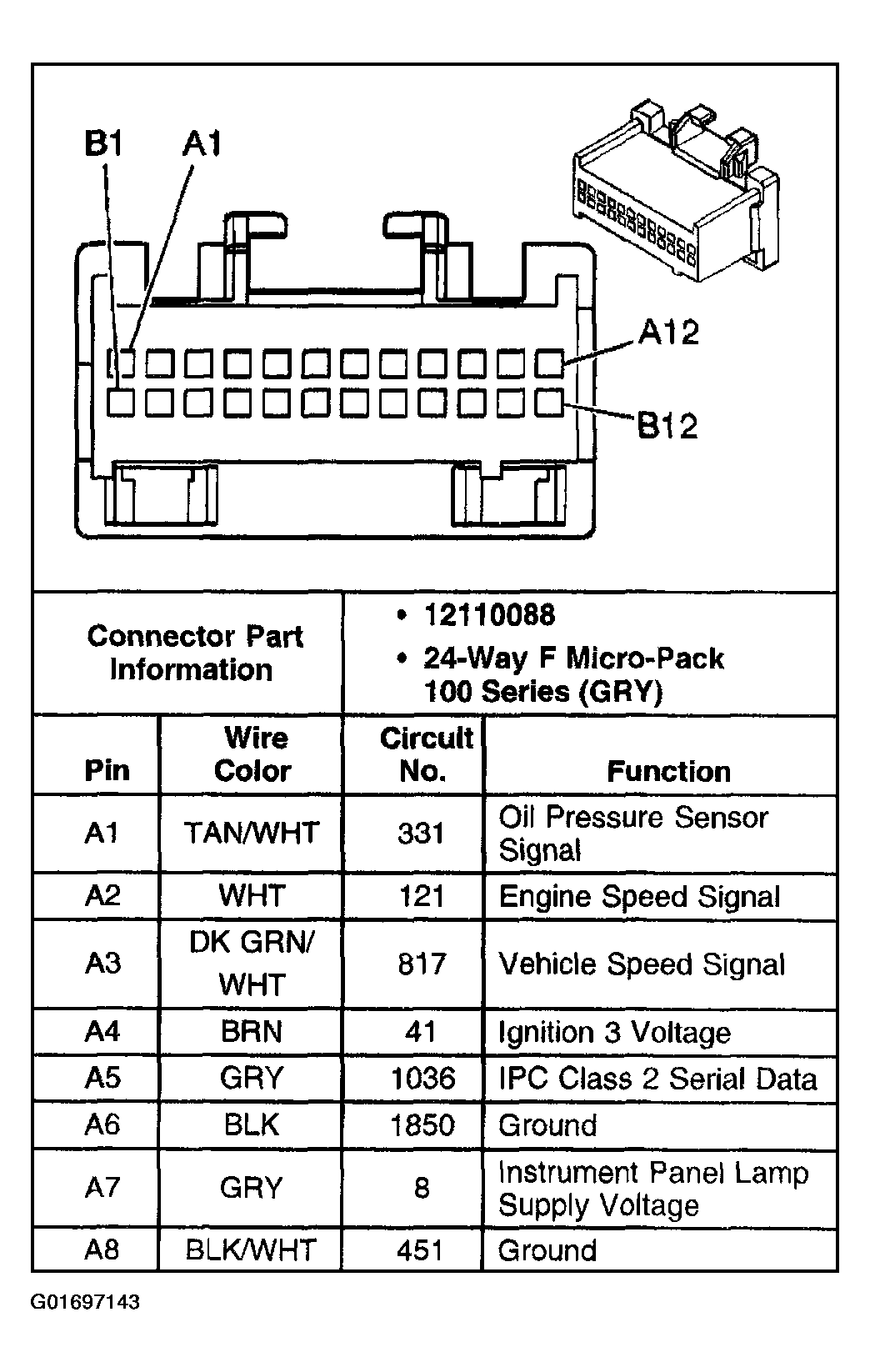

Fig 8: Instrument Panel Cluster (IPC)

G01697143

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Connector Pins

G01697144

Courtesy of GENERAL MOTORS CORP.
