Installation (Using Old Switch)

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

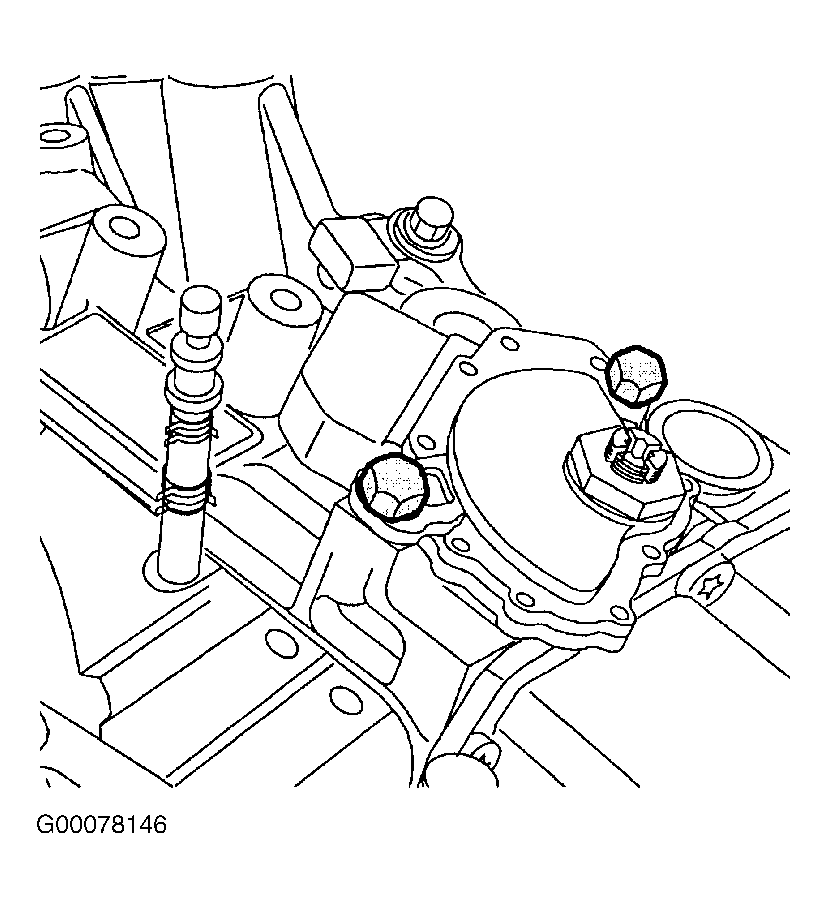

  1. Install transaxle range switch to the manual valve lever. Install transaxle range switch bolts, then hand tighten. Install flat washer, lock tab washer and nut, then tighten to specification. See Figure . Place the manual valve lever in Neutral position.
  2. Install Transaxle Range Switch Alignment Tool (J45404) and align tool pointer to the neutral basic line. See Figure . Remove alignment tool. Tighten the transaxle range switch bolts to specification. See TORQUE SPECIFICATIONS  .
  3. Move lock washer into place by bending tabs up with pliers. Connect electrical harness to transaxle range switch. Install transaxle range switch lever and nut. Tighten transaxle range switch nut to specification. Install control cable assembly to transaxle range switch lever.
  4. Install battery tray bracket. Position battery tray bracket and tighten screws to specification. Install battery cooling box. See BATTERY COOLING BOX  .
  5. Install battery. Insert battery and tighten battery hold-down screw to specifications. Connect positive battery cable to battery and tighten to specification. Connect negative battery cable to battery and tighten to specification. Install battery cooling box cover and tighten screws to specification.
  6. Reprogram radio stations. Adjust transaxle range switch. See TRANSAXLE RANGE SWITCH  under ADJUSTMENTS. After adjusting switch, verify engine starts only in Park or Neutral position. If engine starts in any other position, readjust switch.
