Transaxle Range Switch

WARNING: This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove control cable assembly from transaxle range switch lever. See Fig 1 . Loosen transaxle range switch bolts. See Fig 3 . Remove control cable assembly from transaxle range switch lever. Loosen transaxle range switch bolts.
  2. Install Transaxle Range Switch Alignment tool (J45404) and align the Transaxle Range Switch Alignment tool pointer to the neutral basic line. See Fig 2 . Install transaxle range switch lever and nut, then tighten to specification. See TORQUE SPECIFICATIONS  .
  3. Remove alignment tool. Tighten transaxle range switch bolts to specification. After adjusting switch, verify engine only starts in Park or Neutral. If engine starts in any other position, readjust switch.
Fig 1: Removing & Installing Control Cable
G00078144Courtesy of GENERAL MOTORS CORP.

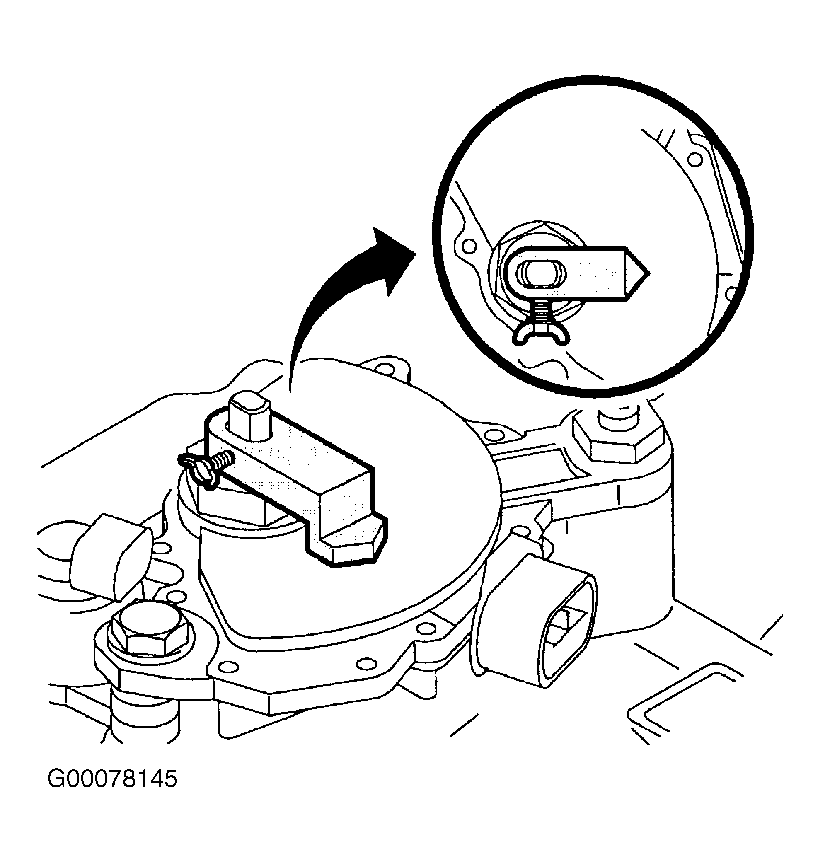

Fig 2: Identifying Transaxle Range Switch Alignment Tool
G00078145Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Transaxle Range Switch Bolts
G00078146Courtesy of GENERAL MOTORS CORP.
