Linear Shift Assembly - Disassemble - Off - Vehicle

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the upper and lower trim covers. Refer to Steering Column Trim Covers - Disassemble - Off Vehicle .
  3. Remove the following:
    1. Shift lever screw (3)
    2. Shift lever assembly (4)
    3. Shift lever seal (2)
      Fig 1: Shift Lever
      G01571899Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not use excessive force when removing the automatic transmission shift lock control from the steering column. Using excessive force may cause damage to the automatic transmission shift lock control and/or the steering column.
  4. Remove the automatic transmission shift lock control in the following way:
    1. Put the shift lever clevis into the NEUTRAL position.
    2. Use a small screwdriver to pry the automatic transmission shift lock control away from the steering column jacket assembly and the cable shift cam assembly.
      Fig 2: Shift Lock Control
      G01571900Courtesy of GENERAL MOTORS CORP.
  5. Remove and discard 3 flat head 6 lobed socket tap screws from the linear shift assembly.
  6. Remove the linear shift assembly.

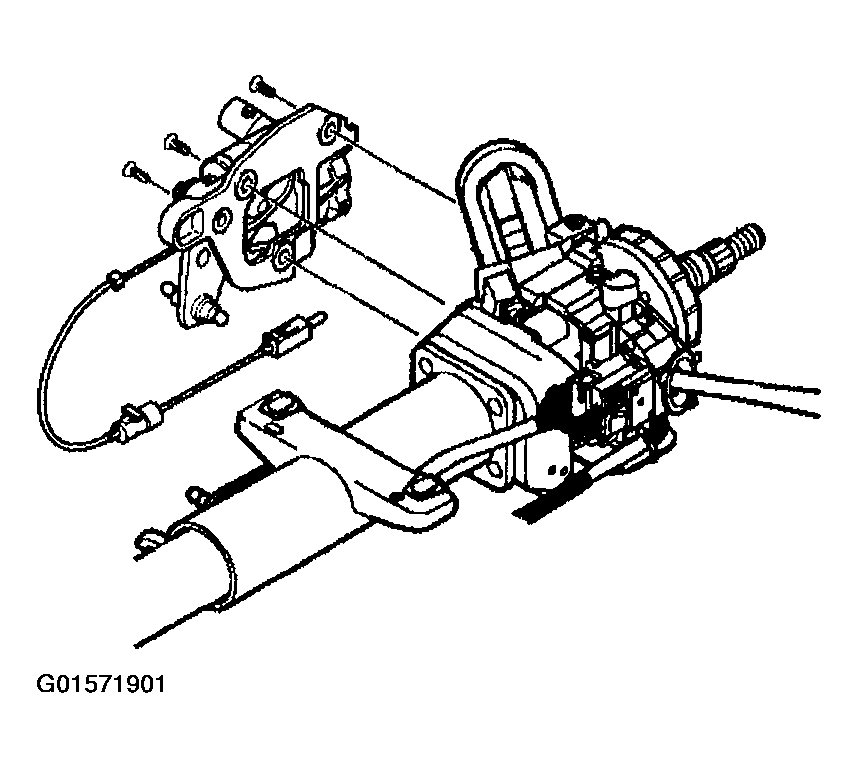

    Fig 3: Linear Shift Assembly
    G01571901Courtesy of GENERAL MOTORS CORP.
