Steering Column Trim Covers - Disassemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41352 Steering Column Holding Fixture

Disable the inflatable restraint steering wheel module. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the steering column. Refer to Steering Column Replacement .
Put the steering column into J 41352 .
Check the steering column for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle .

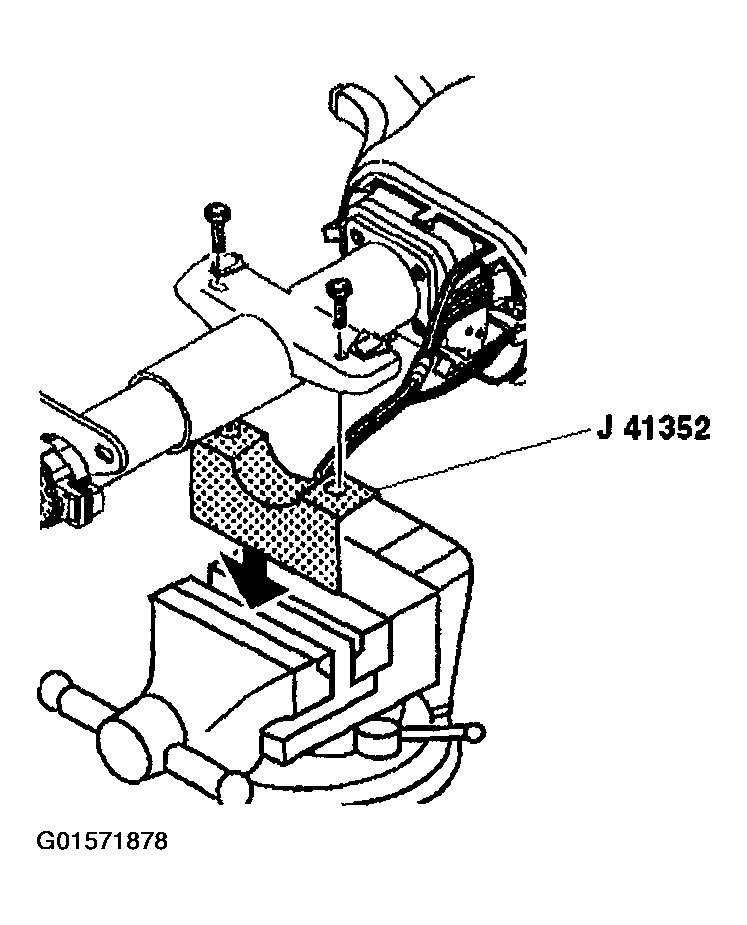

Fig 1: Steering Column Holding Fixture
Courtesy of GENERAL MOTORS CORP.

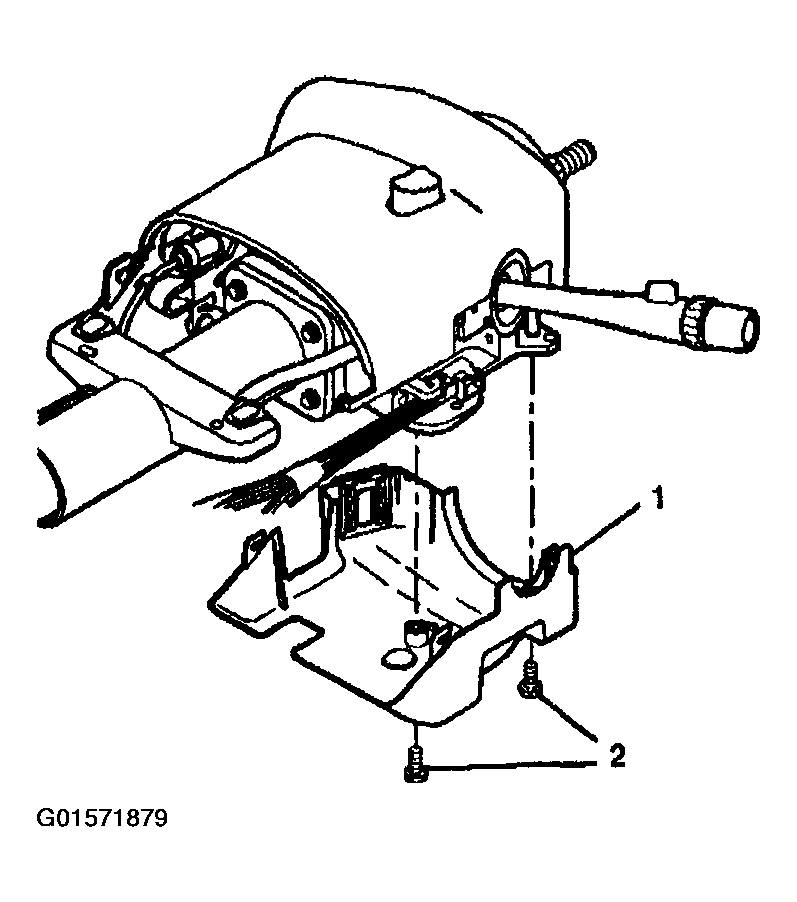

Remove the 2 pan head tapping screws (2) from the lower trim cover (1).

Fig 2: Steering Column Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.

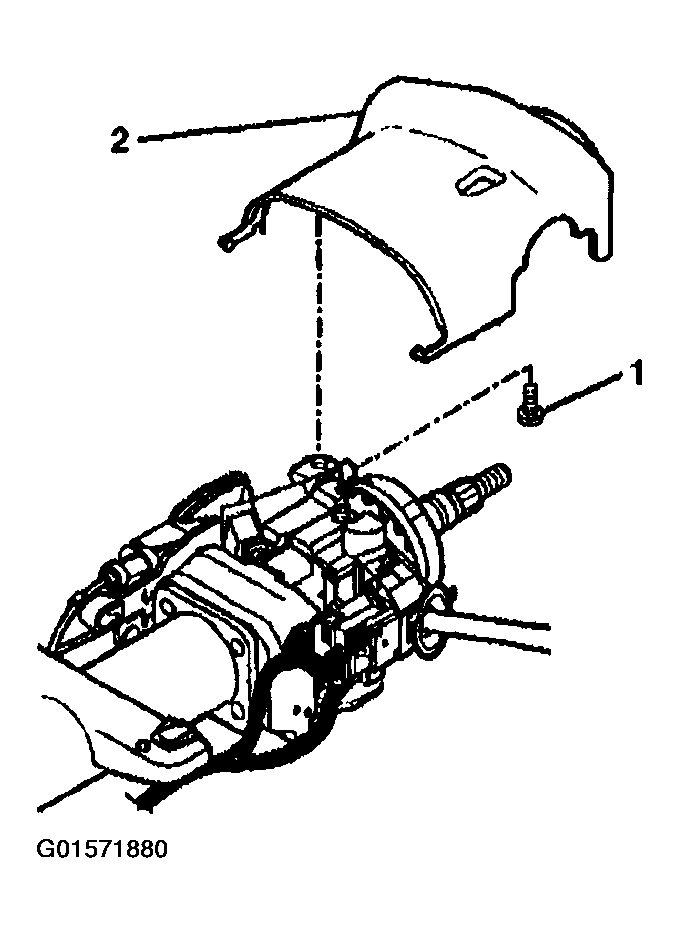

Remove the TORX® head screw (1) from the lower trim cover (2).

Fig 3: Steering Column Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.
