Park Brake Cable: Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the park brake cables over the fuel tank assembly.
  2. Pull the park brake cable through the frame toward the outside of the vehicle.
  3. Install the park brake cable retaining nuts to the underbody mounting studs. Tighten the park brake cable retaining nuts. See TORQUE SPECIFICATIONS  .
  4. Raise the fuel tank the fuel tank to allow access to the rear park brake cable retainer above the fuel tank.
  5. Install the rear support bracket for the fuel tank.
  6. Remove the pole jack and the block of wood from the fuel tank.

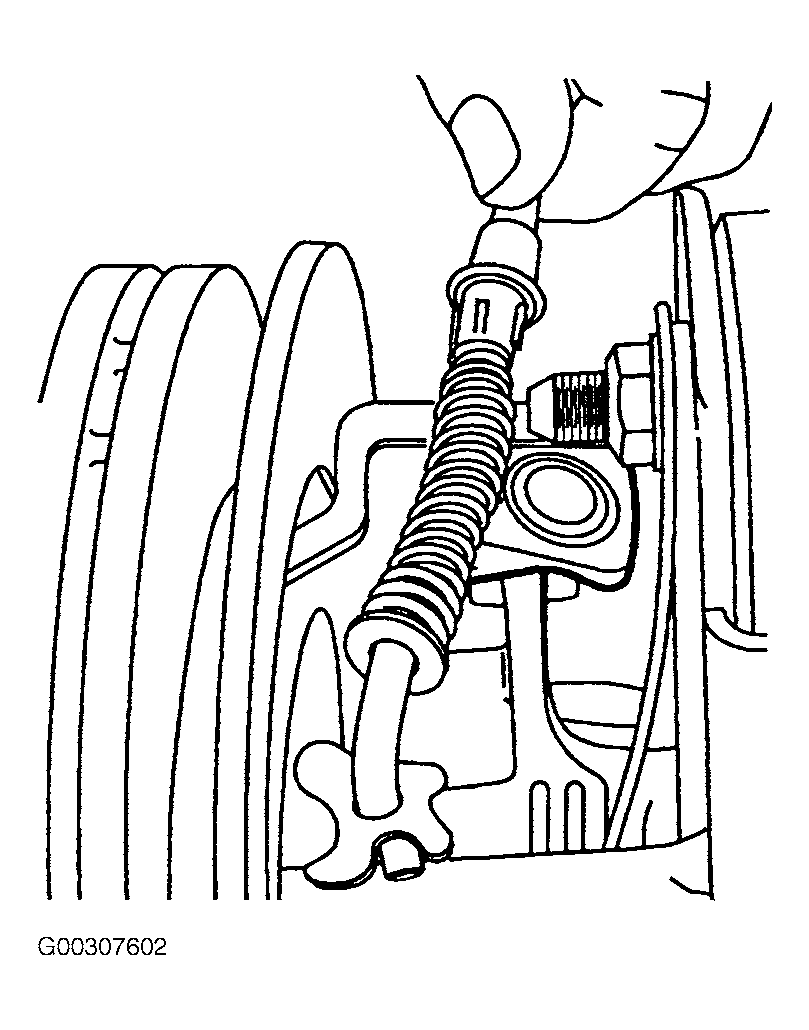

  7. Install the park brake cable on the actuator. See Figure .
  8. Depress the retaining clips for the park brake cable.
  9. Install the park brake retainer to the frame.
  10. Install the park brake retaining bracket bolt in the frame. Tighten park brake cable retaining bracket bolt. See TORQUE SPECIFICATIONS  .
  11. Install the park brake cable to the park brake cable retainers.
  12. Install the shield for the fuel tank.
  13. Install the park brake cables to the retainer.
  14. Install the park brake cables to the park brake equalizer.
  15. Install the rear propeller shaft. See appropriate AXLE SHAFTS article in DRIVE AXLES.
  16. Lower the vehicle.
  17. Enable the park brake automatic adjuster. See PARK BRAKE CABLE AUTOMATIC ADJUSTER  under ADJUSTMENTS & INSPECTIONS.
  18. Test the park brake operation.
  19. Adjust the park brake cables. See PARK BRAKE ADJUSTMENT  under ADJUSTMENTS & INSPECTIONS.

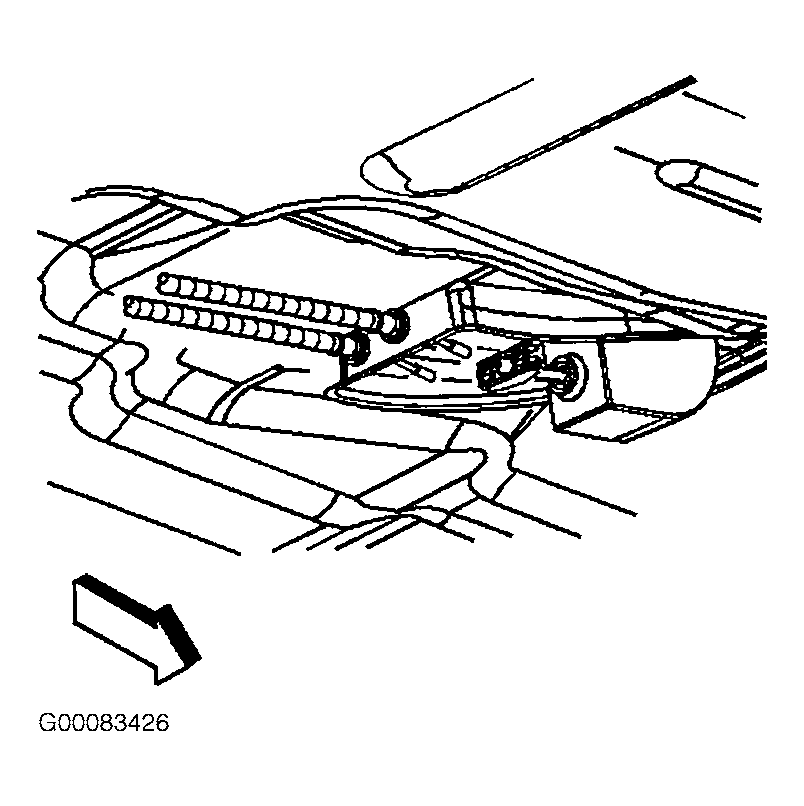

    Fig 1: Removal of Park Brake Cables From Parking Brake Equalizer
    G00083426Courtesy of GENERAL MOTORS CORP.

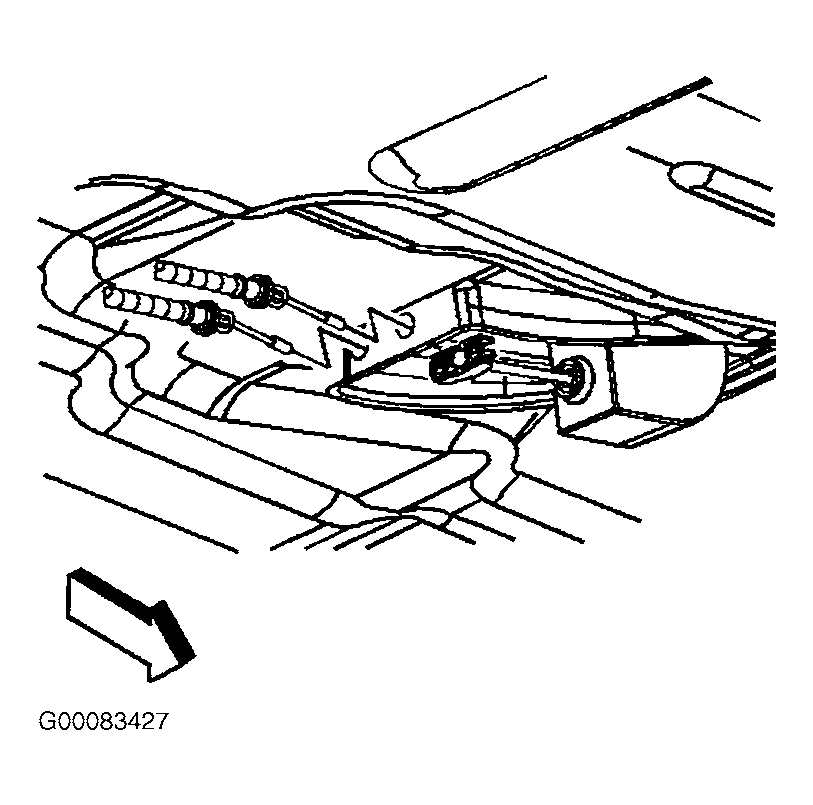

    Fig 2: Removal Of Park Brake Cables From Retainer
    G00083427Courtesy of GENERAL MOTORS CORP.

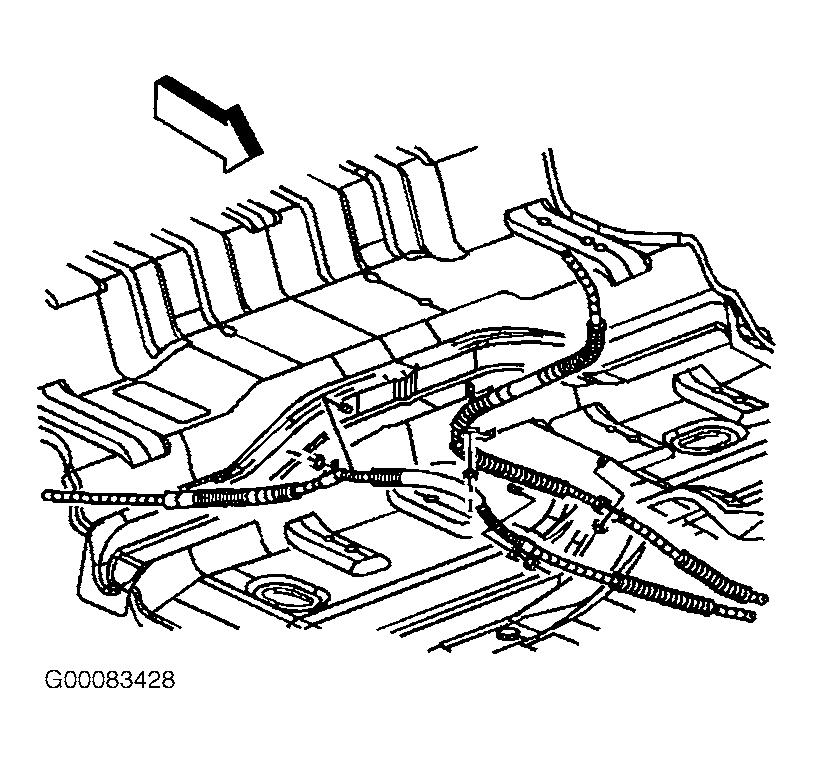

    Fig 3: Removal Of Retaining Nuts From Underbody Mounting Studs
    G00083428Courtesy of GENERAL MOTORS CORP.

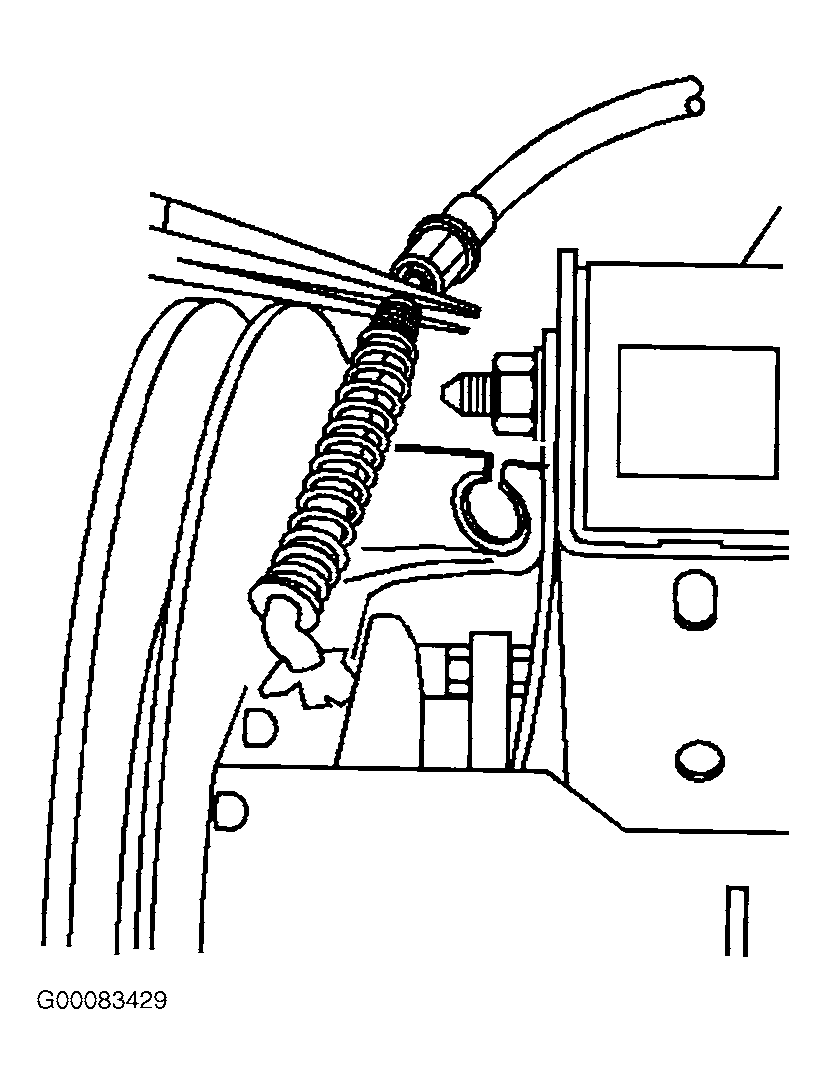

    Fig 4: Depressing Retaining Clips For Parking Brake Cable
    G00083429Courtesy of GENERAL MOTORS CORP.
