Steering Column Lock Cylinder Set - Assemble - Off Vehicle (Column Shift)
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

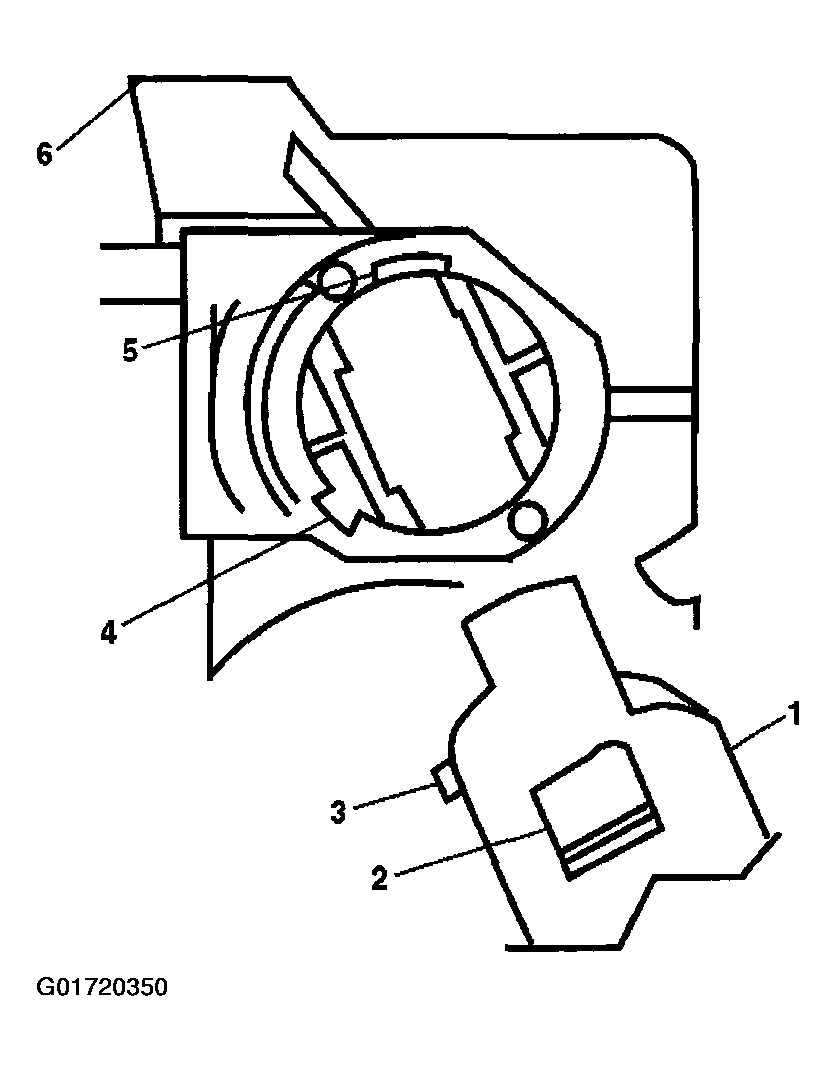

- Insert the key into the steering column lock cylinder set (1).
- Line up the locking tab (2) and the positioning tab (3) of the steering column lock cylinder set with the locking tab slot (5) and the positioning tab slot (4) in the electronic lock module assembly (6).
- Push the steering column lock cylinder set (1) into the electronic lock module assembly (6).
- Rotate the steering column lock cylinder set (1) in the electronic lock module assembly (6) into all positions.
- Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle (Column Shift) or Steering Column Trim Covers - Assemble - Off Vehicle (Floor Shift) .
