Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the tire and wheel.
  3. Remove the rear wheel bearing/hub assembly. Refer to WHEEL BEARING/HUB REPLACEMENT - REAR (DISC BRAKES)  or WHEEL BEARING/HUB REPLACEMENT - REAR (DRUM BRAKES)  .
  4. Separate the backing plate from the rear hub. Refer to Disc Brake Backing Plate Replacement - Rear in DISC & DRUM .
  5. Use the J-6627-A in order to extract the stud (1) from the hub (2).

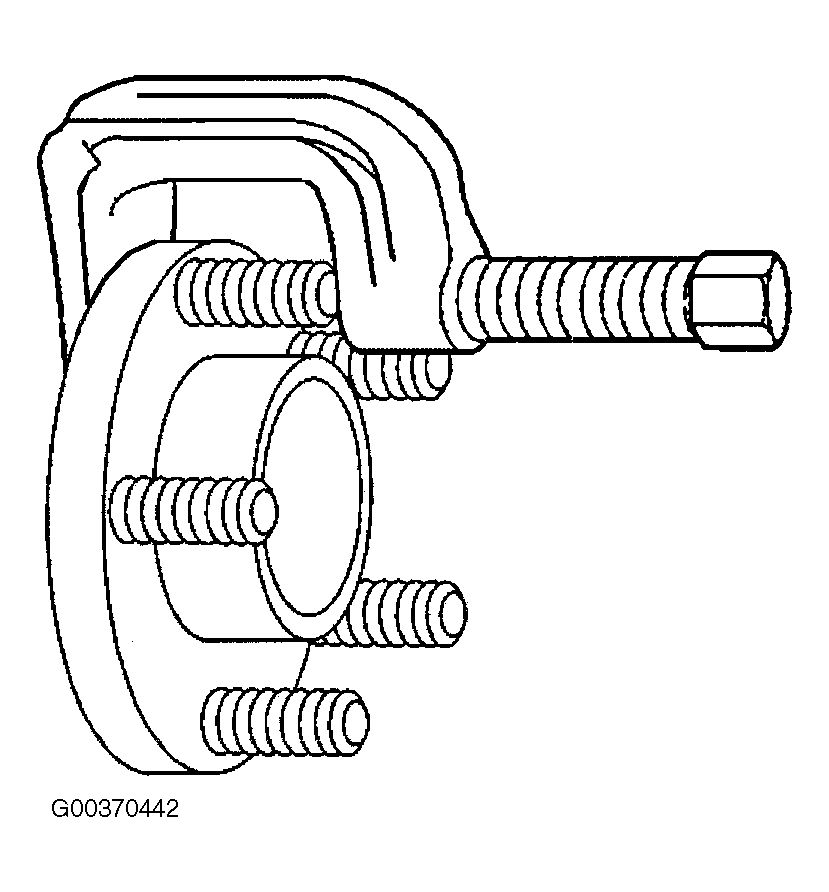

    Fig 1: Removing Wheel Stud
    G00370442Courtesy of GENERAL MOTORS CORP.
