Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Use a utility stand in order to support the control arm forward of the coil spring.
  3. Remove the control arm bolts from the rear axle. Refer to REAR AXLE REPLACEMENT .
  4. Use the utility stand in order to lower the rear axle enough to gain access to the control arm bushing.
  5. Mark the orientation of the control arm bushing in the lower control arm.

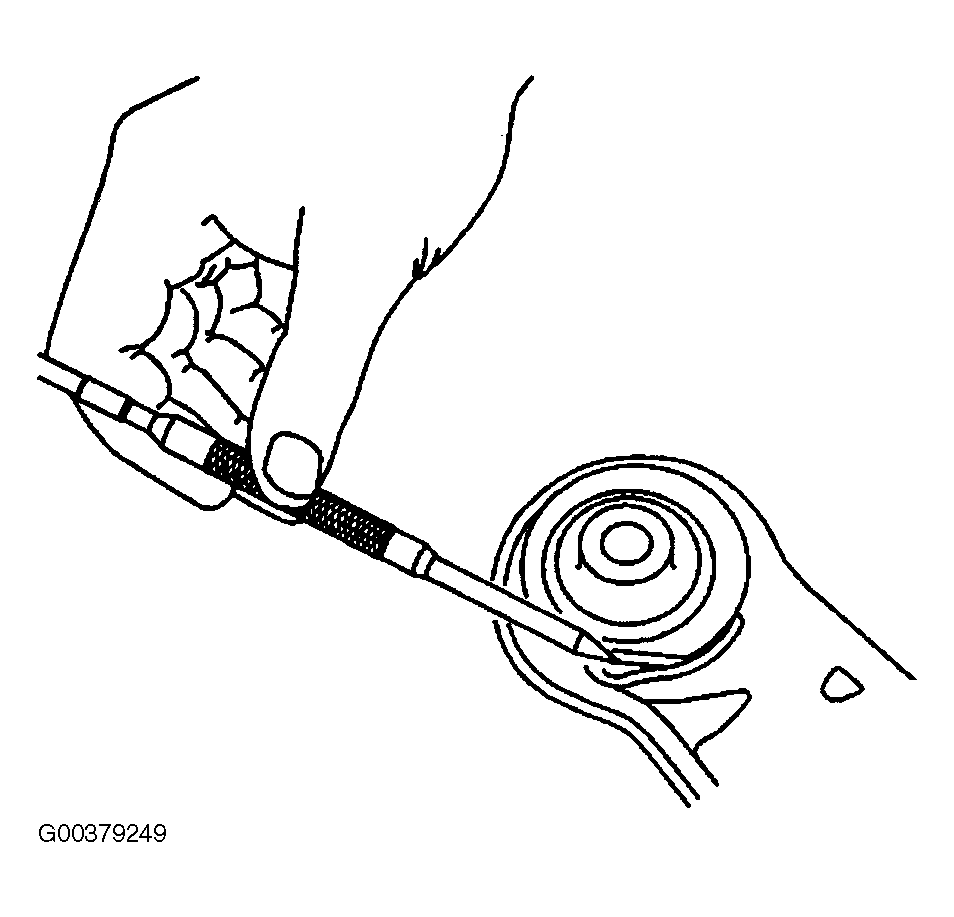

    Fig 1: Orientation Of Control Arm Bushing In Lower Control Arm
    G00379249Courtesy of GENERAL MOTORS CORP.
  6. Use the J 28685 and the J 9519-E in order to remove the control arm bushing. See SPECIAL TOOLS .

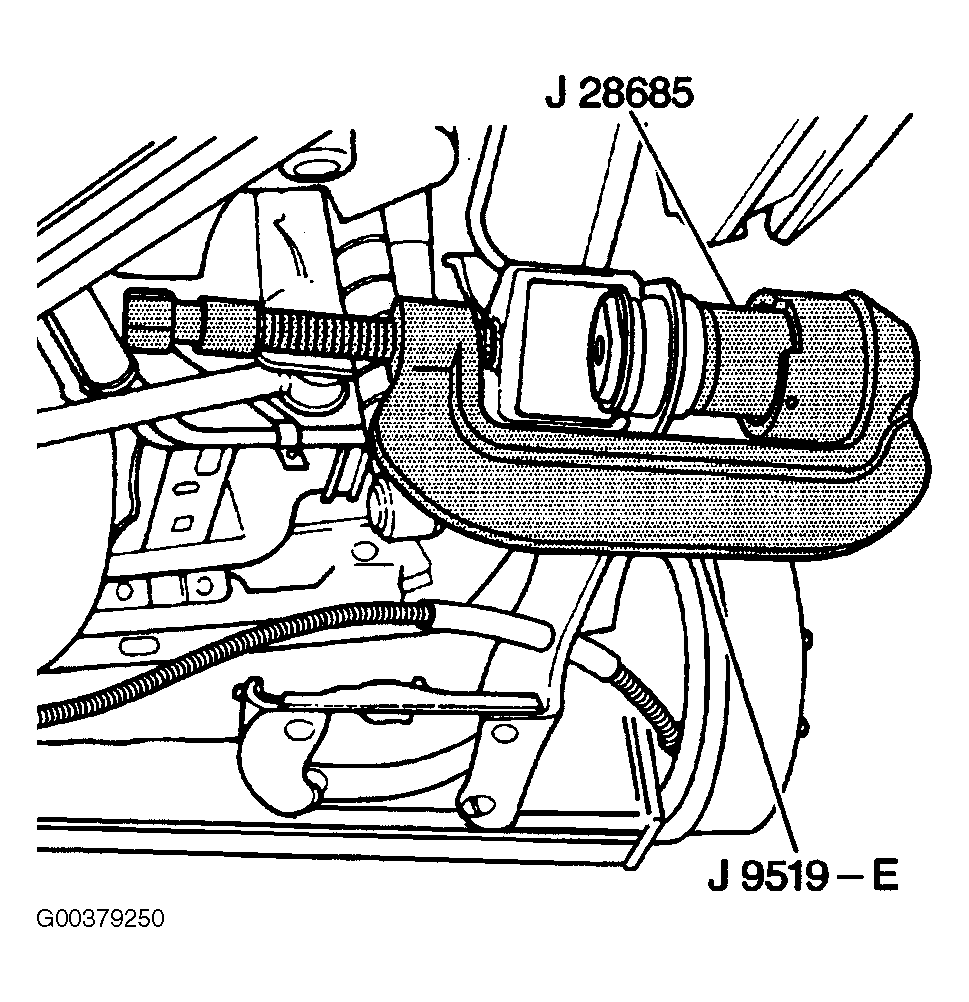

    Fig 2: Removing Control Arm Bushing
    G00379250Courtesy of GENERAL MOTORS CORP.
