Special Tools

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Ball Joint Remover

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Ball Joint Remover/Installer

Courtesy of GENERAL MOTORS CORP.

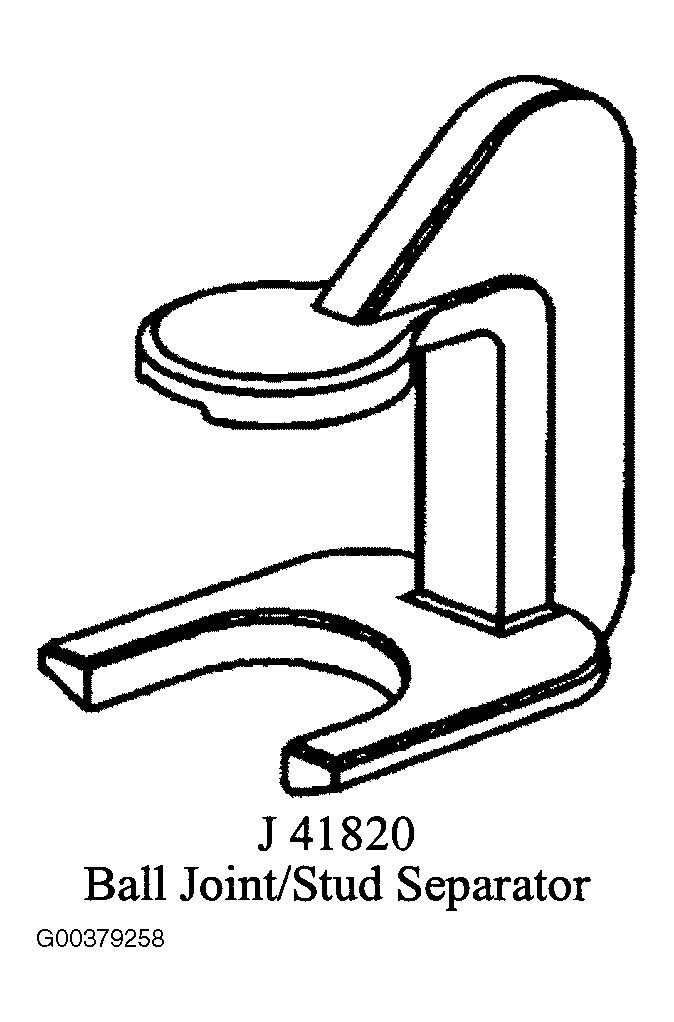

Fig 3: Identifying Ball Joint/Stud Separator

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Control Arm Bushing Receiver

Courtesy of GENERAL MOTORS CORP.

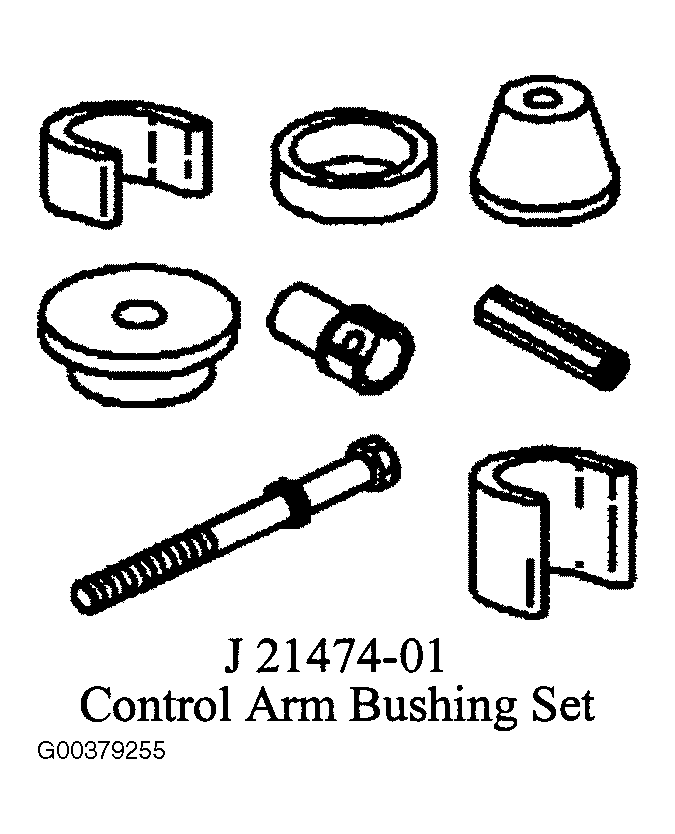

Fig 5: Identifying Control Arm Bushing Set

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Rear Suspension Bushing Remover/Installer

Courtesy of GENERAL MOTORS CORP.
