Wheel Hub, Steering Knuckle: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To remove the axle shaft, it is only necessary to remove the steering knuckle and hub assembly, not disassemble it. Disassemble the steering knuckle/hub assembly only if the components are damaged or worn out.

Remove in the order indicated in the illustration. See Fig 1 .
Install in reverse order of removal. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .
After installation, inspect the front wheel alignment and adjust it if necessary.

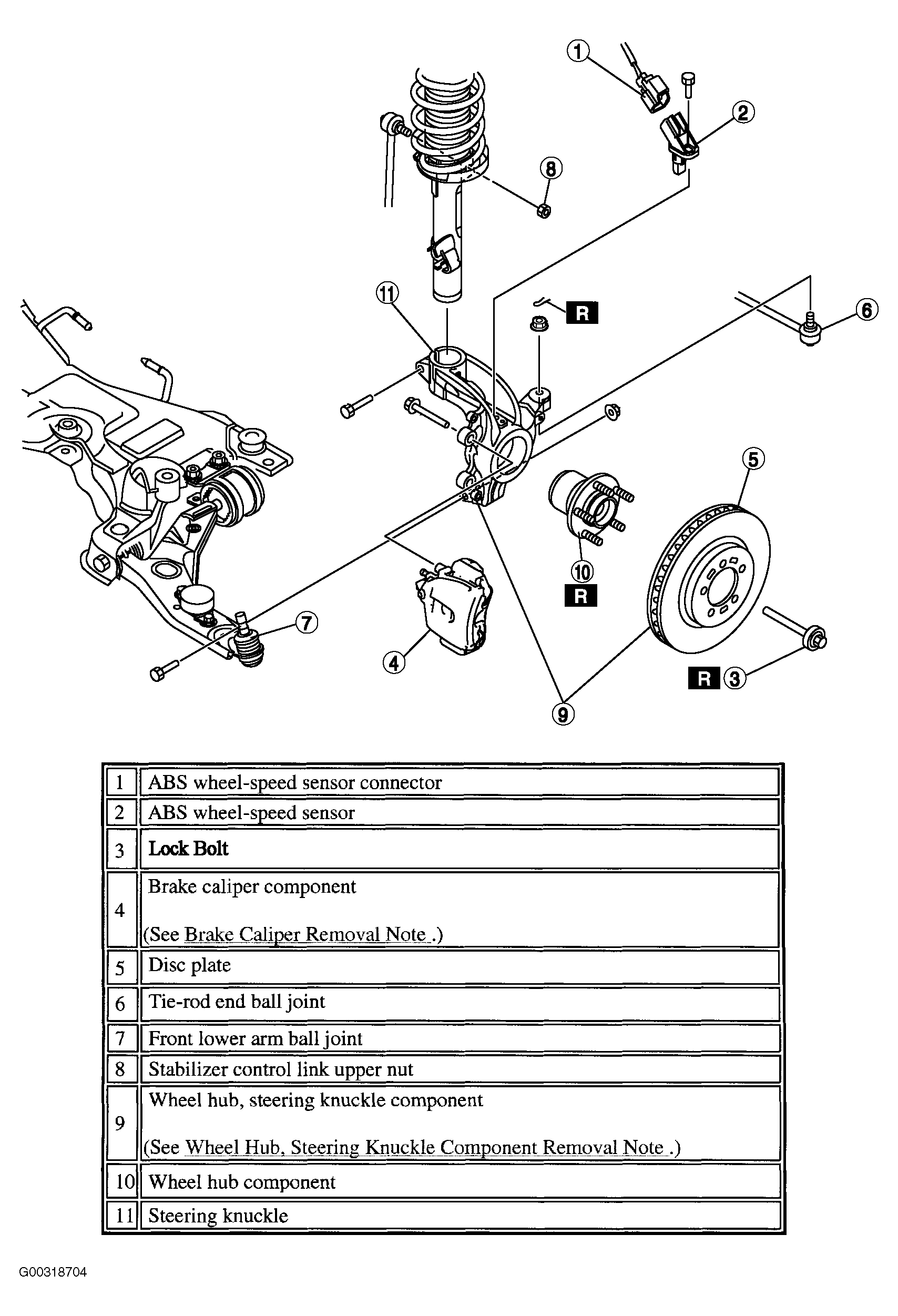

Fig 1: Exploded View Wheel Hub & Steering Knuckle

Courtesy of MAZDA MOTORS CORP.
