Park Brake Pedal Assembly: Installation

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

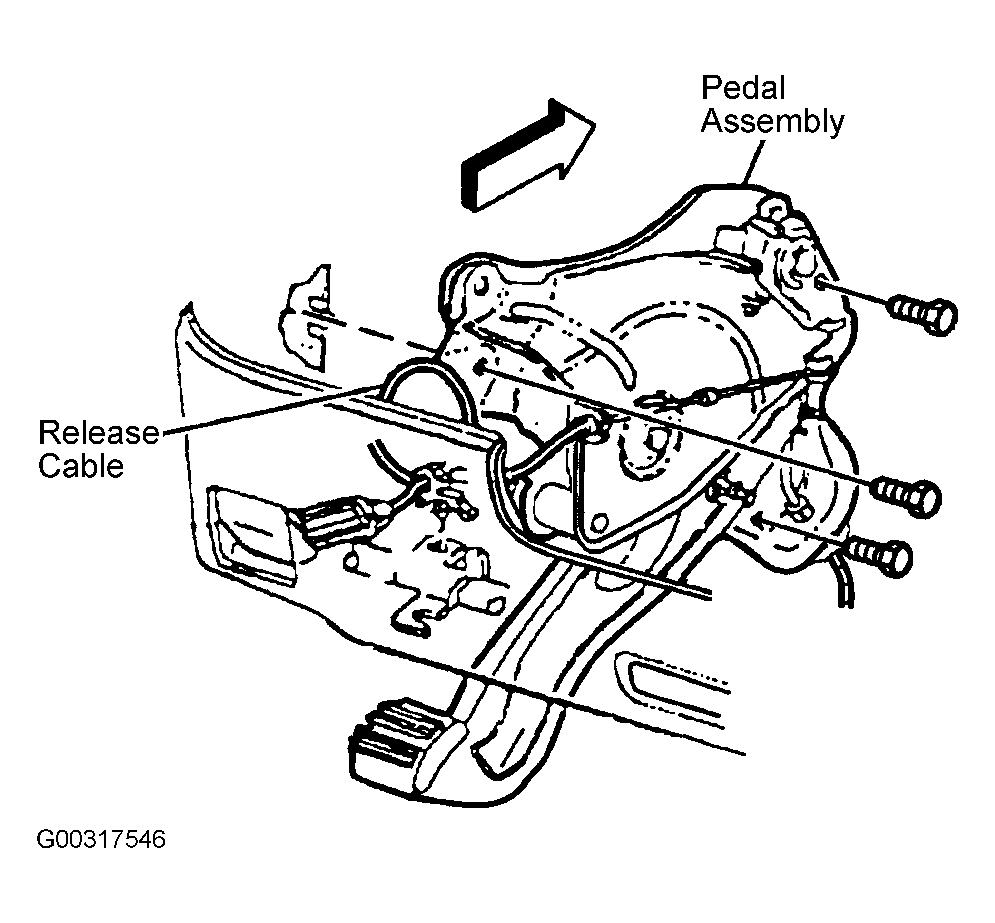

  1. Install the pedal assembly.
  2. Install the 3 bolts. See Figure . Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
  3. Install the release handle. See Figure .
  4. Connect the release cable.
  5. Connect the connector to the park brake switch.
  6. Adjust the park brake. See PARK BRAKE ADJUSTMENT  under ADJUSTMENTS & INSPECTION.
