Vent Hose Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

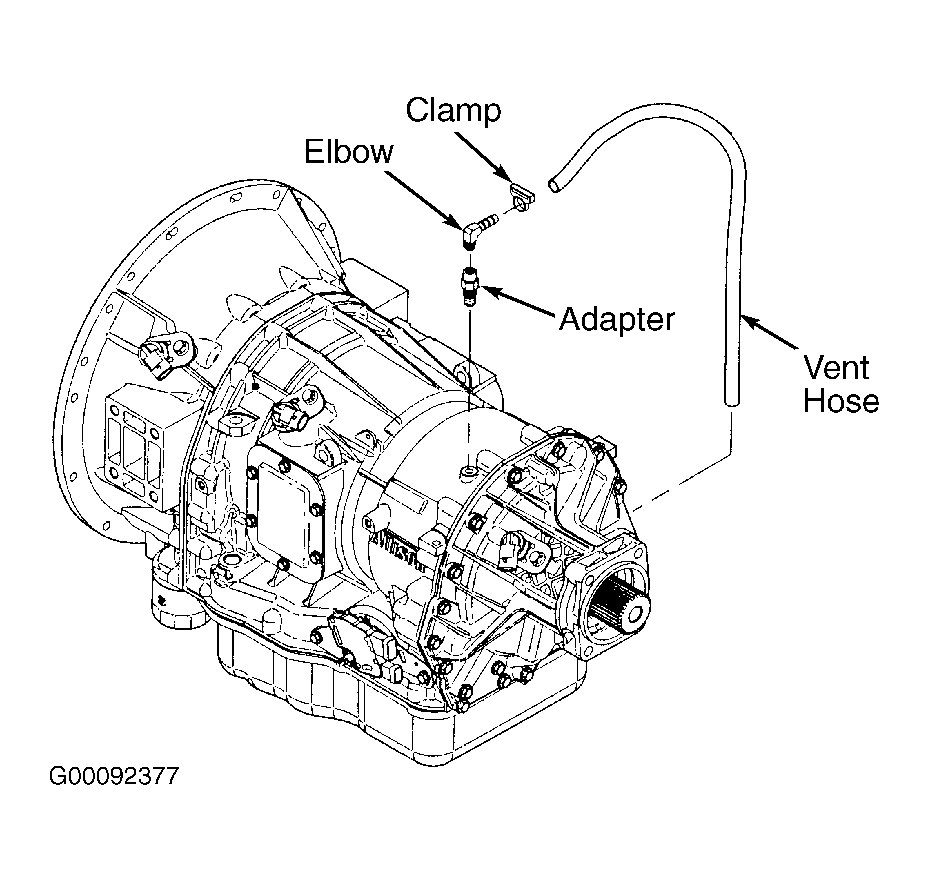

Install breather adapter. Tighten breather adapter until snug. Install and tighten elbow until snug. Align elbow as noted when removed. See Figure. Install vent hose and clamp onto elbow. Remove bolt from rear housing holding vent hose clamp. Install clamp and hose, then reinstall and tighten bolt to specification. See TORQUE SPECIFICATIONS .
