With Park Brake Cable Bracket

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW rear cover gasket onto the main housing. Align rear cover on main housing dowel pin and park pawl pin. Install rear cover module. If present, turn output tone wheel through the output speed sensor hole. Ensure output shaft turns with tone wheel.
  2. Hand install 4 rear cover bolts (2) and evenly draw down rear cover bolts until rear cover seats on main housing. See Fig 1.
  3. Install bracket onto rear cover. Install 3 bolts (1). See Fig 1. Then install remaining 9 bolts (3). Tighten bolts to specification. See TORQUE SPECIFICATIONS .

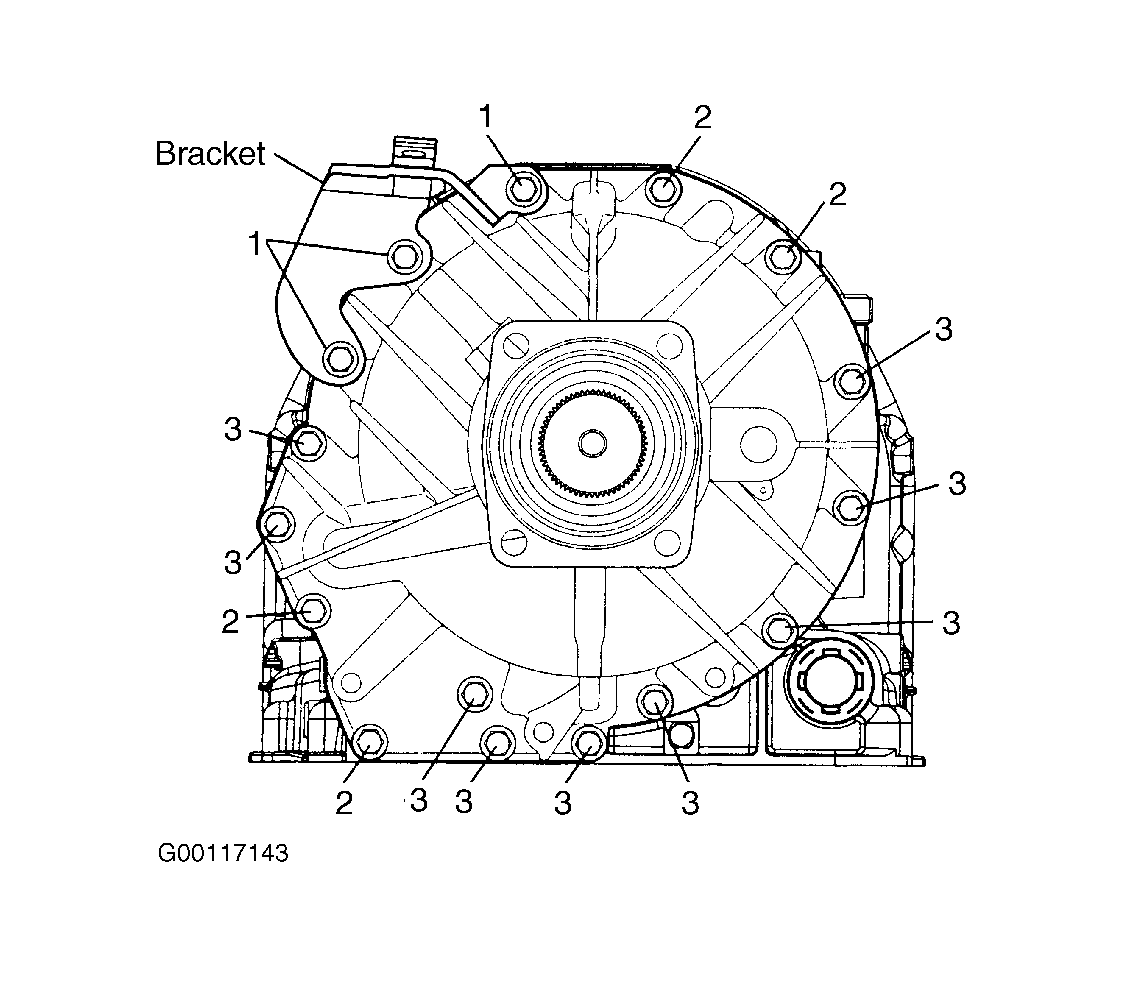

Fig 1: Rear Cover Bolt Identification (With Park Brake Cable Bracket)
G00117143Courtesy of GENERAL MOTORS CORP.
