C5 Clutch Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, 2003 Chevrolet Cab & Chassis Silverado, and 2002 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.

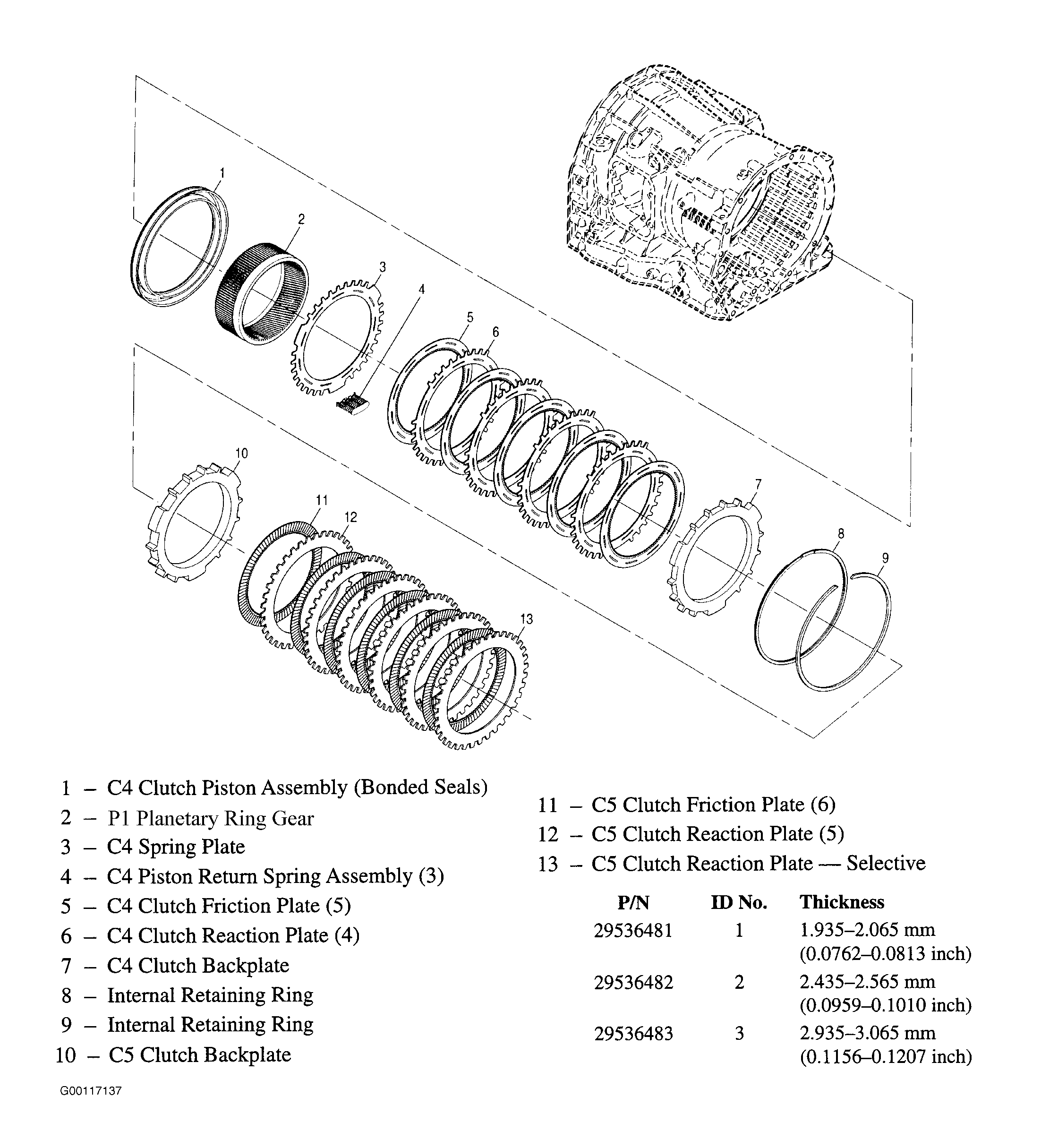

Starting with a C5 clutch friction plate, alternately install 6 friction plates and 5 C5 clutch reaction plates. Then install the selective C5 clutch reaction plate. See Figure.
